SECTION 4
APPLICATIONS
This chapter describes the application information for SLM-series DC electronic load module.
4.1
Local Sense Connections
Figure 4-1 illustrates a typical connection of the electronic load to the DC power supply. Local sensing
is used in applications where lead lengths are relatively short, or where load regulation is not critical.
The 5-digit voltage meter of the SLM-series DC electronic load measures the voltage of the DC INPUT
terminal automatically. Load leads should be bundled or tie-wrapped together to minimize inductance.

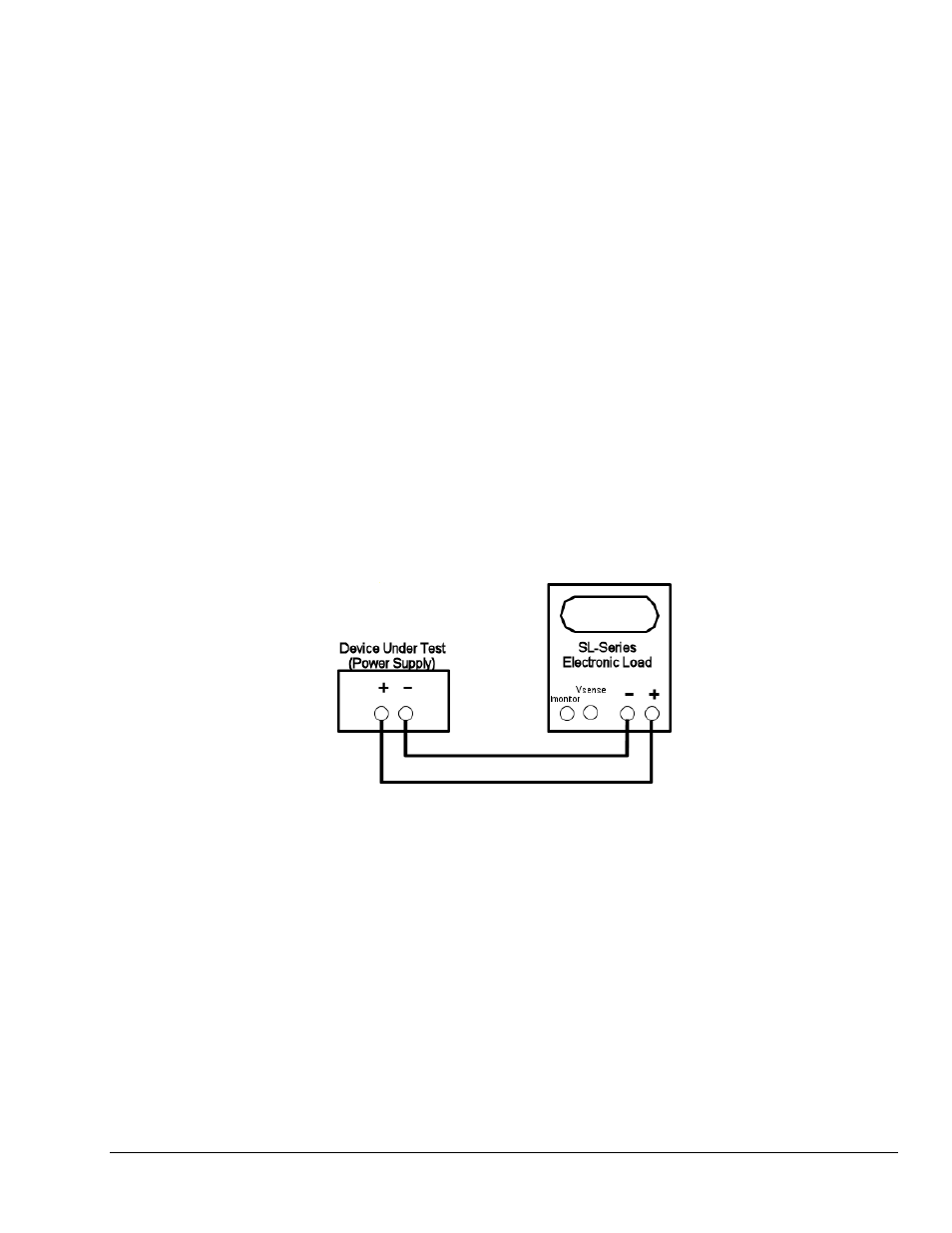

Figure 4-1 Local Voltage Sense Connections
