1.1 General Description
The SLM-series DC electronic load module is designed for test, evaluation and burn-in of DC power
supplies and batteries. This module must be operated in the SLM Electronic Load chassis, the
mainframe whose front panel allows operation of its 150 store/recall setups and which has a remote
control feature. All load modules in the mainframe simultaneously return to the previously stored
memory when a recall operation is performed on the mainframe.
1.1.1 Power Contours
The power contours of SLM-series DC electronic loads are shown in Figure 1-1 through Figure 1-5.
0
30
60
0 15 30
Current (A)
V
o
lt
age (V
)
10
5
2.5 5
0.5

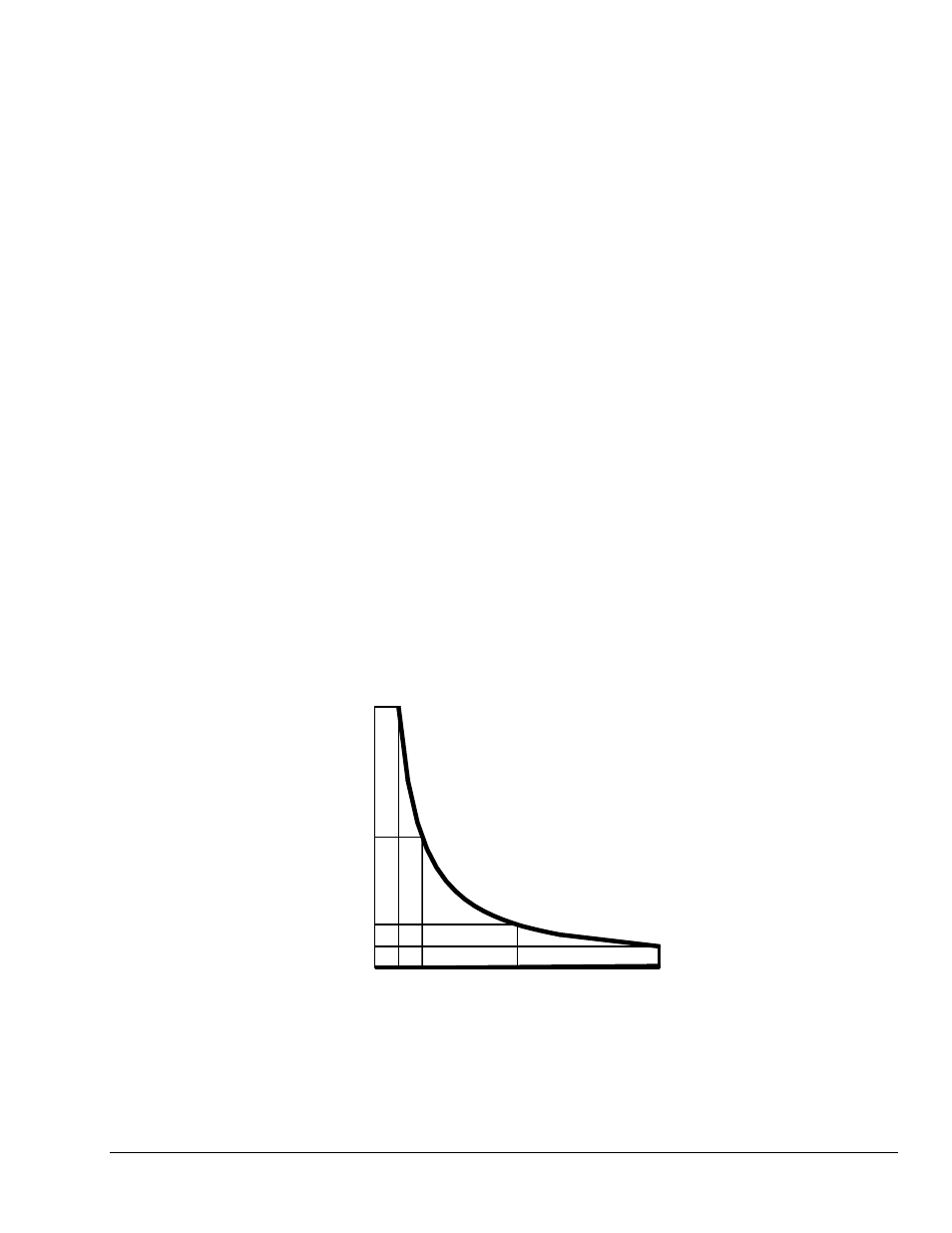

Figure 1-1 SLM-60-30-150 Power Contour
150W CONTOUR
