HDCVI Standalone DVR User’s Manual
25
Status indication
light
Status The light is on if device operates properly.
Power indication
light
PWR Power indication light
IR Receiver IR It is to receive the signal from the remote control.
2.2 Rear Panel
2.2.1 4/8-Channel Advanced 1080P 1.5U Series

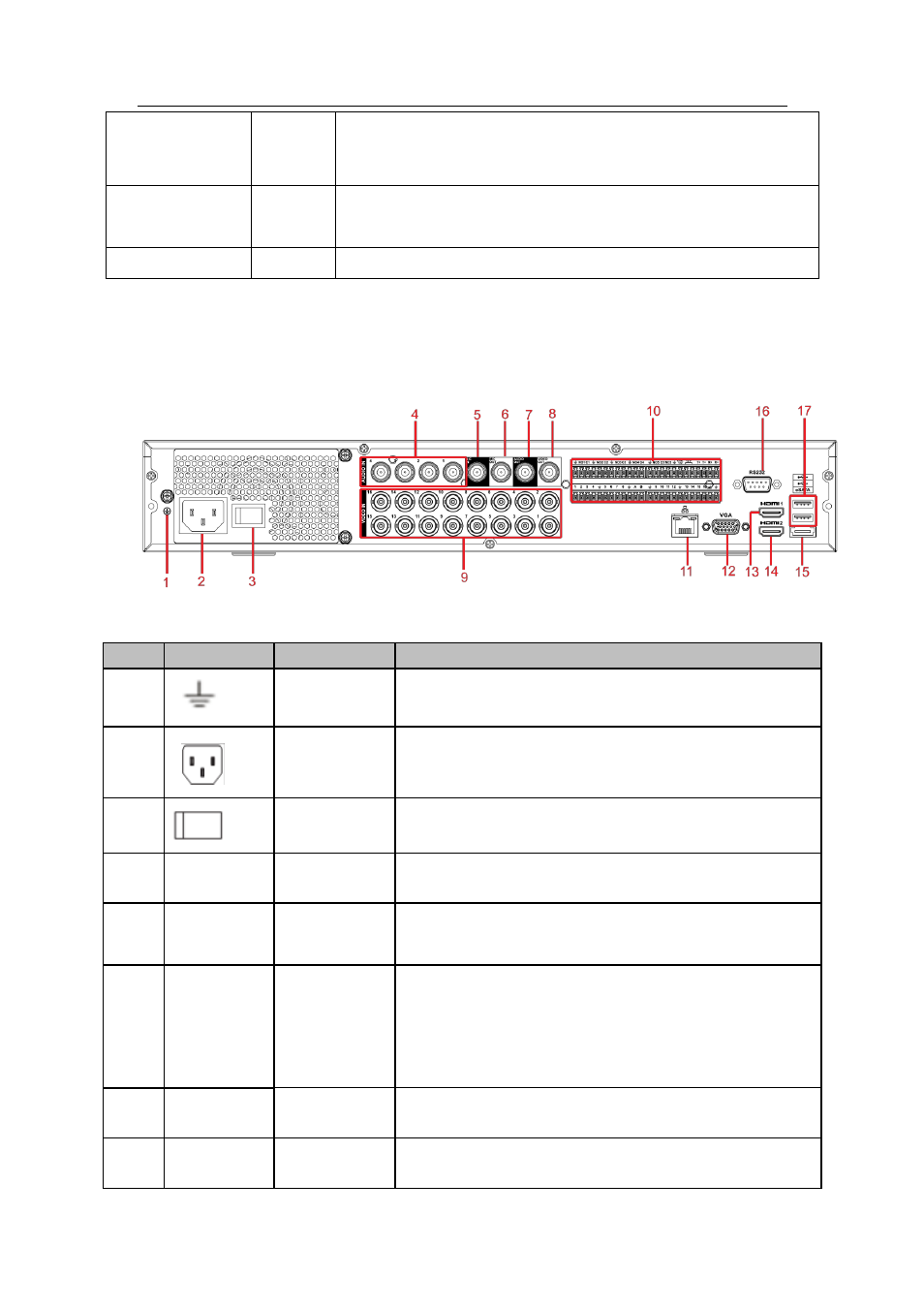

This series products ’ rear panel is shown as below. See Figure 2-3.
Figure 2-3
Please refer to the following sheet for detailed information.
SN Icon Name Function
1
GND Ground port
2 Power socket Power input port
3
Power switch Power on/off button.
4 AUDIO IN
Audio input
port
Connect to microphone and etc to input signal.
5 MIC IN
Bidirectional
talk input port
Input bidirectioanl talk analog signal from microphone,
pick up.
6 MIC OUT
Bidirectional
talk output
port
Output bidirectional talk analog signal to sound box and
etc.
 Bidirectional talk output.
 Audio output of single-window monitor mode.
 Audio output of single-window playback mode.
7 AUDIO OUT
Audio output
port
Connect to sound box and etc to output audio signal.
8 VIDEO OUT
Video output
port
Connect to output devices such as TV.
