HDCVI Standalone DVR User’s Manual
245

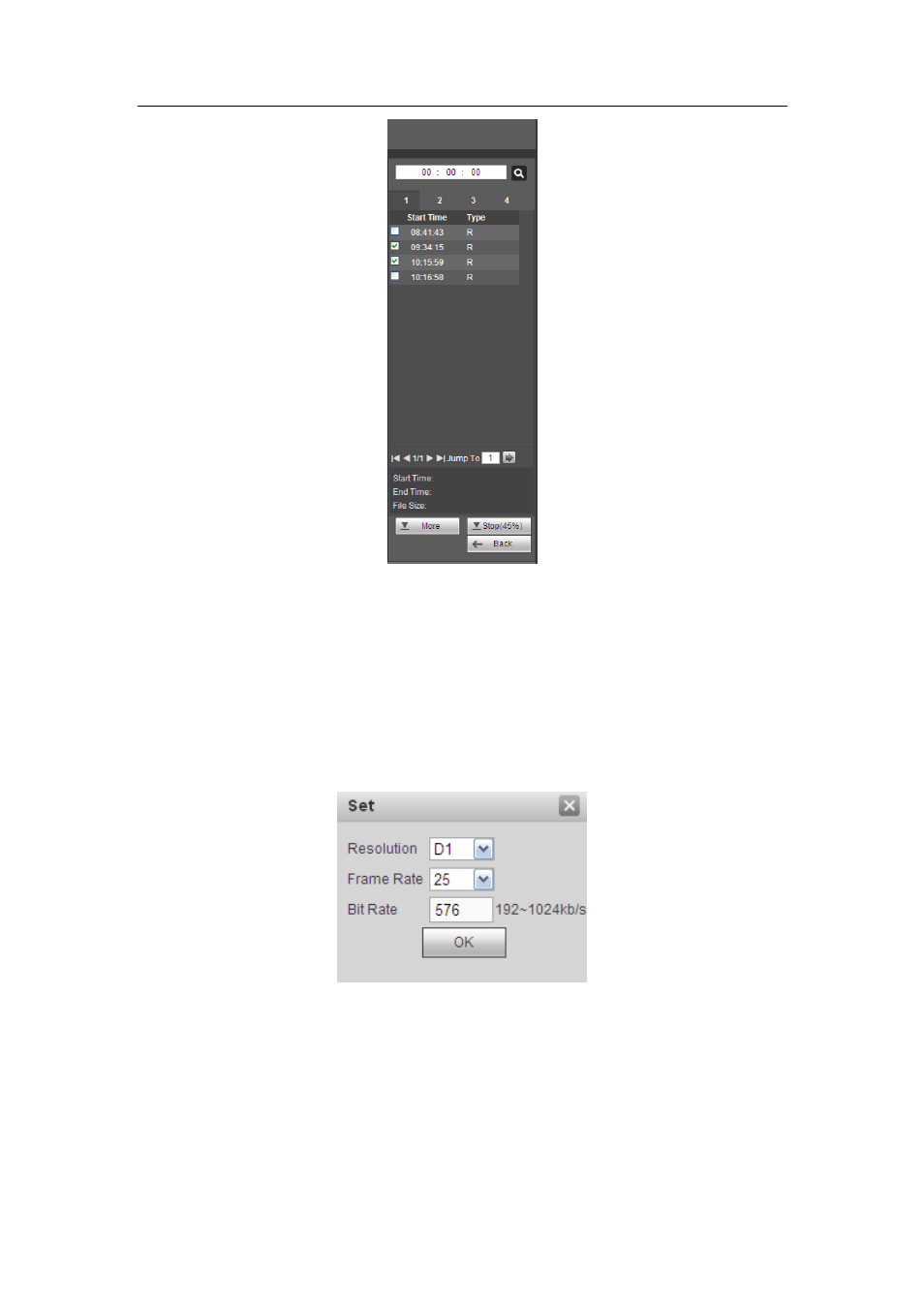

Figure 5-119
HD Transcoding
When the bandwidth is limited, you can use this function to transfer the HD bit stream to
the specified lower resolution and then playback. It is to reduce network load.
In Figure 5-116, select the playback period and then select playback mode and channel(s).
Check the box to enable HD transcoding function and then click the Set button; you can
see the following interface. See Figure 5-120. Please select the resolution, frame rate, bit
rate and then click the OK button.
Figure 5-120
Load more
It is for you to search record or picture. You can select record channel, record type and
record time to download. There are two download types. The download by file interface is
shown as in Figure 5-121 and the download by time interface is shown as in Figure 5-122.
