HDCVI Standalone DVR User’s Manual
144

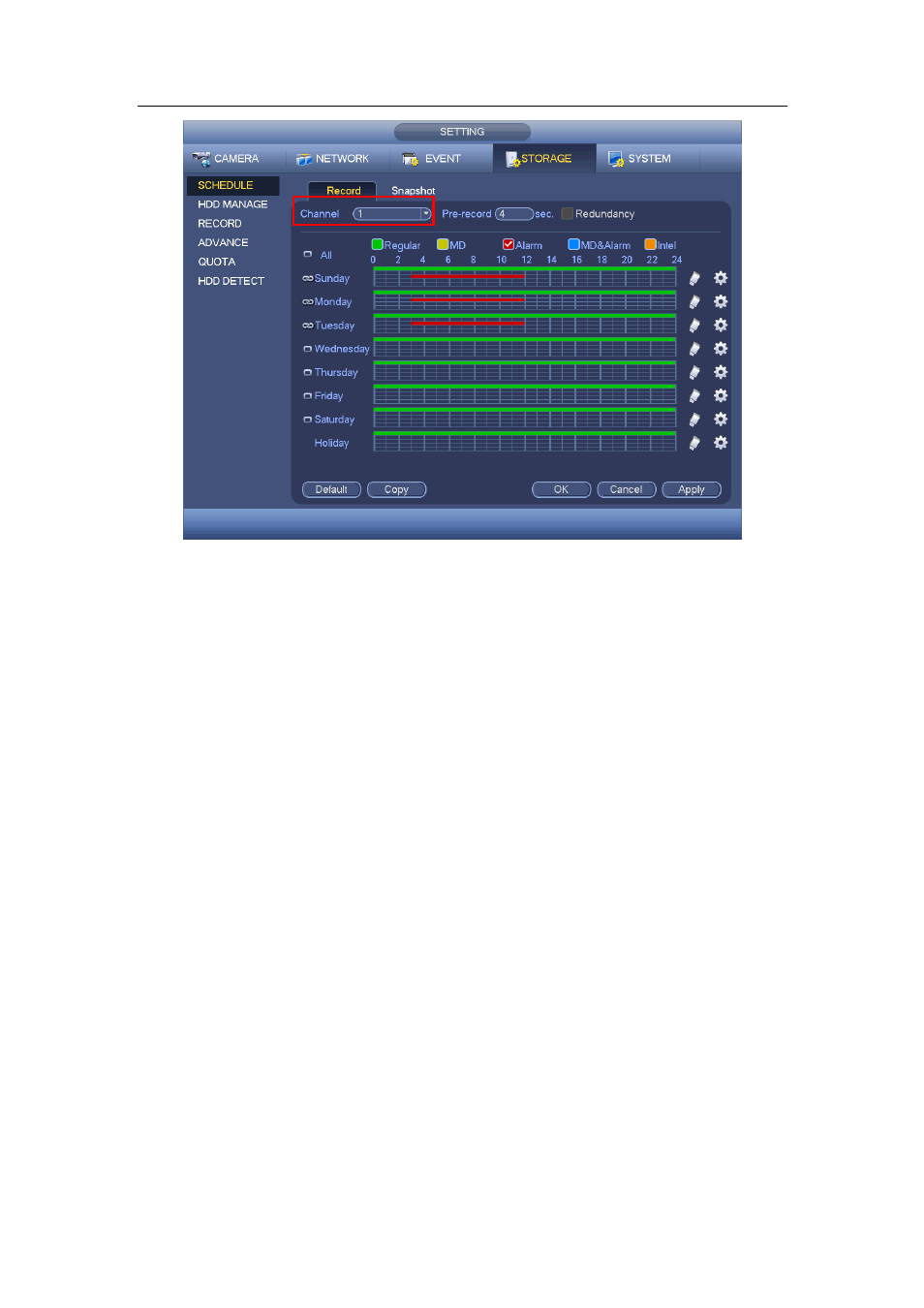

Figure 4-120
4.10.4.1.2.2 Trigger Snapshot
Please follow the steps listed below to enable the activation snapshot function. After
you enabled this function, system can snapshot when the corresponding alarm occurs.
In main menu, from Setting->Camera->Encode->Snapshot interface, here you can
input snapshot mode as trigger, size, quality and frequency. See Figure 4-121.
In main menu, from Setting->Event->Detect, please enable snapshot function for
specified channels (Figure 4-122). Or In main menu, from Setting->Event->Alarm
(Figure 4-123) please enable snapshot function for specified channels.
