EXFO PSO-200 Optical Modulation Analyzer User Manual
Page 97
Bit Pattern Analysis and the Gearbox
Optical Modulation Analyzer
89
Performing Detailed Bit Pattern Analysis with the Gearbox
There are several ways to implement a data modulator for a modulation
format; with these basic Gearbox settings, you should be able to select a

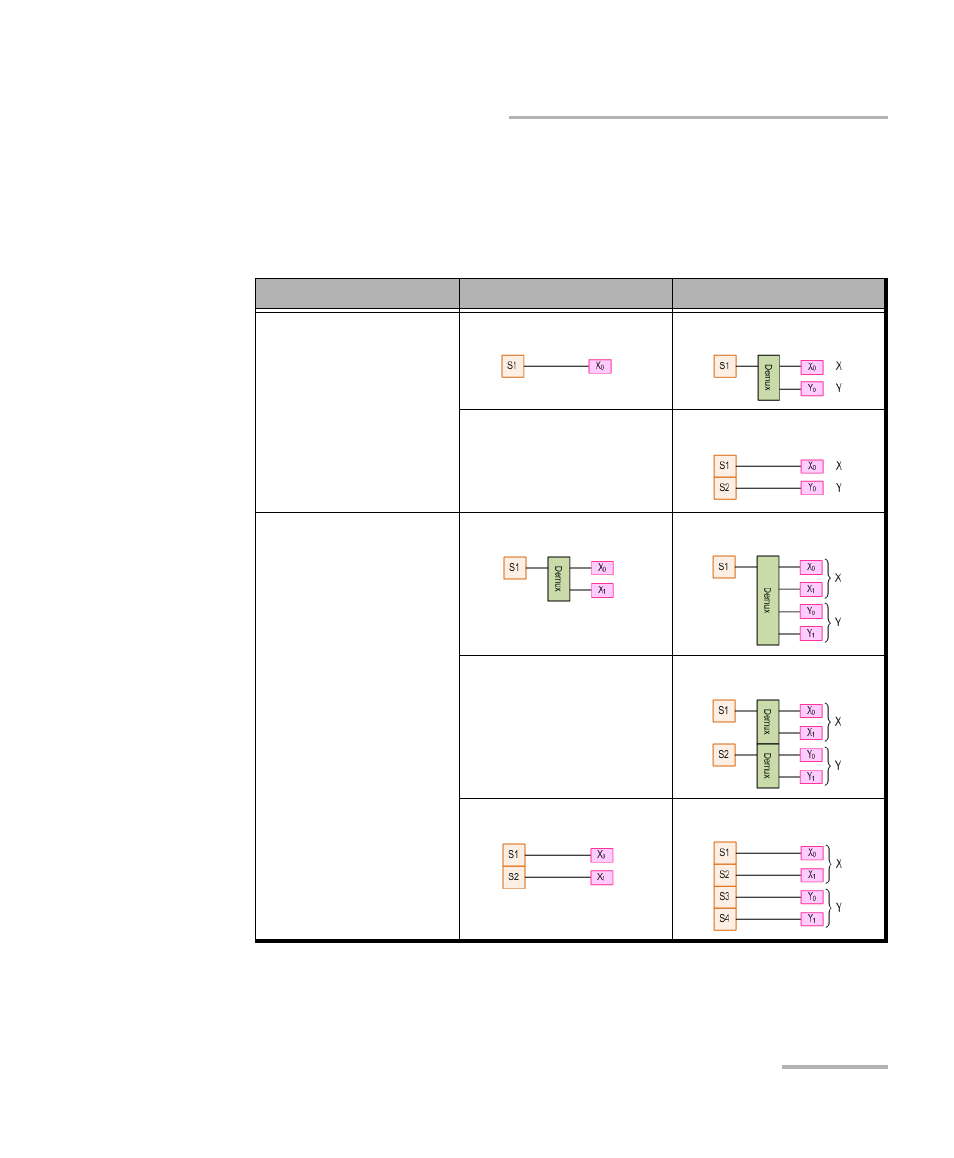

combination that suits your data generation. The table below shows all
possible configurations for the supported modulations formats.
Modulation
Single Polarization
Dual Polarization
OOK
BPSK
1 global stream
1 global stream
Dual (X-Y) streams
QPSK
1 global stream
1 global stream
Dual (X-Y) streams
2 individual streams
4 individual streams
