EXFO PSO-200 Optical Modulation Analyzer - Manual (Page 58)

Viewing and Analyzing Results
50 PSO-200
Viewing Acquisition Information
Viewing Acquisition Information
When opening a previously acquired file for analysis, you can view
information about the parameters that were used for acquisition.
For details on the parameters displayed, see Setting Up the Optical
Modulation Analyzer on page 13.

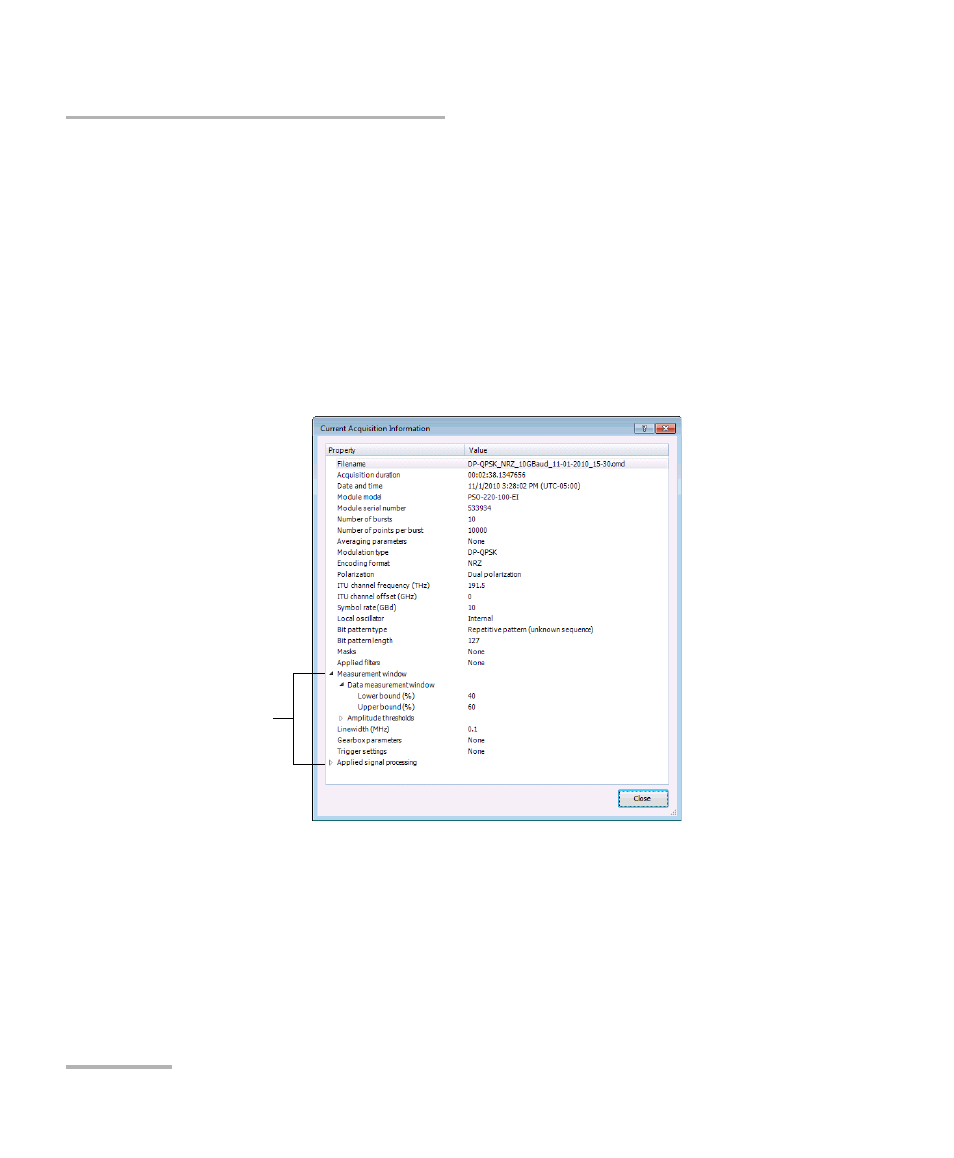

To view data and parameters from the current acquisition:
1. From the File menu, select Properties, then Current Acquisition
Information.
2. Click Close when done.
Expands into
more details
