Bit Pattern Analysis and the Gearbox
80
PSO-200
Basic Gearbox Setup Details
Basic Gearbox Setup Details
Here are the basic instructions to set the Gearbox for testing. The details for
each type of setting is explained further in later sections of this chapter.
To set the Gearbox:

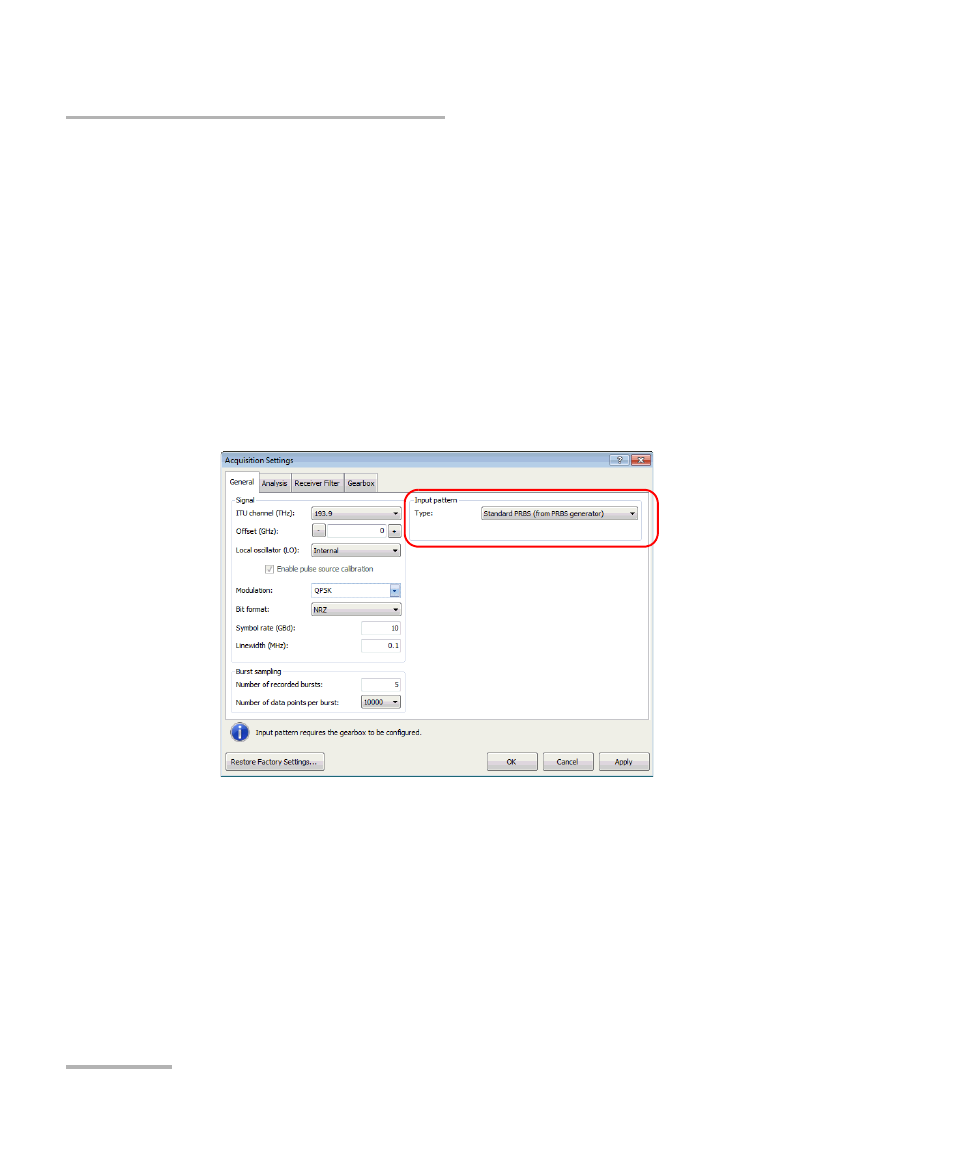

1. From the main window, select the Settings menu, then Acquisition.
2. Under the General tab, select the input pattern type.
Note: The Gearbox can only be used with known patterns, such as PRBS, or a
user-defined pattern.
