Viewing and Analyzing Results
58
PSO-200

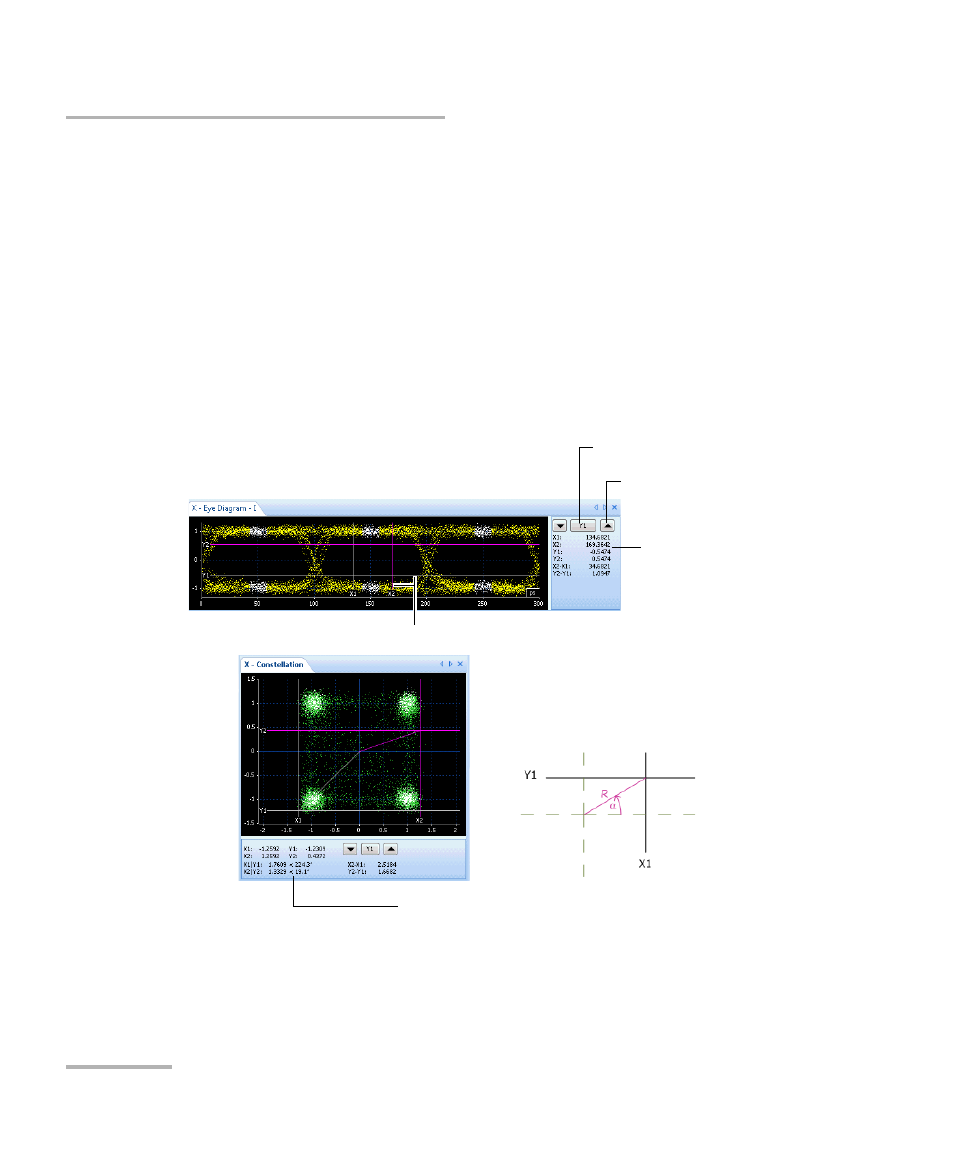

Using Graph Markers
Using Graph Markers
To help you evaluate values and differences (deltas) in precise locations of
any graph type, you can display and position sets of markers on the graph
and view corresponding data on a tiny dashboard.
There are two markers for each axis: X1, X2, Y1, Y2. You can move markers
from end to end, independently from each other.
Constellation charts also include a diagonal line from the center to crossing
pairs of markers (X1|Y1 and X2|Y2), and the dashboard provides
corresponding polar coordinates.
Move selected marker
Toggle marker
Data about selected
marker
Markers
Polar coordinates (R and
)
