Viewing and Analyzing Results
56 PSO-200
Using the Measurement Tables
Using the Measurement Tables
The measurement table is used to view the calculated results for each axis
(I, Q, phase, magnitude). You can decide to display the table or not, and
you can customize it to optimize result viewing.
In preset layouts, measurement tables are associated with the
corresponding chart. There is also one table per polarization state.
However, you can change the layout, or even decide to only display a
general table that shows information common to both polarizations.
For details on each of the available measurements, see Measurement
Definitions on page 251.
Note: You can copy the contents of the table to the Windows clipboard for use in
another application, as explained in Copying Graph and Measurements to
Clipboard on page 114.

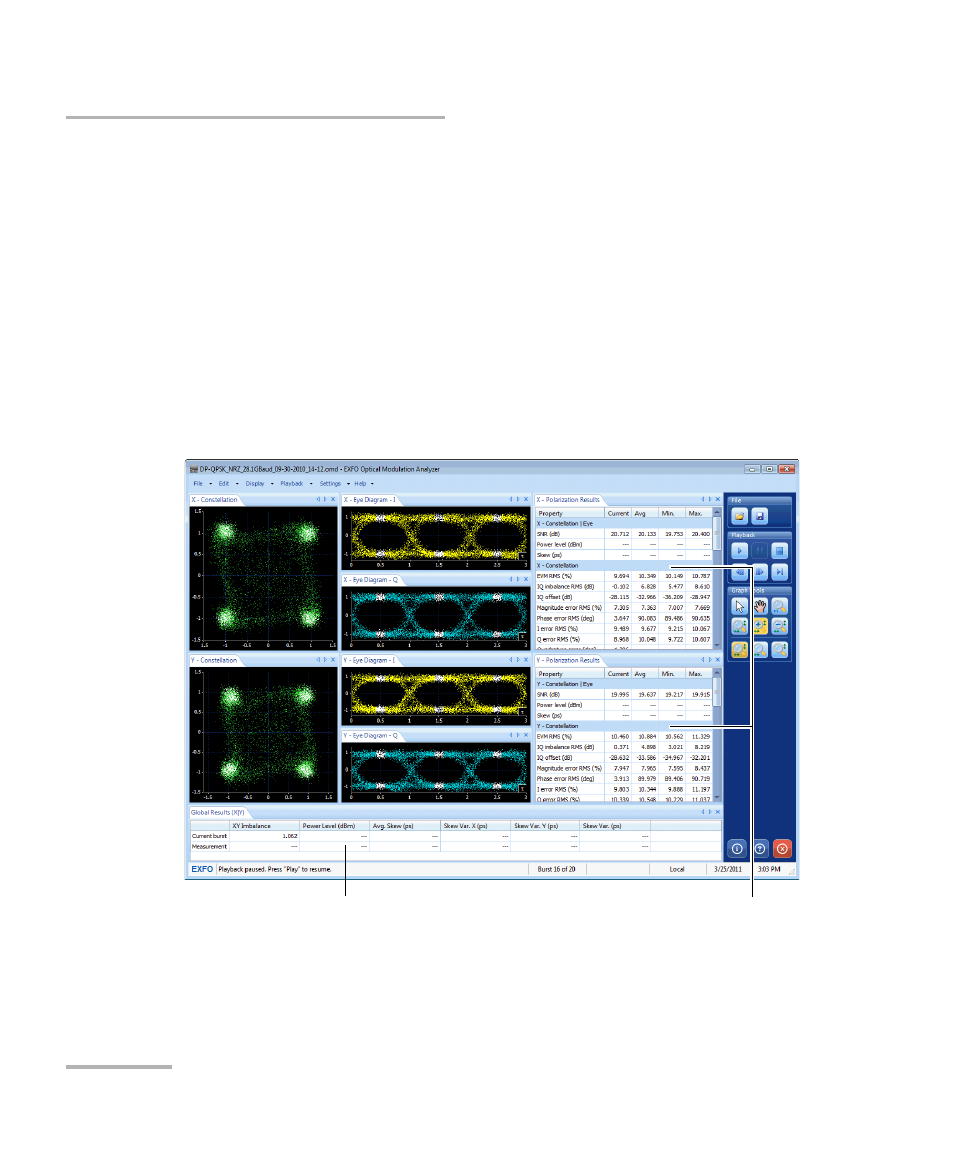

Global results table Constellation and eye results tables
(X and Y polarizations)
