Bit Pattern Analysis and the Gearbox
104 PSO-200
Exporting Gearbox Setups
Exporting Gearbox Setups
After you have defined a full Gearbox setup in the Optical Modulation
Analyzer application to describe your transmitter’s implementation (data
stream content and mapping), you can export it to a file for reuse.
You can export the Gearbox setup of the currently opened file or the one
defined in the application settings.
To export the Gearbox setup for the currently opened file:
From the File menu, select Export, then Gearbox Setup.

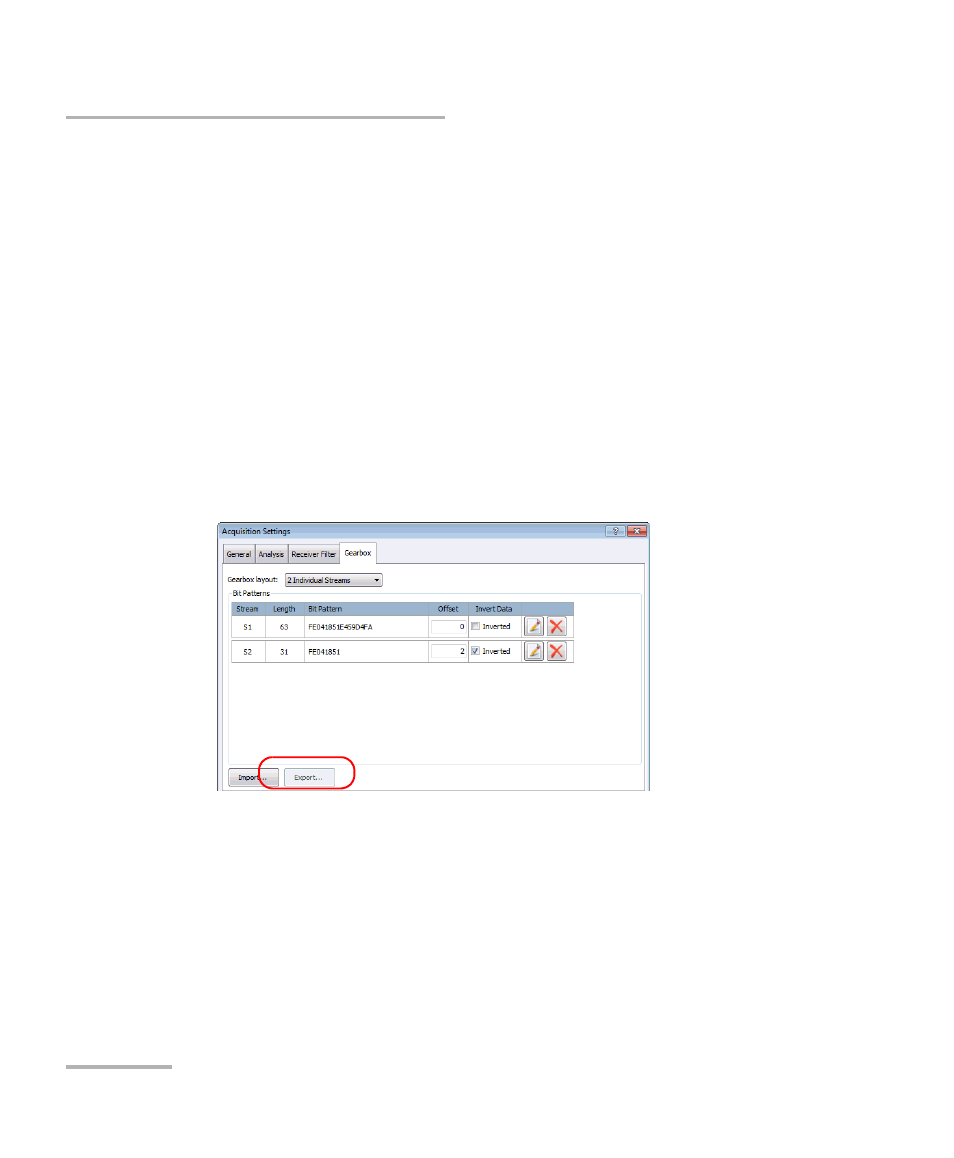

To export the Gearbox setup of the application settings:
1. From the Settings menu, select Acquisition.
2. Select the Gearbox tab.
3. Click Export to save the values of the Gearbox tab (layout, length,
streams).
