Zooming and moving graphs – EXFO PSO-200 Optical Modulation Analyzer User Manual
Page 60
Viewing and Analyzing Results
52
PSO-200
Zooming and Moving Graphs
Zooming and Moving Graphs
Once you have acquired data, you can use zoom and pan functions on the
graphs to better see the results. The Zoom and Pan buttons are located on
the right side of the main window.
When modifying the zoom level of a pattern diagram, or if you move its
view area, all pattern diagrams for the same polarization will adjust to
this new zoom level. This allows inter-graph validation and analysis.
Constellation graphs are always zoomed isotropically (same zoom
level on both axes) to keep their square appearance.

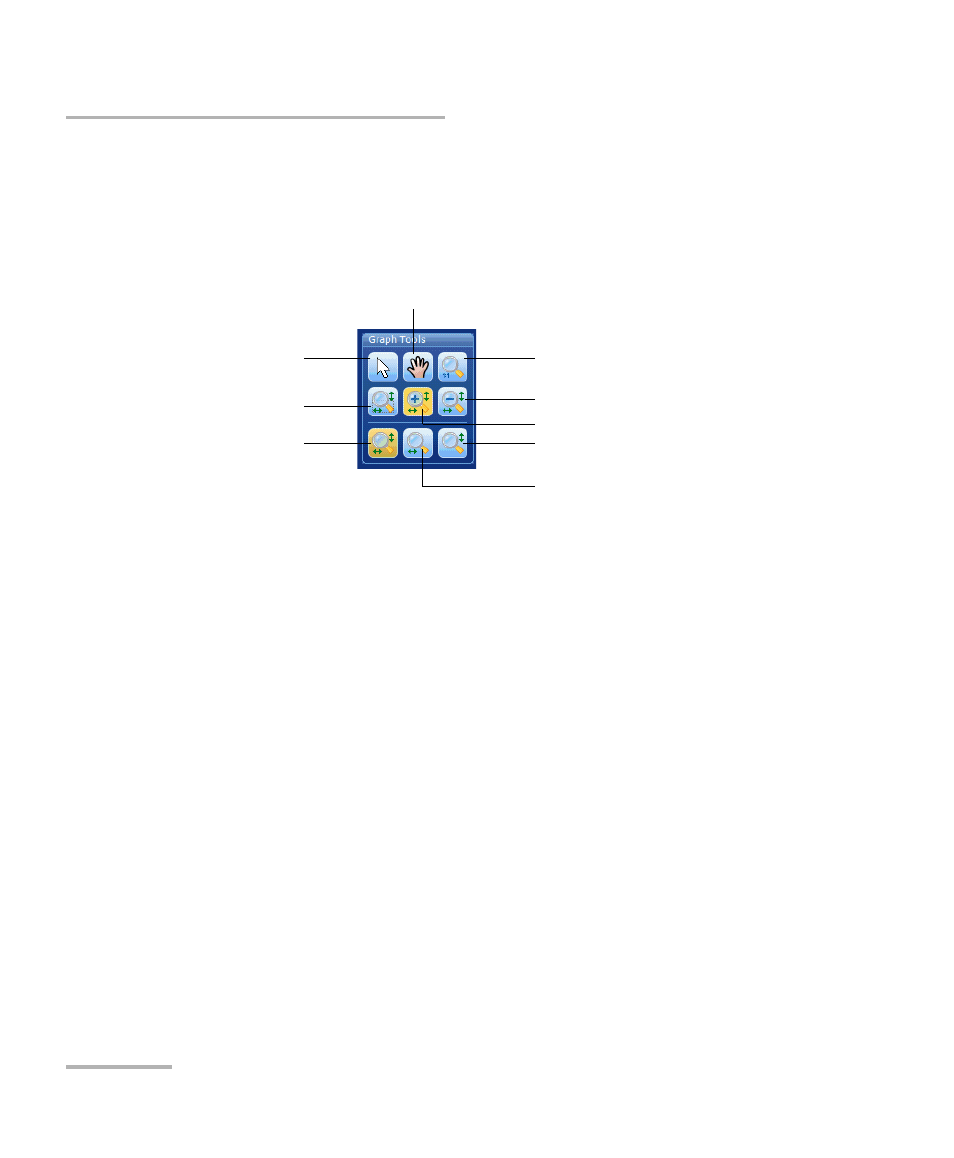

Zoom to a selected area
Selection mode
Move view area (Pan)
Full view
Zoom out
Set zoom according to
both axes
Set zoom according to
vertical axis
Set zoom according to
horizontal axis
Zoom in
