Setting Up the Optical Modulation Analyzer
Optical Modulation Analyzer 19

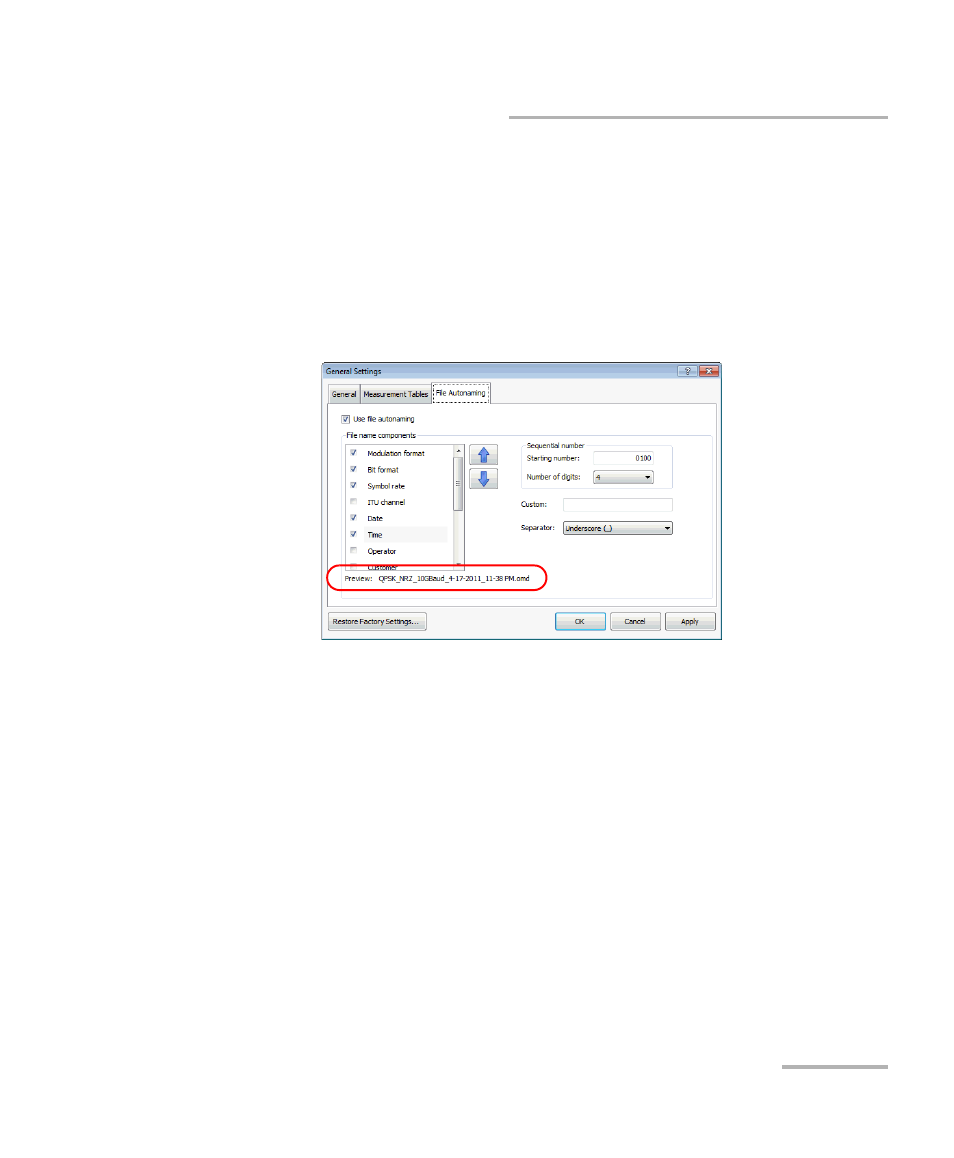

Setting File Autonaming
4. Define the autonaming scheme. A sample file name shows you the
final output.

Select data components you want to include in the name. You
must select at least one item in the list. You can change the order
using the up and down arrow buttons.
Note: The order of the items is kept until you revert to the factory settings.

Set the sequential number values. You can enter the starting
number and select how many digits are to be used. Once the
sequence reaches the maximum value (for example, 999 for a
3-digit sequence), the sequence is reset to the first value.

If desired, you can include a comment for your file name in the
Custom box. The comment contains up to 100 characters.

Select a separator value to place between the selected data
components.
5. Click Apply to confirm your settings, or OK to also close the window.
