EXFO FTB -5240S/5240BP Optical Spectrum Analyzer for FTB 500 (NS-1434) User Manual
Page 379
Managing Results
Optical Spectrum Analyzer
371
Managing EDFA Test Results
³
Noise Figure: indicates the EDFA’s noise figure measured for the
selected channel.
³
Gain - Avg. Gain: indicates the selected channel gain minus the
average of all channel gains.

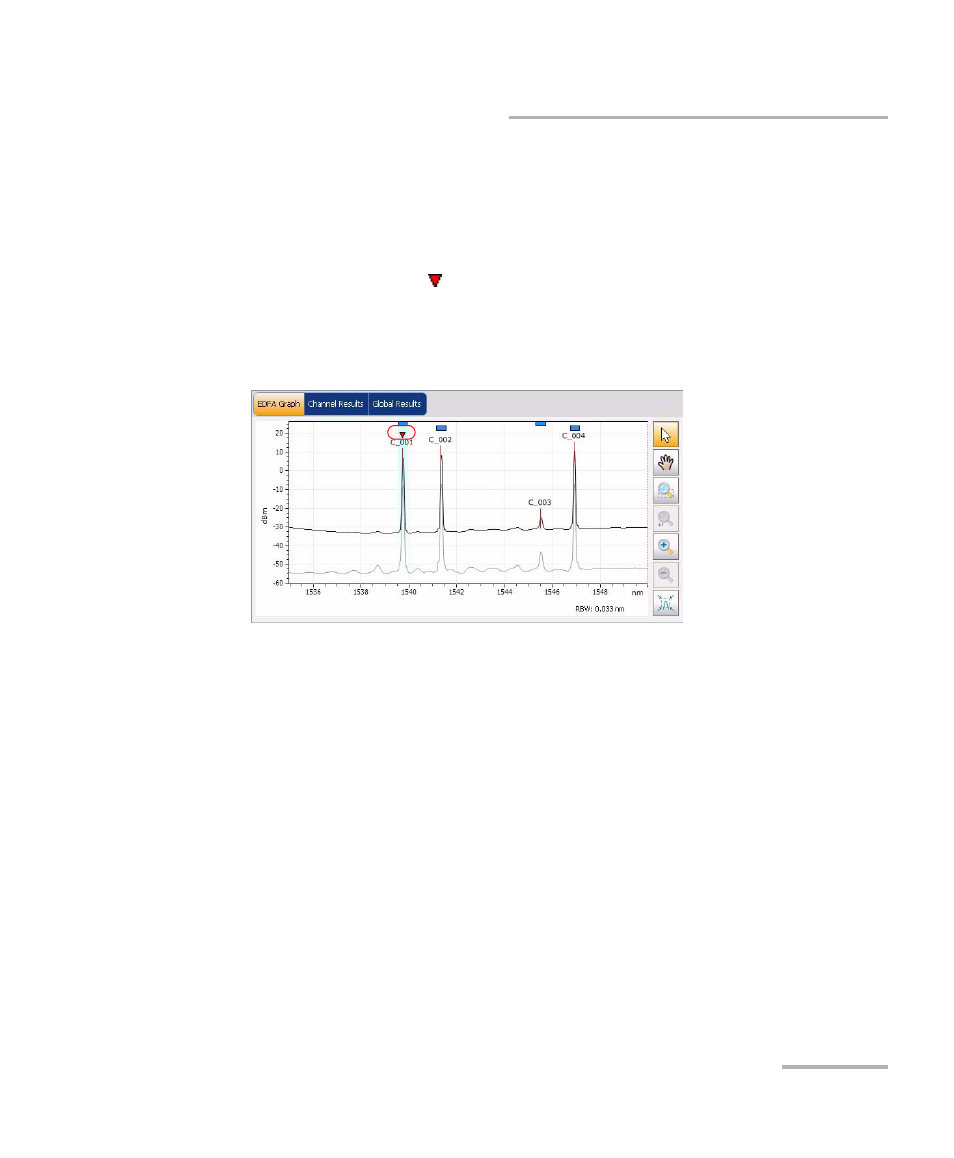

A small red marker ( ) will point down at the peak in the EDFA Graph tab
when you select a row in the Results tab. The red marker will move
accordingly to indicate the corresponding peak on the graph, with a focus
on the selected channel.
