Managing Results
278
FTB-5240S/5240BP
Managing WDM Test Results
Managing WDM Test Results
The application allows you to view and manage your WDM test results. You
can view the graph of your acquisition, results for a single channel, global
results and information about the trace.
Graph Tab

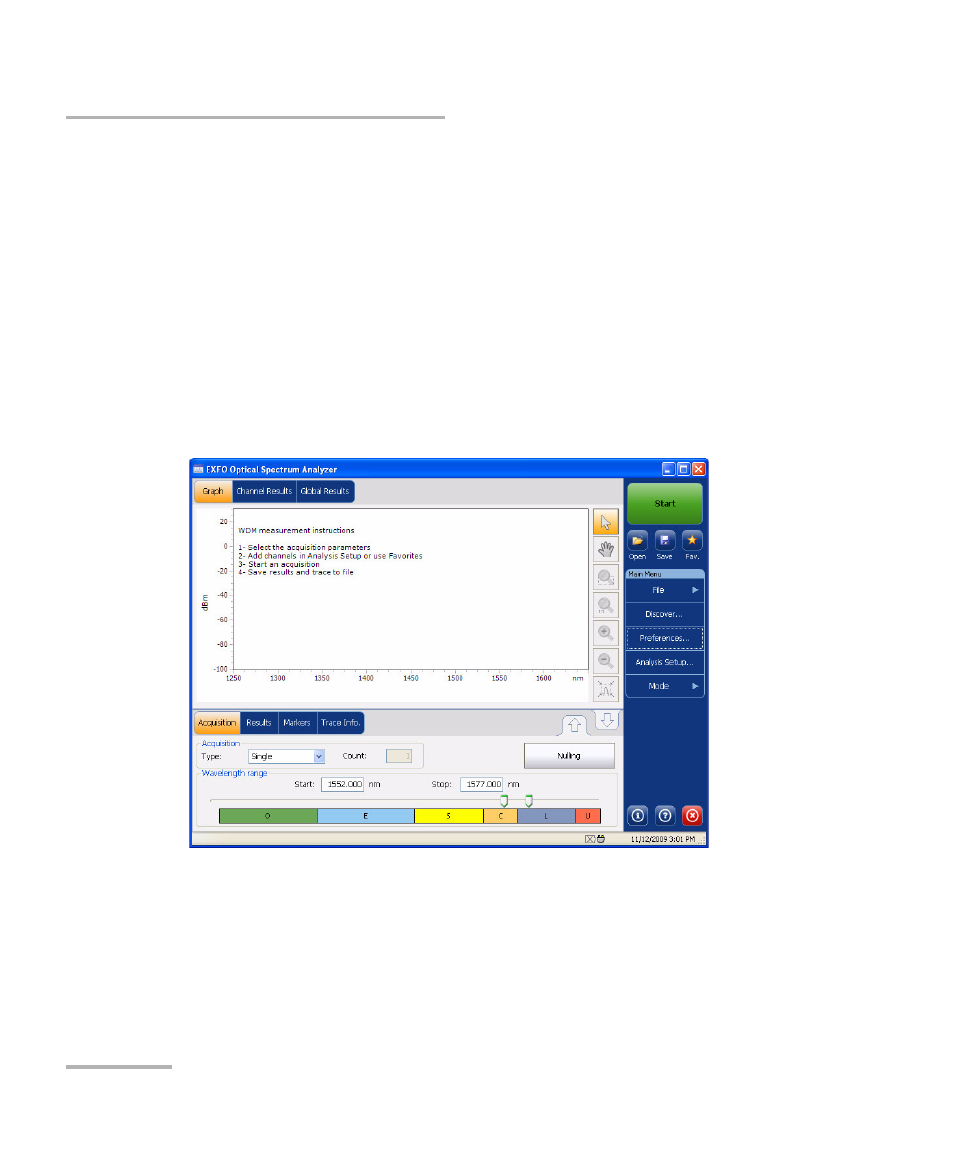

The Graph tab allows you to view the spectrum of the active trace. This
graph represents the optical power against wavelength. When there is no
acquisition, the graph zone shows a procedure explaining how to take
measurements with the OSA application.
