Trace info. tab – EXFO FTB -5240S/5240BP Optical Spectrum Analyzer for FTB 500 (NS-1434) User Manual
Page 364
Managing Results
356
FTB-5240S/5240BP
Managing Spectral Transmittance Test Results
Trace Info. Tab
After acquiring a trace, you might want to view details about the
acquisition. The Trace Info. tab shows information related to acquisition
parameters and conditions. You can also edit information about the tested
fiber and job or add comments. This information is saved along with the
trace.
To view trace information parameters:

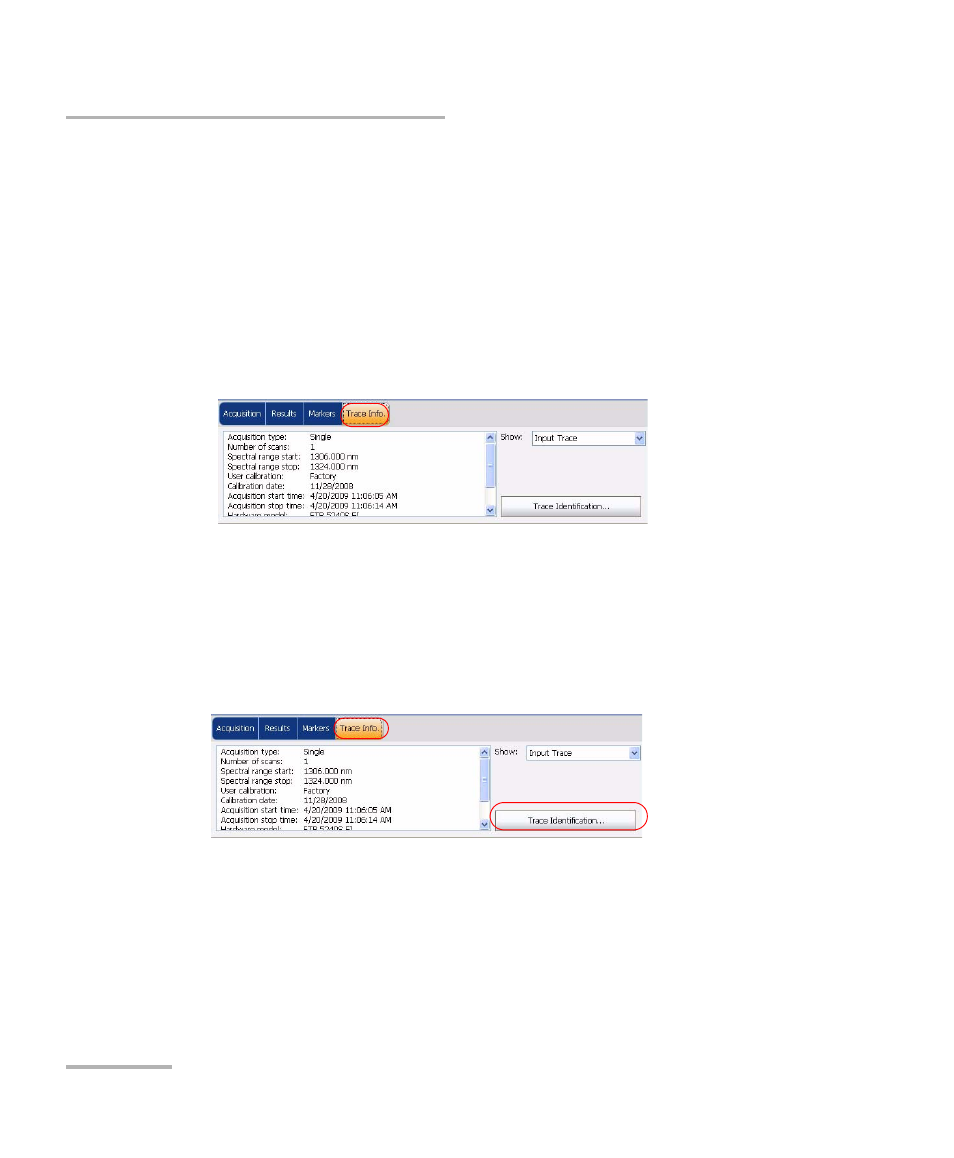

From the main window, select the Trace Info. tab.
You can select Input Trace, Output Trace or ST Trace based on the
information you want to view from the Show drop down list.
To edit general information:
1. From the main window, select the Trace Info. tab.
2. Press Trace Identification.
