ADLINK PCI-8134A - Manual (Page 78)

68
• Motion Creator
Where _8134_initial () and _8134_Set_Config () can be called from the
function library we provide. _8134_initial () should be the first function called
within main {} function. It will check all the PCI-8134/PCI-8134A existed and
give the card a base address and IRQ level. _8134_Set_Config () will
configure the PCI-8134/PCI-8134A cards according to “8134.cfg”. That is,
the contents of Axis Configuration Window can be transferred to the
application program by this function called.

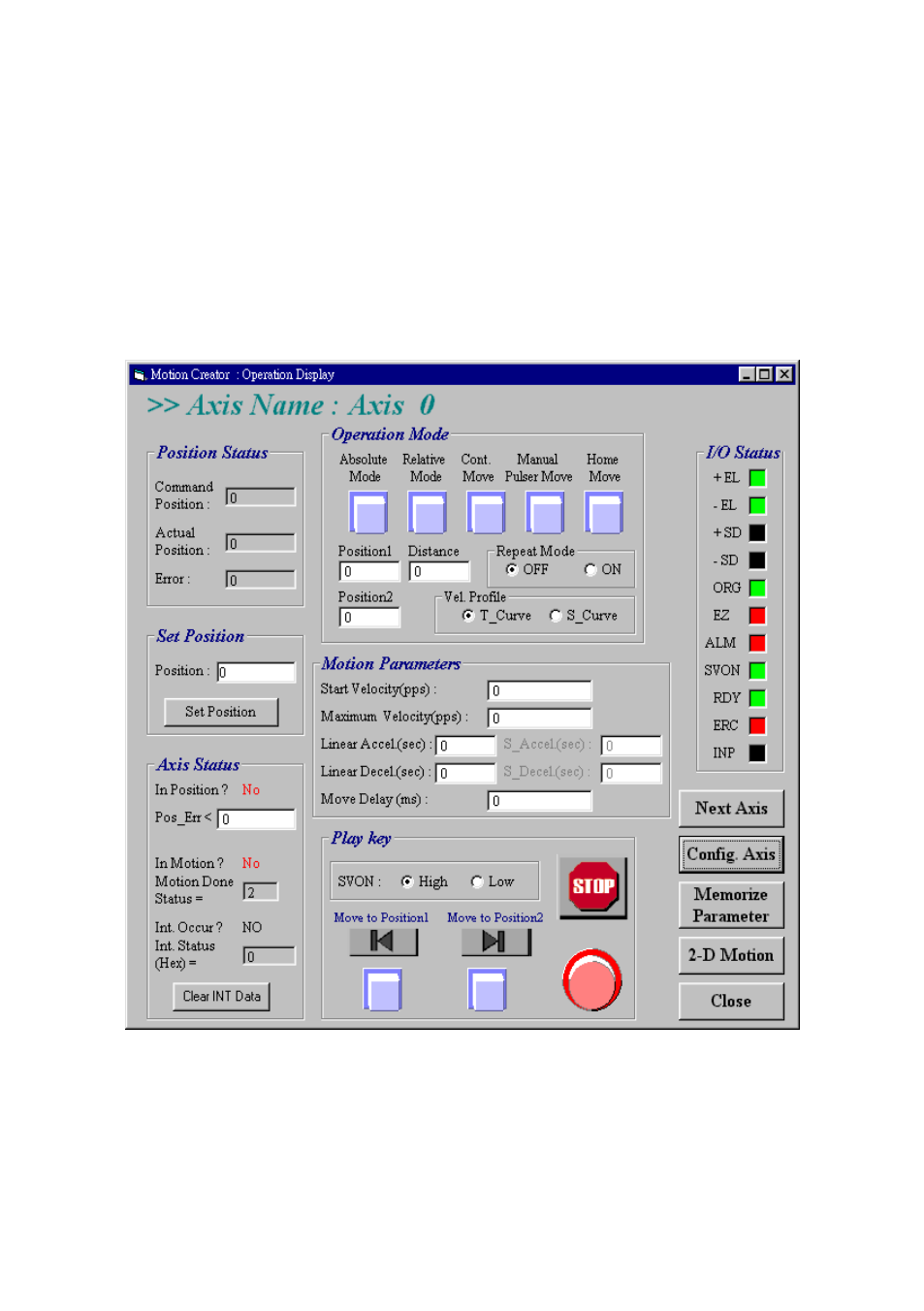

Figure 5.3 Axis Operation window
