ADLINK PCI-8134A - Manual (Page 32)

22
• Signal Connections
3.3
Origin Signal ORG
The origin signals
(ORG1∼ORG4) are used as input signals for origin of the
mechanism. The following table lists the relative signal name, pin number,
and the axis number.
CN2 Pin No Signal Name Axis
#
41 ORG1

47 ORG2

91 ORG3 
97 ORG4


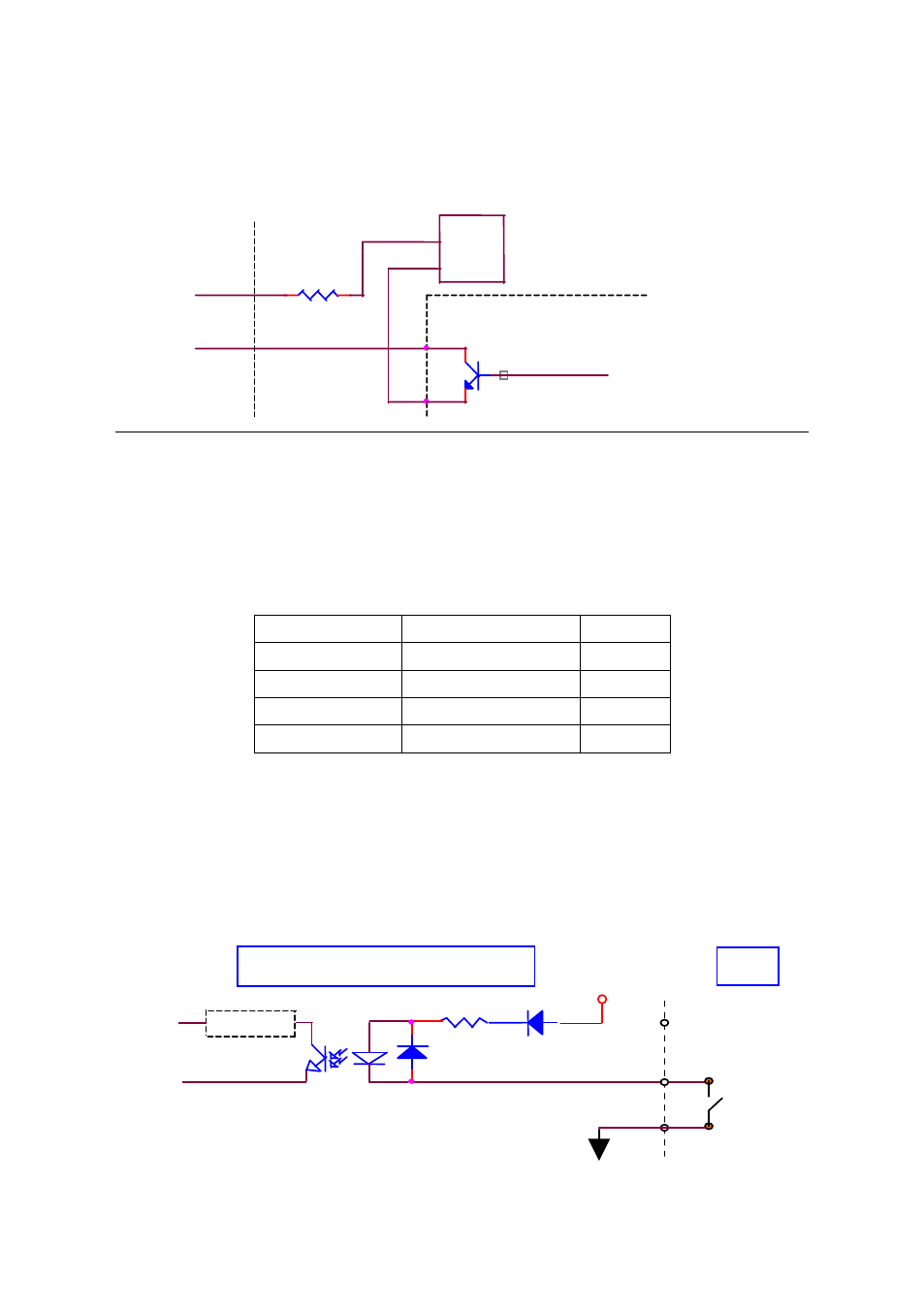

The input circuits of the ORG signals are shown as following. Usually, a
limit switch is used to indicate the origin of one axis. The specifications of
the limit switches should with contact capacity of
+24V, 6mA minimum. An
internal filter circuit is used to filter out the high frequency spike, which may
cause wrong operation.
EX
+
24V
I
f
=6mA Max.
Filter
Circuit
Motion ASIC
ORG
4.7K
EXGND
Inside PCI-8134/PCI-8134A CN2
← Switch
VDD
GND
Motor Encoder / Driver
With Open Collector Output
External Power for
Encoder
PCI-8134/PCI-8134A
A, B phase
signals
EA+, EB+,
EA-, EB-,
R
