• Motion Creator
5.1
Main Menu
Main Menu will appear when executing Motion Creator. Figure 5.1 shows
the Main Menu.

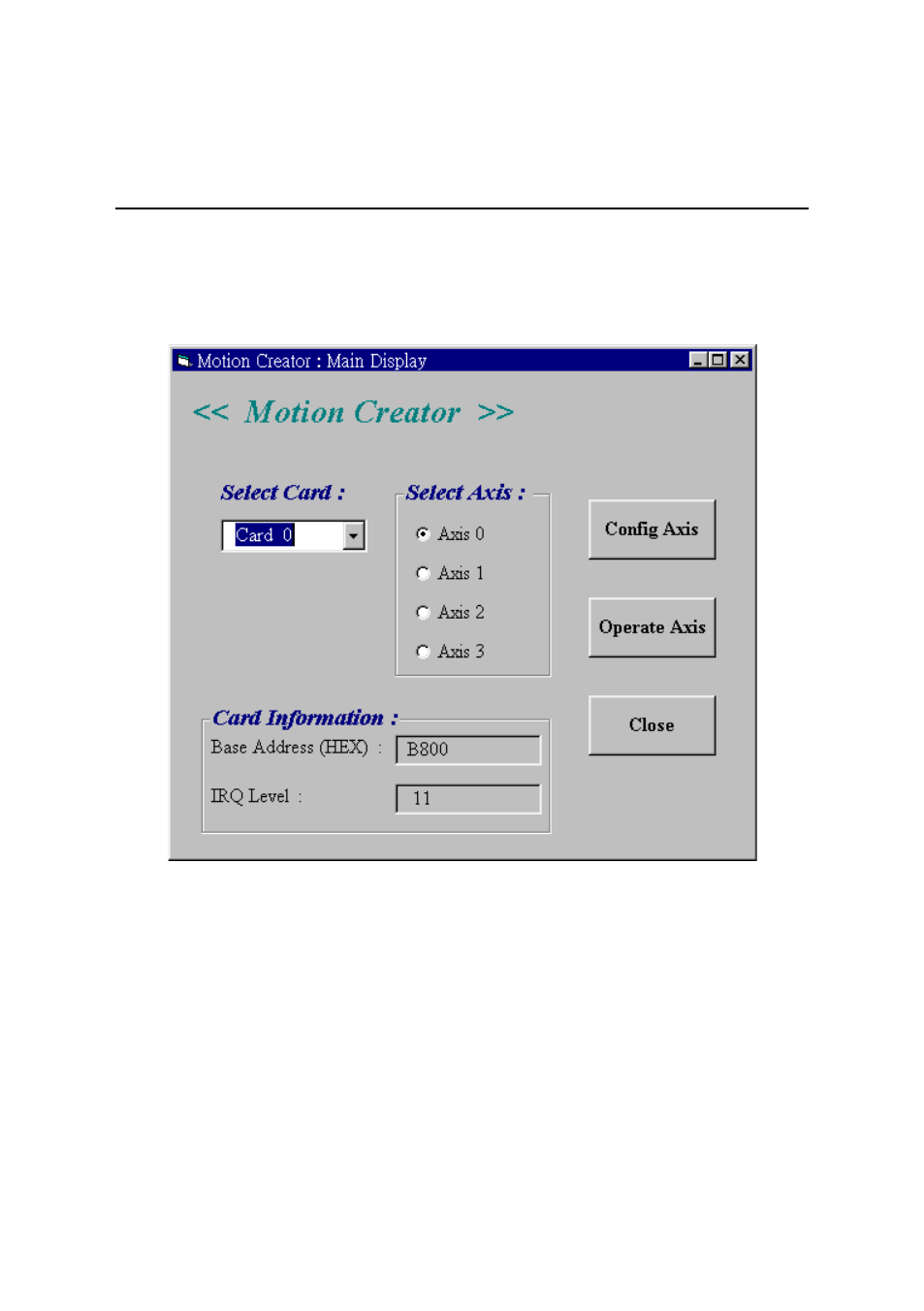

Figure 5.1 Main Menu of Motion Creator
From main menu window all PCI-8134/PCI-8134A cards and their axes and
the corresponding status can be viewed. First of all, check if all the PCI-
8134/PCI-8134A cards which are plugged in the PCI-Bus can be viewed on
“Select Card” column. Next select the card and axis you want to configure
and operate. Since there are totally four axes on a card, the axis number of
first axis on n-the card will be numbered as 4*(n-1). Base address and IRQ
level of the card are also shown on this window.
