138

• Connection Example

3. Depending on the PCI-8134/PCI-8134A or PCI-8164 card used,
some signals (PSD & MSD) in the IOIF connector will function differently.
When PCI-8134/PCI-8134A is used, the PSD and MSD signals are for
positive slow down and negative slow down signal respectively. When PCI-
8164 is used, PSD is for CMP and LTC, and MSD is for SD. For more
details, please refer to the PCI-8134/PCI-8134A and PCI-8164 user manuals.

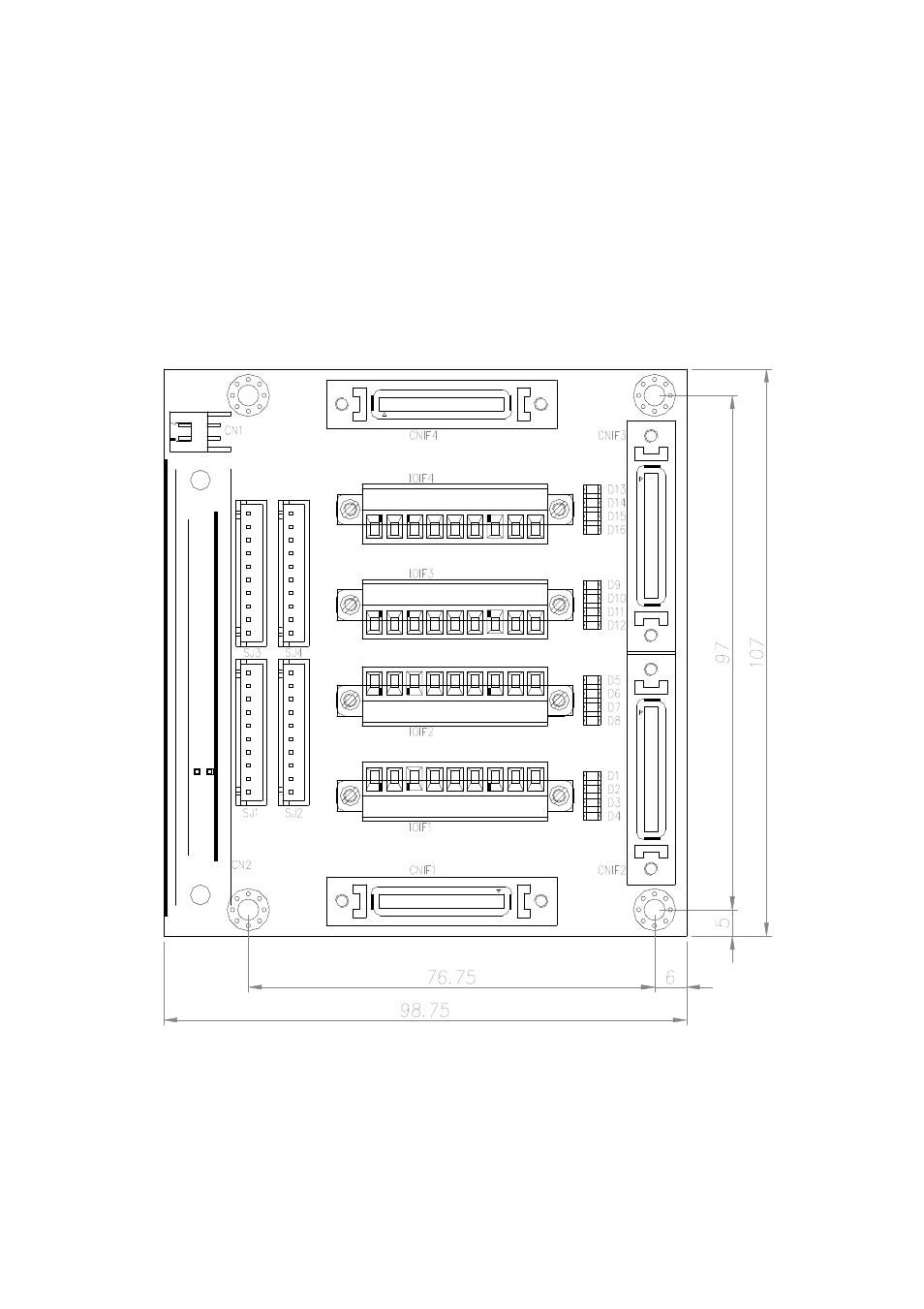

Mechanical Dimensions:
