Page 52

42
• Operations
setting home_mode parameter in set_home_config() function. The
meaning of Home_mode will be described as the following:
CAUTION
Due to differences between the motion chipsets of PCI-8134 and PCI-
8134A, behaviour of home mode 0 and 1 will be inconsistent as
performed previously. Please note differences in timing charts of
each home mode for both PCI-8134 and PCI-8134A when user
wants to use PCI-8134A instead of PCI-8134 with same home
function. To ensure the accuracy of home move process, the
motion chipset on PCI-8134A commands backward motion and
stops at the edge of ORG or EZ precisely.
PCI-8134 Home Mode 0 & Home Mode 1

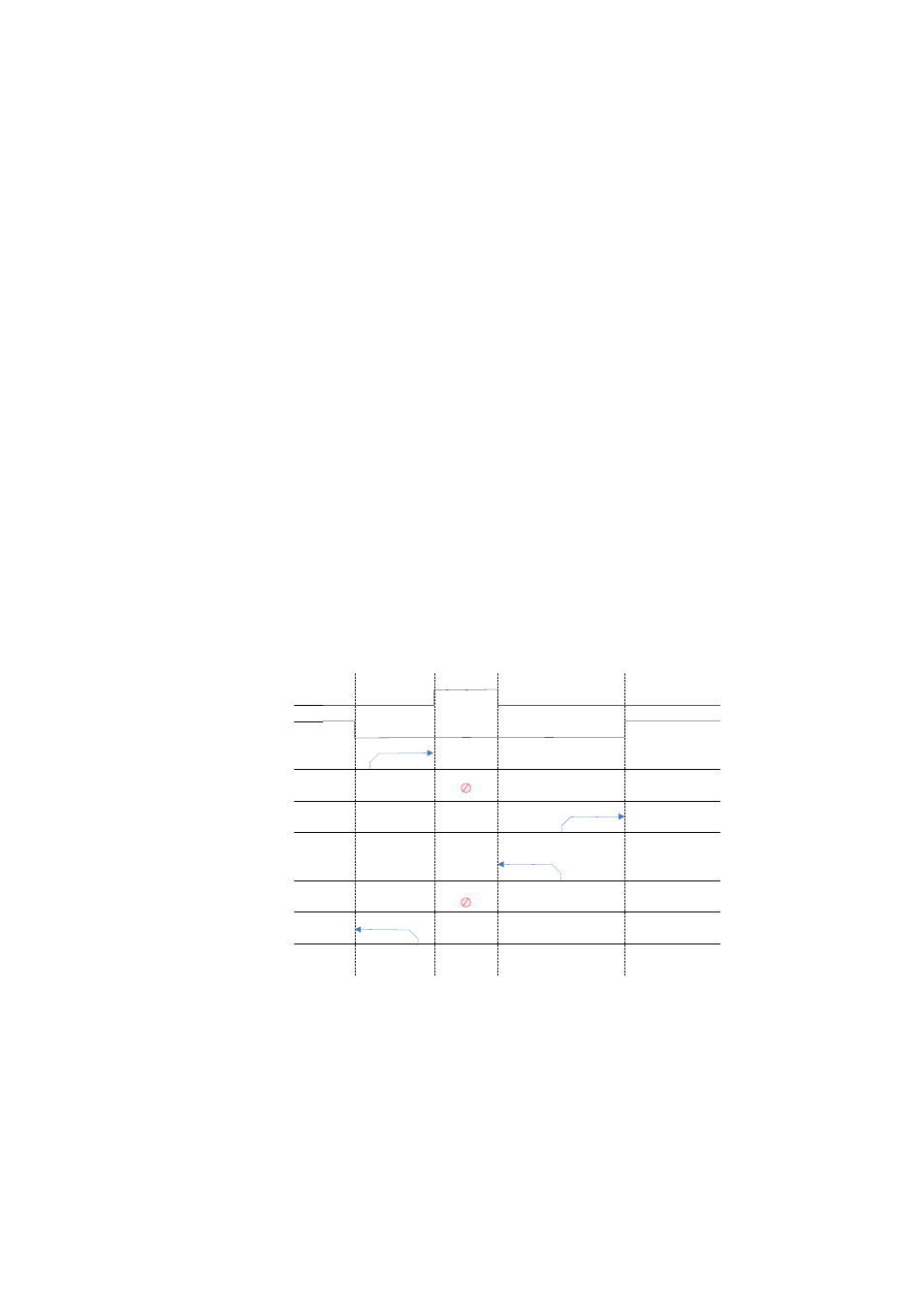

The timing charts of Home Mode 0 and 1 of PCI-8134/PCI-8134A
follow.
ORG
EL
PCI-8134 Home Mode 0 + ORG DO not latch
Case 1
Case 2
Case 3
Stand still
Negative
Positive
Case 1
Case 2
Case 3
Stand still
*1
*1
*1 In the case 2 of PCI-8134 Home Mode 0, The axis will stand still and reset counter to 0
and issue home interrupt after user commanded a home move operation.
PCI-8134 Home Mode 0 + ORG do not latch @ 8134.DLL
/8134A.DLL
