64 Operations
I
2
C Cmd/Addr Count is less than 4 byte:
I
2
C Data Count is less than 4 byte:

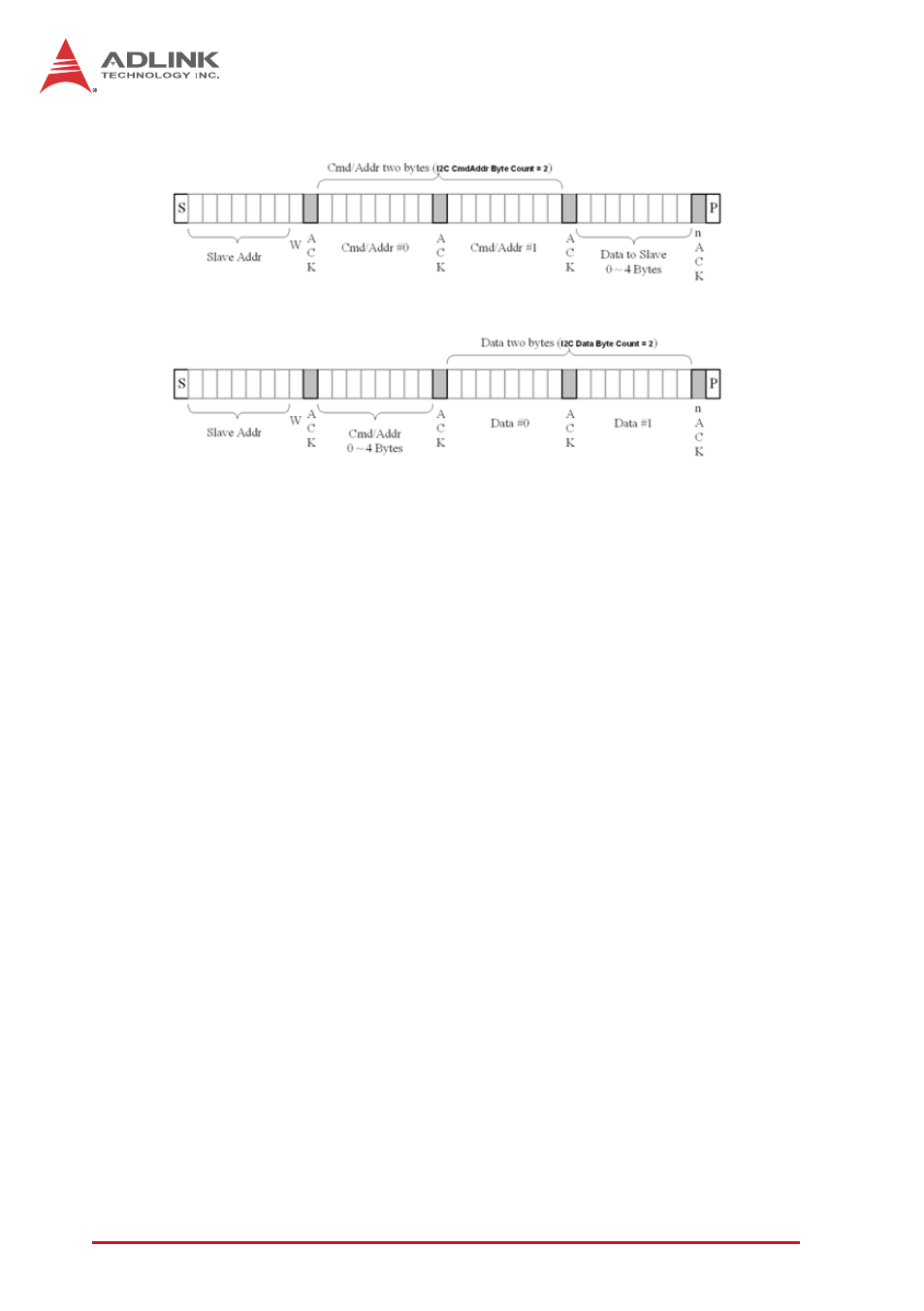

Figure 3-31: I
2
C Data Format
SPI Master
PCIe-7360’s application function I/O (AFI) can be configured as
SPI node for user to communicate with peripheral devices through
PCIe-7360’s built-in SPI master protocol and provided API
directly. Along with SPI master of PCIe-7360, user can easily com-
municate with ADC/ Microcontroller/ EEPROM/ image sensor for
initializing and programming.
