Chapter 4 Digital Keypad Operation|VFD-S Series
Revision August 2006, SE08, SW V2.61
4-3

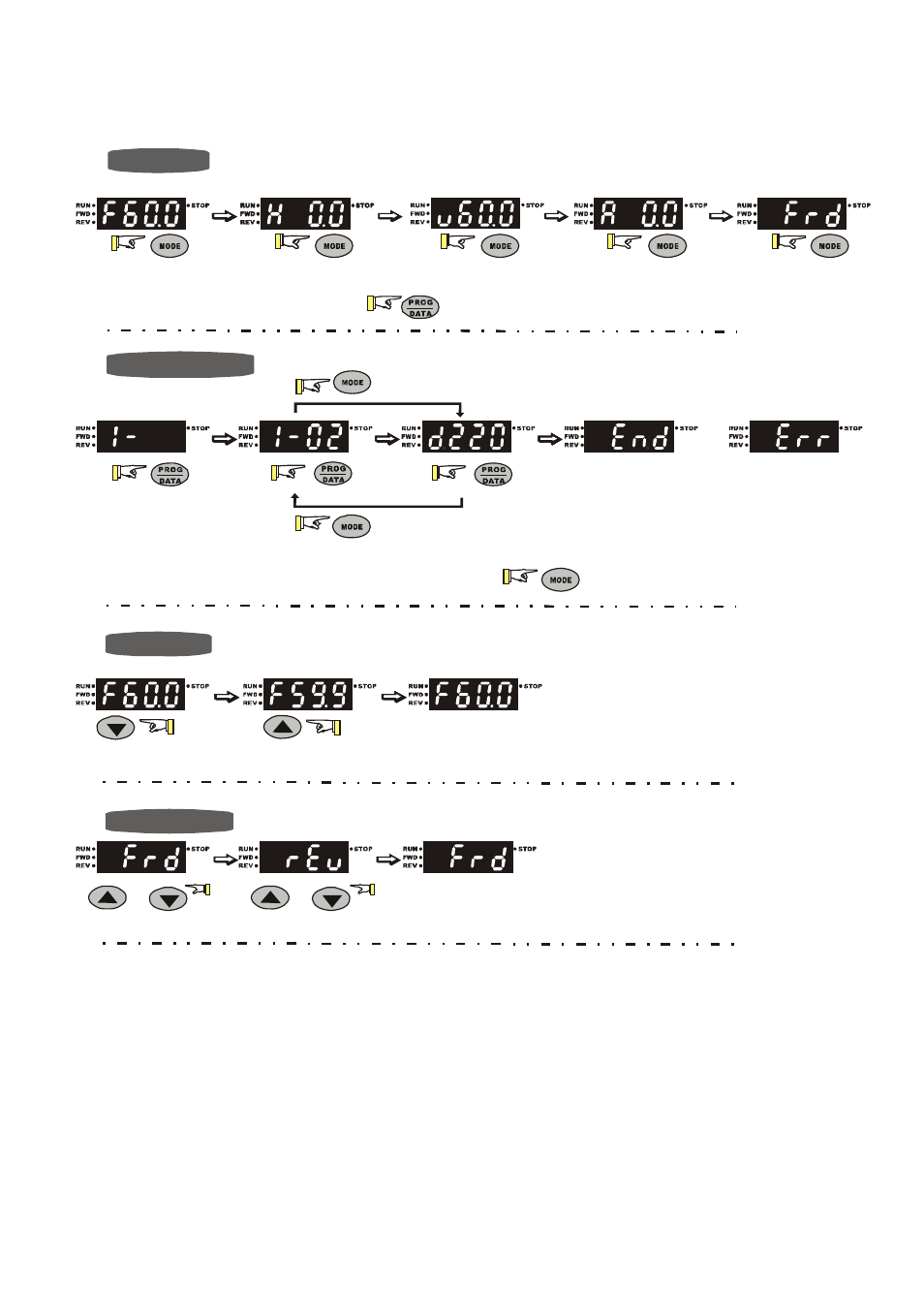

4.4 How to Operate the Digital Keypad
START
To shift data
Setting direction
or
GO START
START
Setting Mode
Note： In the selection mode, press
to set the parameters.
Setting parameter s
move down to the previous display
move up to the previous display
or
Success to
set parameter.
Input data error
NOTE：In the parameter setting mode, you can press
to return the selecting mode.
(When operation source is digital keypad)
or
