Power terminal – Delta Electronics AC Motor Drive VFD007S23A User Manual
Page 43
Chapter 2 Installation and Wiring|VFD-S Series
2-30
Revision August 2006, SE08, SW V2.61

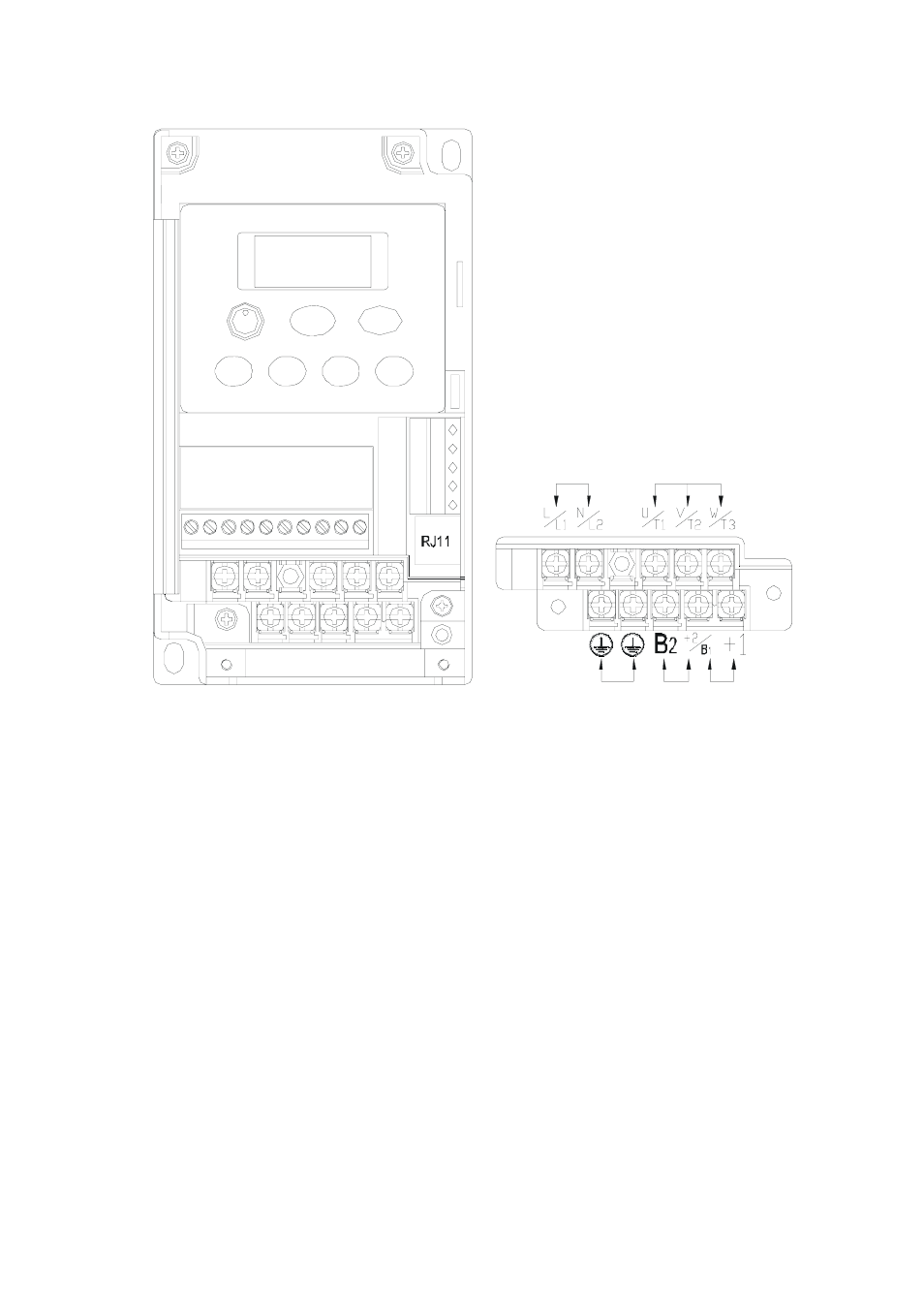

VFD002S21A/E, VFD004S21A/E, VFD007S21A/E
DC Reactor
Br ak ing
Res istor
G roun d
Power terminal
AC Input Line
Ter minal
Motor
Conne ction
Power Terminal:
Torque: 12 kgf-cm (10 lbf-in)
Wire Gauge: 14-20 AWG (2.1-0.5mm
2
)
Wire Type: Copper only, 75
o
C
