B.7 Remote Controller RC-01

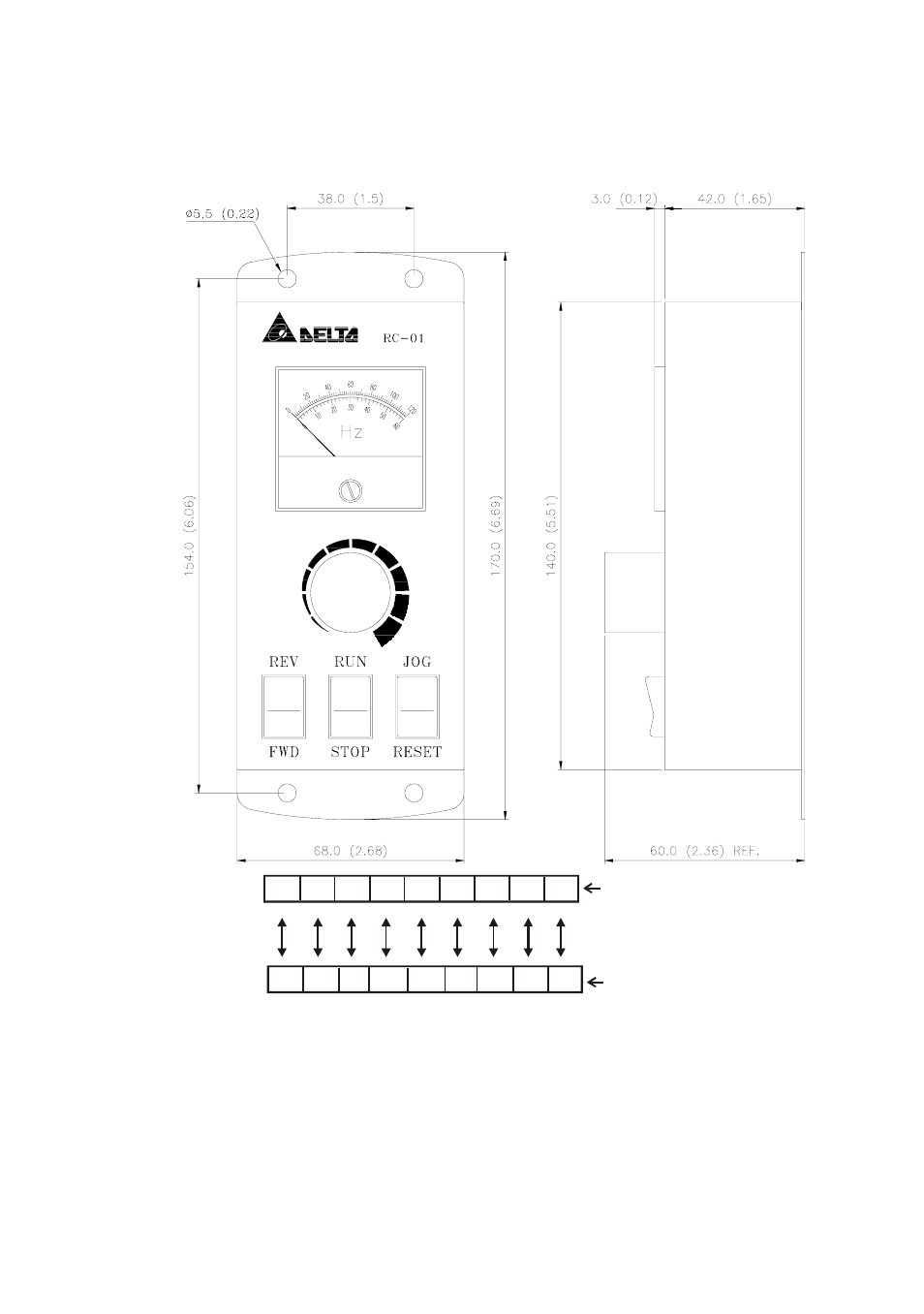

(Dimensions are in millimeter)
AFM GND
+10V
AVI
GND M2 M0
M1
M3
8
6
5
4
16 15 14 13
11
RC-01
Terminal
block
(Wiring
connections)
VFD-S
I/O
Block
VFD-S Programming
Pr. 2-00 and Pr. 2-01 set to d01
Pr. 4-04 set to d02 (M0, M1 set at RUN/STOP and FWD/REV)
Pr. 4-05 set to d06 (M2 set for reset)
Pr. 4-06 set to d10 (M3 set for jog operation)
