Power terminal – Delta Electronics AC Motor Drive VFD007S23A User Manual
Page 46
Chapter 2 Installation and Wiring|VFD-S Series
Revision August 2006, SE08, SW V2.61
2-33

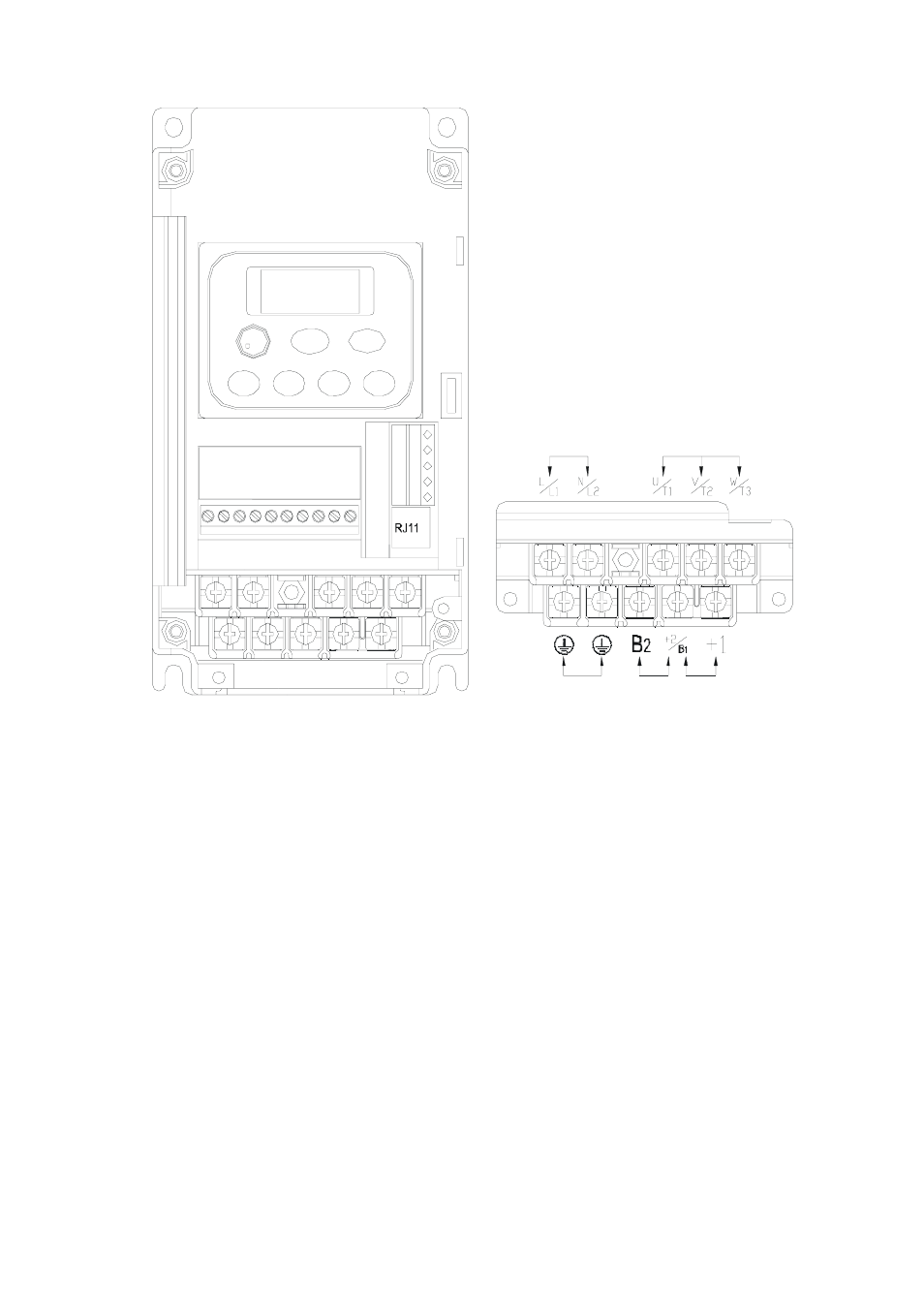

VFD015S21D/E, VFD022S21D/E
Br ak ing
Res istor
DC Reacto r
G roun d
Power terminal
AC Input Line
Ter minal
Motor
Conne ction
Power Terminal:
Torque: 20 kgf-cm (17.4 lbf-in)
Wire Gauge: 10-18 AWG (5.3-0.8mm
2
)
Wire Type: stranded copper only, 75
o
C
