B.6 din rail-dr01 – Delta Electronics AC Motor Drive VFD007S23A User Manual
Page 172
Appendix B Accessories|VFD-S Series
Revision August 2006, SE08, SW V2.61
B-17

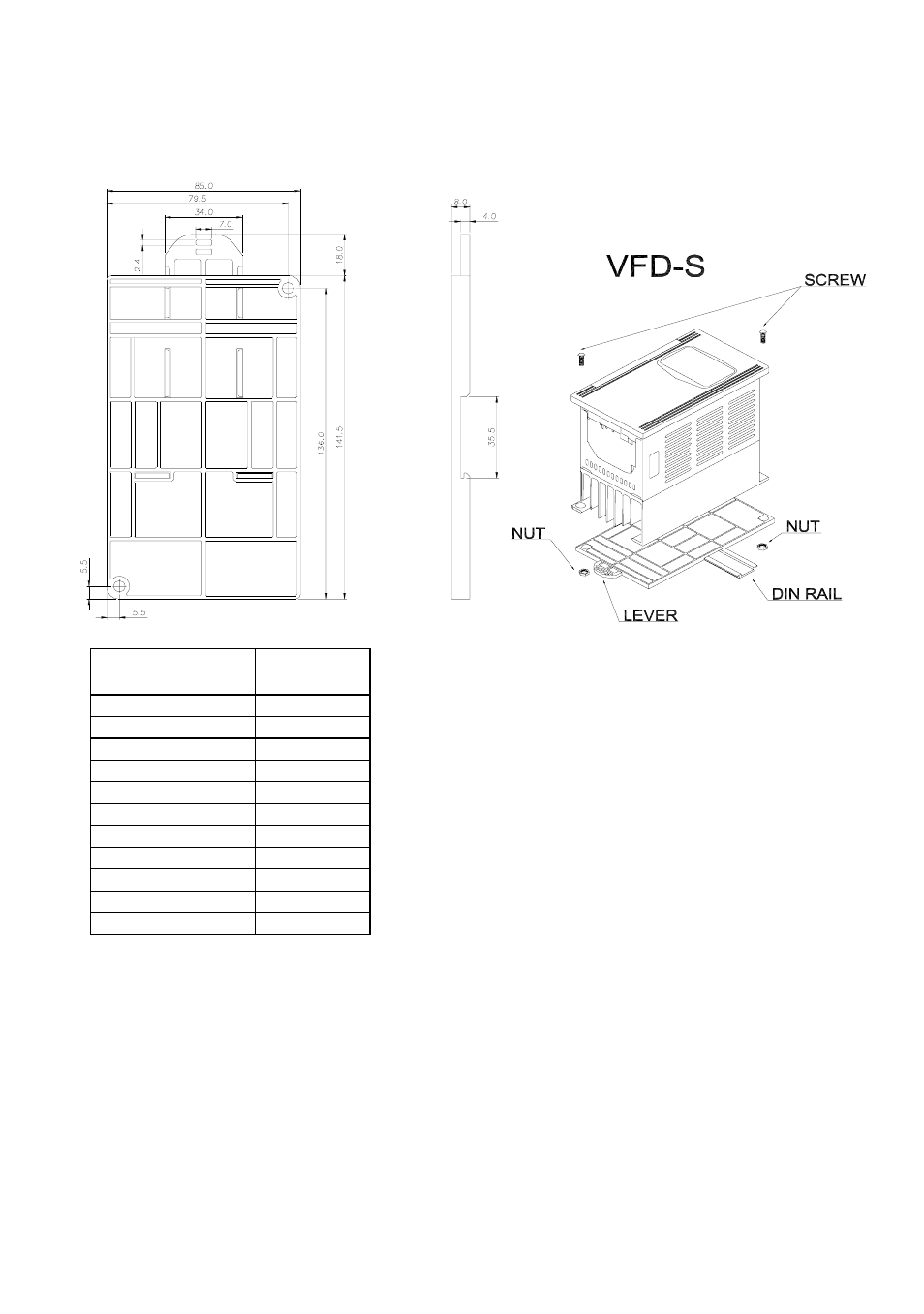

B.6 Din Rail-DR01
(Dimensions are in millimeter)
Models
Screw Size
VFD002S11A/B M4*22
VFD002S21A/B/E M4*22
VFD002S23A/B M4*22
VFD004S11A/B M4*12
VFD004S21A/B/E M4*12
VFD004S23A/B M4*12
VFD004S43A/B/E M4*12
VFD007S21A/B/E M4*12
VFD007S23A/B M4*12
VFD007S43A/B/E M4*12
VFD015S23D M4*12
To install the Din Rail Adapter use the specified
screws for different models. Refer to the above
chart.
To mount the drive on a Din Rail, place the drive
on the rail and push the lever toward the rail.
