Chapter 1 Introduction|VFD-S Series
Revision August 2006, SE08, SW V2.61
1-3

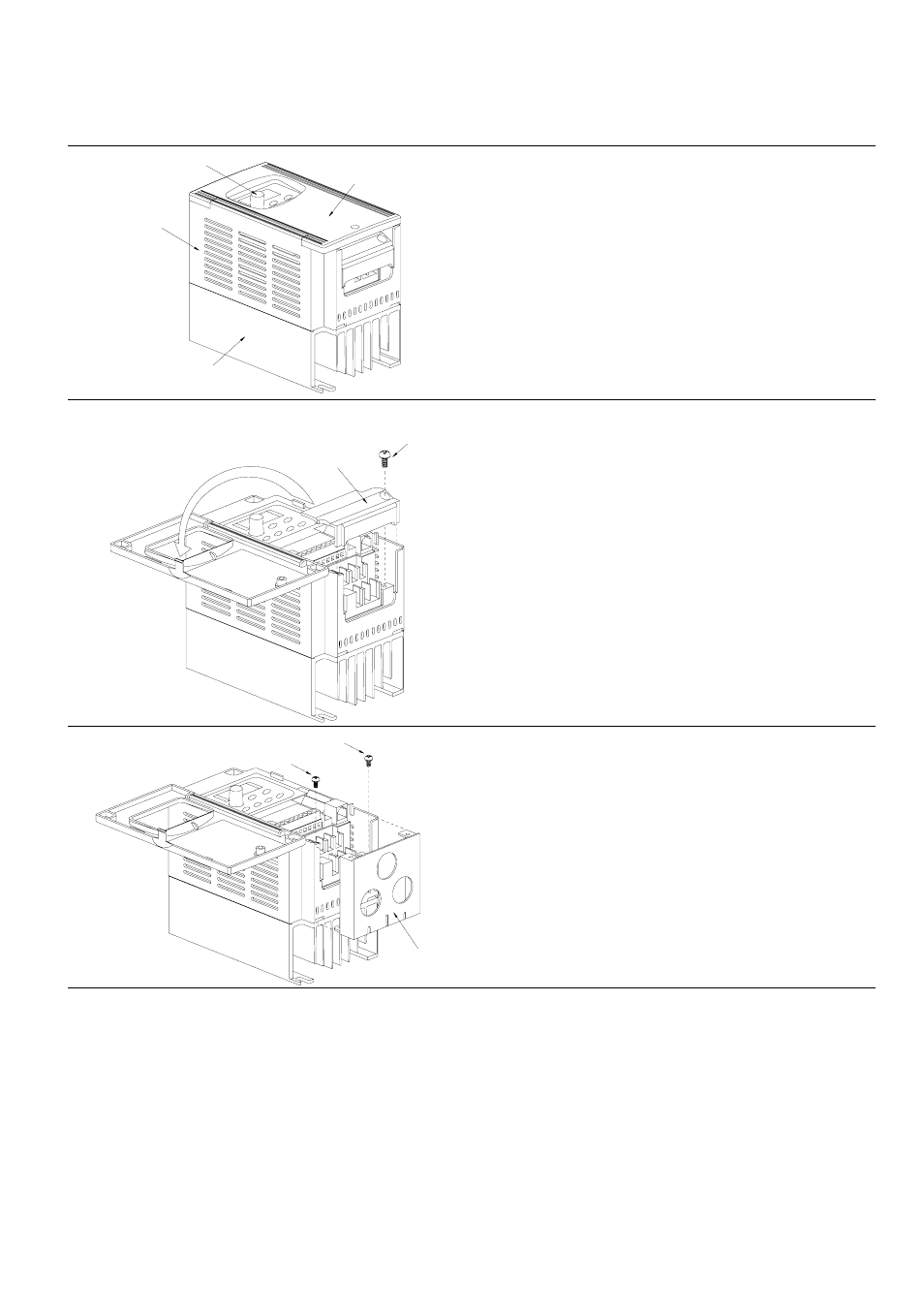

1.3 Installation Steps
CASE
HEAT SINK
COVER
KNOB
SCREW
DIVISION
PLATE
Installation Steps
1.
Remove front cover screw and open.
2.
Remove Division Plate. If using optional
conduit bracket, please refer to next
page.
3.
Connect AC Input Power and motor leads.
Never connect the AC drive output
terminals U/T1, V/T2, W/T3 to main AC
Input power.
4.
Reinstall Division Plate.
CONDUIT
BRACKET
SCREW
SCREW
For Optional Conduit Bracket:
Make sure to fasten both screws on conduit
bracket as shown in the drawing for safety
grounding purpose. Bring all the wires out
through the conduit bracket.
Screw Torque: 5 to 6 kgf-cm (4.3 to 5.2 in-lbf)
