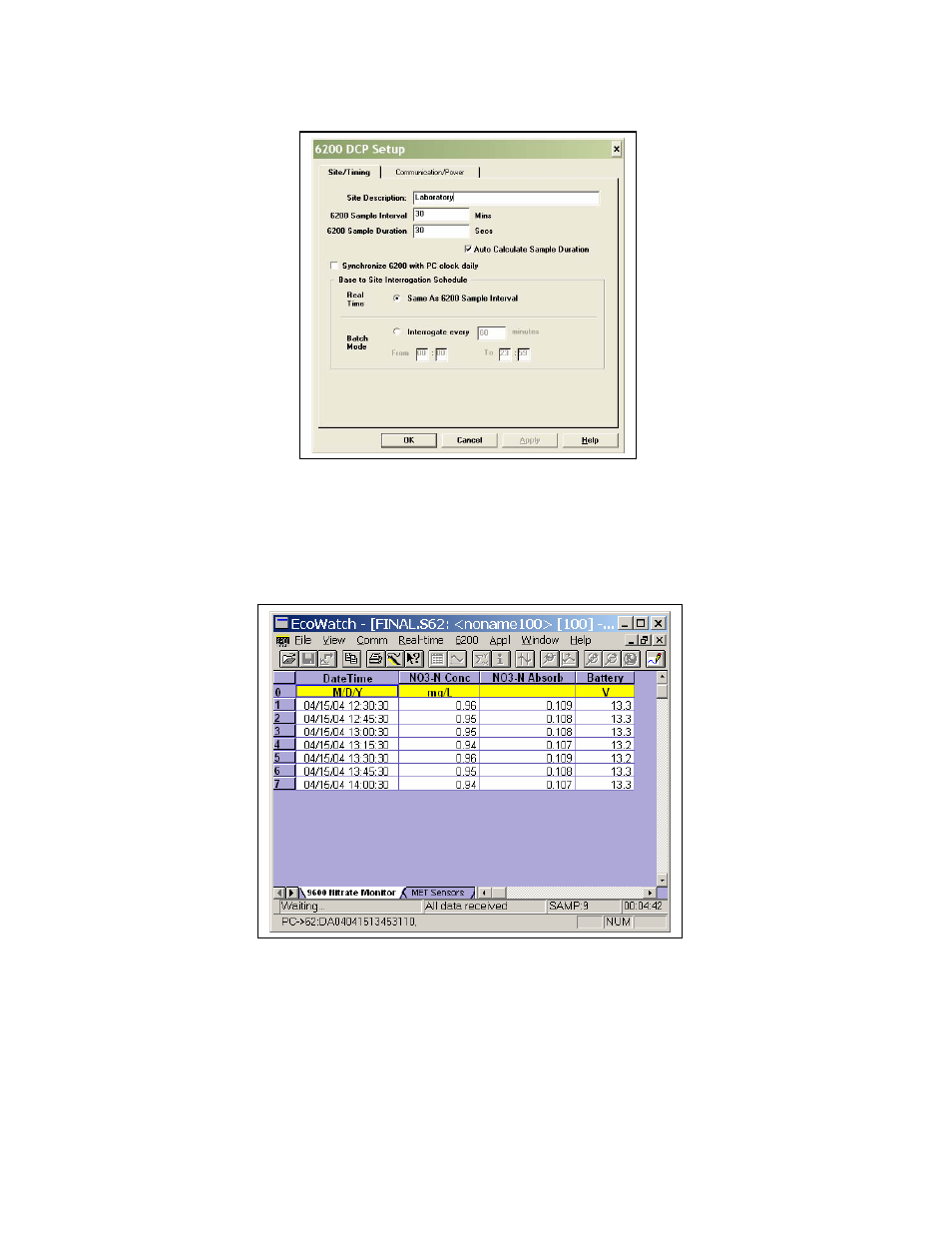

• After finalizing your entries in the dialog box above, click Apply and, after a period of about 30
seconds for reprogramming, the 6200/9600 interface will be completely set up and data will begin to
be acquired by the 6200 at your programmed interval. If the computer remains attached to the 6200,
data will be shown in the following form under the 9600 Nitrate Monitor tab at the bottom of the
display.
• After assuring that data is being acquired, remove the PC interface cable from the internal connector of
the 6200 and the system will continue to collect data at your site.
To upload the data from the 6200 to your PC or to set up the system for remote transmission of the data, see
the 6200 manual and the Help section of EcoWatch DCP. If you do not understand these operations,
contact Endeco/YSI for assistance. See above for contact information.
YSI Environmental 54 Model 9600 Nitrate Monitor
