Page 8: Camera address screen

8
C A M E R A
A D D R E S S
- N T S C
3 8 4 0 0 B P S
* * * * * -
* * * * *
* * *
X X X X X X X O
X X X X X X X
X X O X X
Camera address screen
P
A
B
C
D
WIPER
ZOOM
TELE
WIDE
FOCUS
FAR
NEAR
LENS SPEED
UP
DOWN
RIGHT
LEFT
LOW HIGH
DEF
AUX
AUTO
E
F
G
H
SELECT
MENU
GROUP
CH
SEQUENCE
F U N C T I O N
A L A R M
RESET HOLD
AF
POSITION
CONTROL
FREEZE
FULL
REMOTE CONTROLLER C-RM500
1
2
3
4
5
6
7
8
9
C
0
SET
Joystick
Clear key
Focus key
Zoom key
Set key
Numerical keypad
Menu start switch

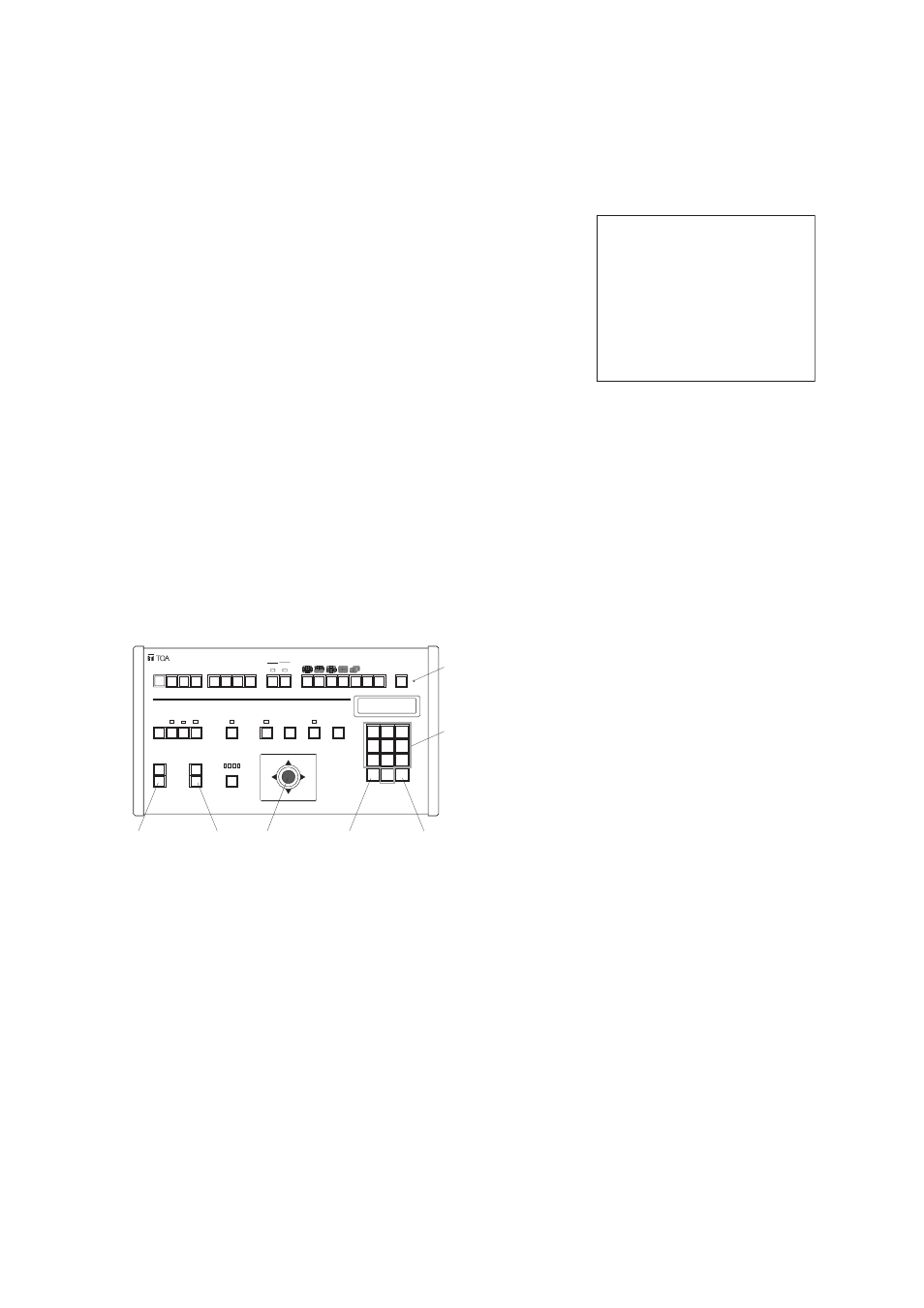

Use the joystick and each key on the C-RM500.
[ C-RM500 Top ]
2. BEFORE SETTING
2.1. Address Display When Turning Power On
When the camera’s power is turned on, the camera performs the initial operation (initializing operation) and
simultaneously the camera address appears on the monitor. After the completion of initial operation and
peripheral device connections, the camera can be controlled and the camera address screen will disappear.
Notes
• In the place of “
***
”, a camera address such as “001” will be
displayed.
The area on the screen at right will flash.
• The alphabets and numeral appearing in the place of “
*****-
*****
” of the screen are for maintenance, not the indication
caused by equipment failure.
2.2. Keys Used to Settings
Settings can be performed by the equipment itself to be controlled or from the remote controller connected to
the equipment.
