11.6. Resetting Tilt Angle Limits
When the camera’s vertical rotation is set to horizontal (0°
or –180°) with the joystick, the camera’s case may appear
at the top of the screen, causing a dark patch. Setting this

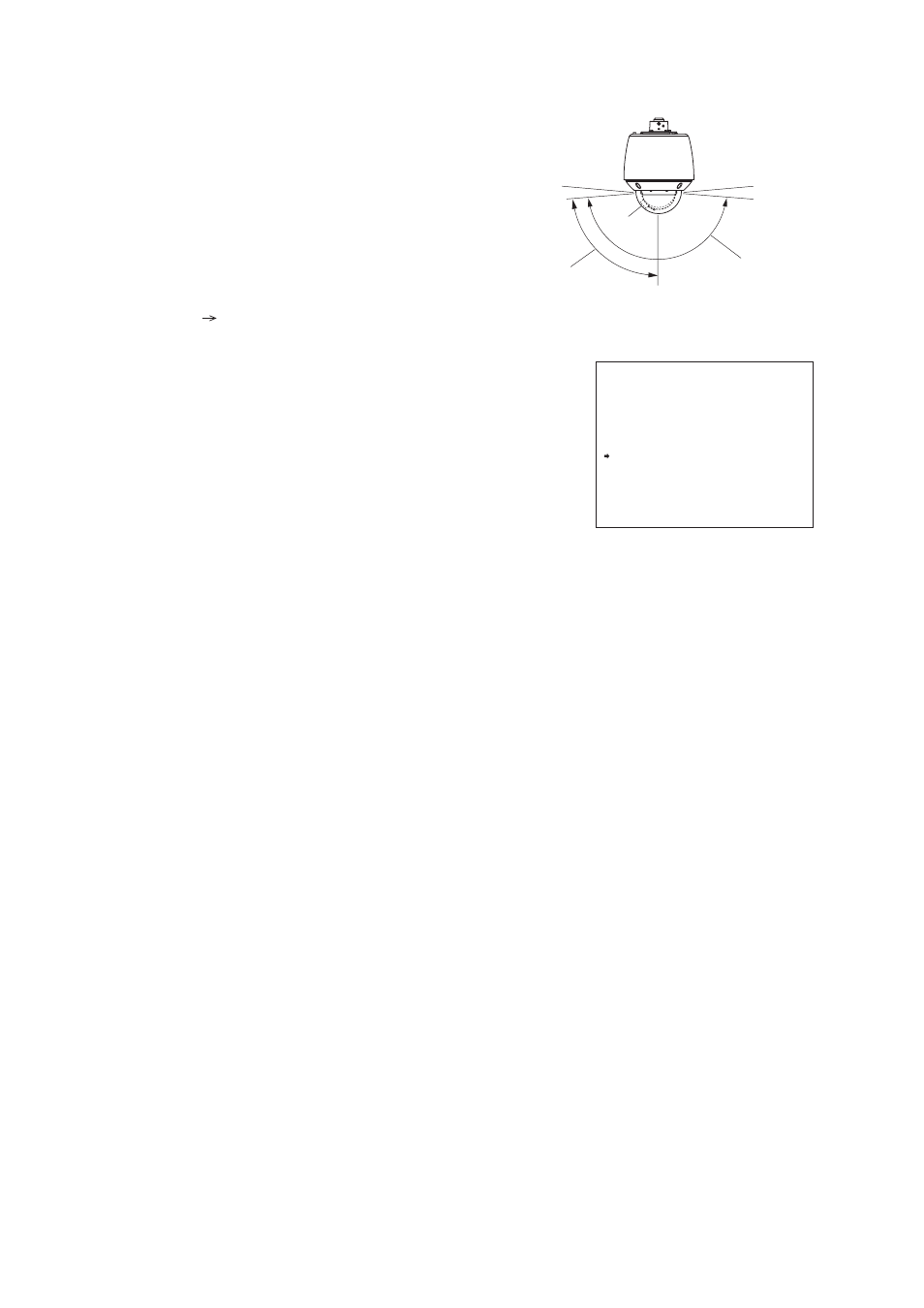

switch to the ON position limits the tilt angle, as shown at
right, and reduces the amount of case visible onscreen.
(Factory default : ON)
1. Select “UP LIMIT” on the Manual Setting screen, then
press the Set key.
The arrow
moves to “ON” (factory default).
2. Select “ON” or “OFF” with the joystick, then press the
Set key.
The Tilt Angle Limit status is then set.
( )
Z O O M S C A L A B L E P / T
M A X P / T S P E E D
P / T L I M I T S E T T I N G
*
M A N U A L
*
P / T L I M I T
F L I P
U P L I M I T
1 2 0
O F F
O N
O F F
L E F T
O N
Manual setting screen
5
-5
-185
-175
-90
Lens
When the C-CC514
or C-CC714 is mounted
When the C-CC564,
C-CC574, C-CC764
or C-CC774 is mounted
