Thank you for purchasing TOA's Substation.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
Note: For operation of the units, refer to the N-8000 series operating instructions.
1. GENERAL DESCRIPTION
The RS-450, RS-460, RS-470 are substations to be connected to the N-8400RS Substation Interface Unit.
The RS-450 features indoor design, the RS-460 robust indoor design, and the RS-470 robust design with
Dust/Water Protection Conforming to IP54 level.
Warning
This is a class A product. In a domestic environment this product may cause radio interference in which case
the user may be required to take adequate measures.

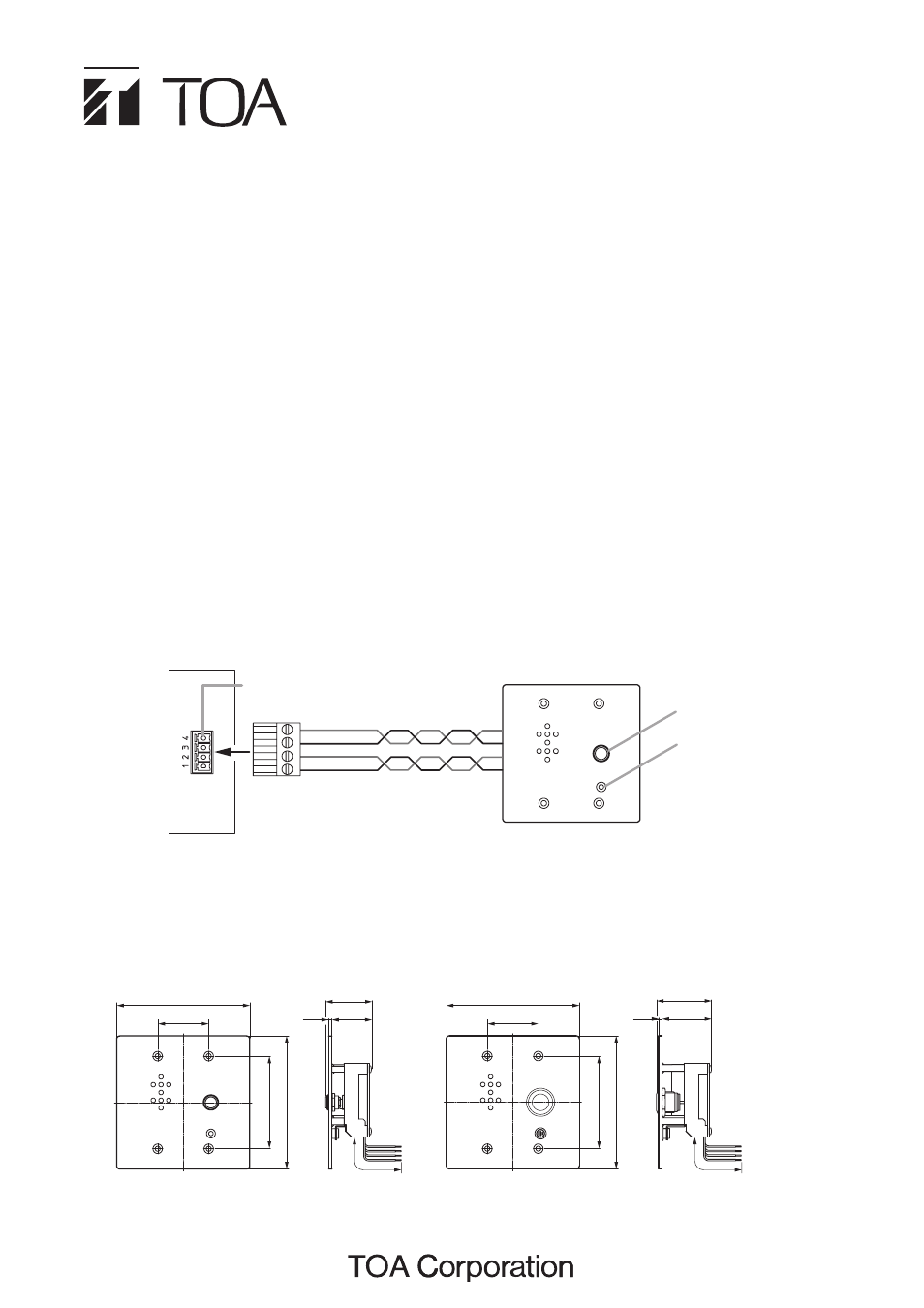

2. CONNECTIONS
RS-450
RS-460
RS-470
SUBSTATIONS
INSTALLATION MANUAL
Note: The figure represents the RS-450.
RS-450, RS-460,
or RS-470
Call button
Microphone
N-8400RS
Substation interface unit
Substation connection terminal
Line 1 : Brown, Line 2: Red,
Line 3 : Orange, Line 4: Yellow
Yellow
Orange
Red
Brown
Two pair of twisted pair cable
3. INSTALLATION
[RS-450 dimensional diagram] [RS-460/470 dimensional diagram]
120
49.5
44.5
200 or less
3
41.5
35.5 3
46
120 83.5
120
46
120 83.5
Unit: mm
200 or less
