Toa C-BC41 - Manual

Be sure to leave the installation of the unit to your nearest
TOA dealer or installer because the installation requires
expert knowledge. Inappropriate installation may cause fire,
electric shock, personal injury and/or property damage.
Do not expose the unit to rain or an environment where it
may be injuried by sea-breezes or corrosion gas.
Deterioration of the fittings may result in the unit falling down
and causing personal injury.
Do not mount equipment more than maximum load limitation
of the unit. Doing so may result in the unit falling down and
causing personal injury.
Tighten the fixing screws or components of the unit securely.
Doing otherwise may result in the unit falling down and
causing personal injury.
Install the unit only in a location that can structually support
the total weight of the camera and this unit. Doing otherwise
may result in the unit falling down and causing personal injury
and/or property damage.
Leave all periodical servicing to your nearest TOA dealer or
installer.
Corrosive unit or screws may result in the unit falling down
and causing personal injury and/or property damage.
Never rub the edge of the metal by your hands. Rubbing it
strongly may cause personal injury.
Do not fall down from the unit, nor use it as a foot stand.
Doing so may cause personal injury.
GENERAL DESCRIPTION
The TOA Camera mounting brackets, suitable for indoor use,
enable easy adjustment and fixture of the camera angle.
They allow the connection cables to run through the prop pipe
for an aesthetic appearance.
HANDLING PRECAUTIONS
To clean the unit, wipe with a soft cloth lightly soaked in a
neutral detergent and wrung dry. Never use volatile solvents
such as thinner or benzine, as these may damage the unit’s
finish or cause the paint or indication to peel, or change in
color.
MOUNTING
1. Determine the hole positions to fix the bracket base.
2. Make four holes on a wall or ceiling. (When using wood
screws, make four markings on a wall or ceiling.)
3. When running the connection cables through the prop pipe,
insert them into the cable entry hole at the bottom of the
bracket base, and then pull out them from the cable feed
hole of the prop pipe.
4. Fix the bracket base with four commercial fixing screws.
5. Loosen the roulette and adjust the lengh of the prop pipe.
(C-BC11, C-BC41)
6. Mount the camera to the camera pedestal.
7. Loosen the lock lever and determine the angle and direction
of the camera. Then, tighten the lock lever again.

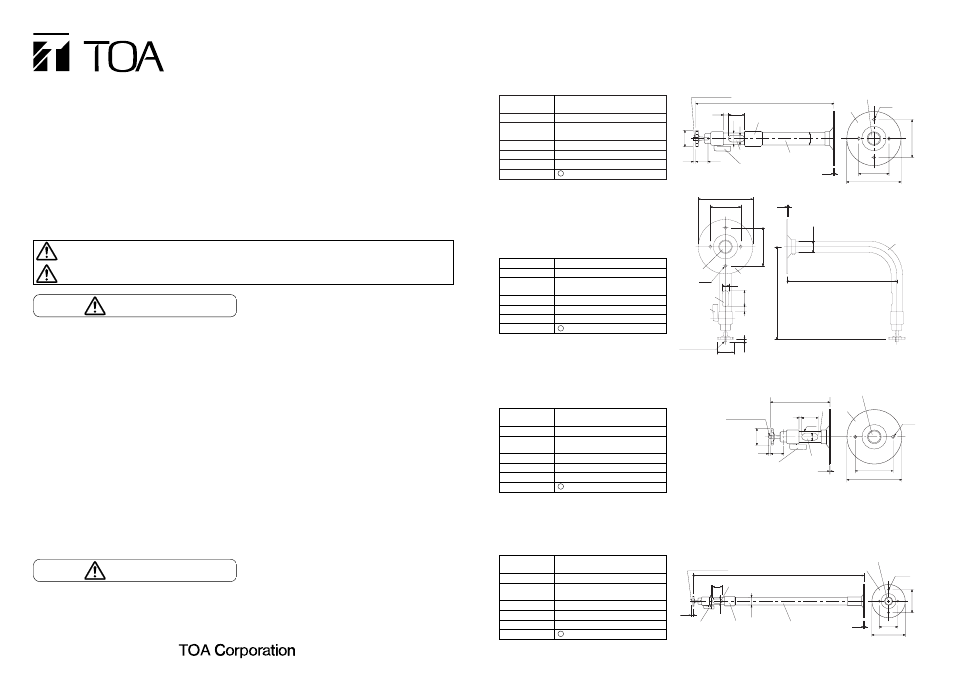

SPECIFICATIONS AND DIMENSIONS (unit: mm)
C-BC11 Ceiling Mounting Bracket
The C-BC11 Extendable ceiling mounting bracket allows the connection cables to run through the prop pipe for an aesthetic
appearance. It’s overall length can be extended up to 465 mm (minimum 305 mm).
Type Ceiling mount
(Extendable two-section type)
Material Rolled steel, white alumite pipe
Panning Angle Vertical : 90°up to 15°down
Horizontal: 360°
Maximum Load 4 kg
Weight 360 g
Finish Metallic silver
Accessory Truss head screw (M4x35)... 4
INSTRUCTION MANUAL
C-BC11, C-BC21
C-BC31, C-BC41 CAMERA MOUNTING BRACKETS
83.5
66.7
ш120
4-ш7
t 1.6
ш 28
ш 25
36
15 5.5
Camera Pedestal
Cable Feed Hole
Lock Lever Roulette Prop Pipe
Bracket Base
Cable Entry Hole
Min. length: 617 Max. length: 1004
Min. length: 305 Max. length: 465
Camera Pedestal
Bracket Base
Cable Entry Hole
Lock Lever
Roulette
Approx. 11
Approx. 27
Prop Pipe Cable Feed Hole
Camera Pedestal
Lock Lever
Cable Feed Hole
Prop Pipe Bracket Base
Cable Entry Hole
ш120
ш 36
83.5 t 1.6
28 5.5
ш25
36 6
15
130
2-ш7
SAFETY PRECAUTIONS
Be sure to read the instructions in this section carefully before use.
Make sure to observe the instructions in this manual as the conventions of safety symbols and messages regarded as very
important precautions are included.
We also recommend you keep this instruction manual handy for future reference.
Safety Symbol and Message Conventions
Safety symbols and messages described below are used in this manual to prevent bodily injury and property damage which could
result from mishandling. Before operating your product, read this manual first so you are thoroughly aware of the potential safety
hazards as well as understand the safety symbols and messages.
WARNING
Indicates a potentially hazardous situation which, if mishandled, could result in death or serious
personal injury.
Indicates a potentially hazardous situation which, if mishandled, could result in moderate or minor
personal injury, and/or property damage.
WARNING
CAUTION
CAUTION
Type Wall or ceiling mount ("L" type)
Material Rolled steel, white alumite pipe
Panning Angle Vertical : 90°up to 15°down
Horizontal: 360°
Maximum Load 4 kg
Weight 340 g
Finish Metallic silver
Accessory Truss head screw (M4x35)... 4
Type Wall or ceiling mount
(No extendable type)
Material Rolled steel, white alumite pipe
Panning Angle Vertical : 90°up to 15°down
Horizontal: 360°
Maximum Load 4 kg
Weight 240 g
Finish Metallic silver
Accessory Truss head screw (M4x35)... 2
Type Ceiling mount
(Extendable two-section type)
Material Rolled steel, white alumite pipe
Panning Angle Vertical : 90°up to 15°down
Horizontal: 360°
Maximum Load 4 kg
Weight 520 g
Finish Metallic silver
Accessory Truss head screw (M4x35)... 4
C-BC21 Wall or Ceiling Mounting Bracket
The C-BC21 Wall or ceiling mounting bracket is a L-
shaped bracket, allowing the connection cables to
run through the prop pipe for an aesthetic
appearance.
C-BC31 Wall or Ceiling Mounting Bracket
The C-BC31 Wall or ceiling mounting bracket allows
the camera to be installed adjacent to a wall or
ceiling, and the connection cables to run through the
prop pipe for an aesthetic appearance.
C-BC41 Ceiling Mounting Bracket
The C-BC41 Extendable ceiling mounting bracket allows the camera to be suspended from the ceiling of high beam, and the
connection cables to run through the prop pipe for an aesthetic appearance. It’s overall length can be extended up to 1004 mm
(minimum 617 mm).
