854 Sprayer Control

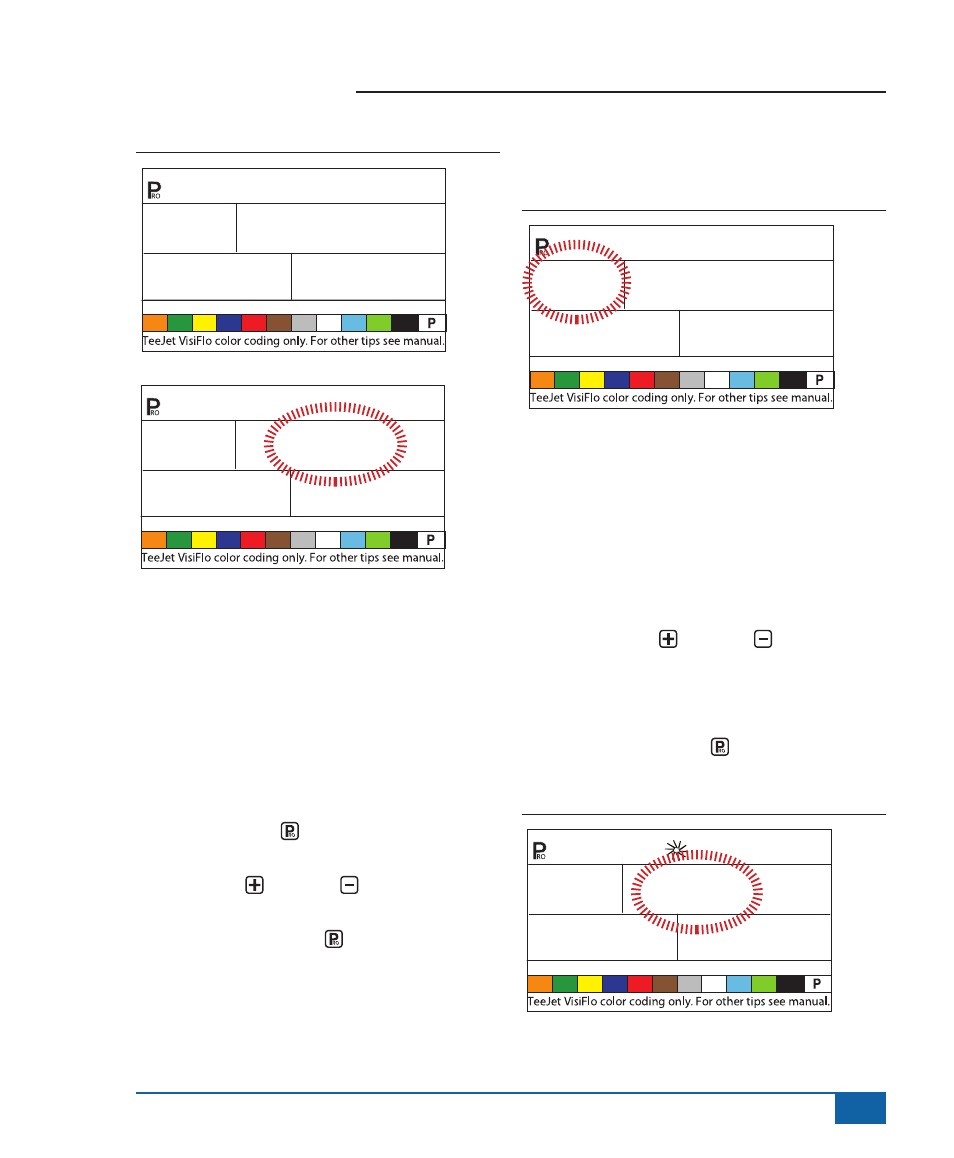

Figure 4-10: Automatic Calibration
4.00
1-10 88
0
PSI
4.13
REF nA
0
PSI
Pressure.Transducer.Maximum.
Rating.(P.HI)
The Pressure Transducer Maximum Rating is used
to establish the maximum rating of the pressure
transducer in the system. This number can be found
stamped on the pressure transducer itself.
• If the transducer has a maximum rating of 145
psi (10 bar) and the number is shown on the
display, advance to the next step by pressing
the PROGRAM key.
• If the maximum rating is 363 psi (25 bar), use
the PLUS or MINUS keys to change the
value.
• Press the PROGRAM key to advance to the
next step.
NOTES: Do not change the value to “0” even if
there is no pressure sensor installed.
The Maximum Pressure cannot be set lower
than the Minimum Pressure.
Figure 4-11: Pressure Transducer Maximum Rating
PrS SEnS
145
PSI
PHi
Flow.Meter.Installed
NOTE: This step may not appear if other
programming steps have indicated that a
flow sensor is present.
The Flow Meter Installed step indicates to the
console whether a flow meter has been installed on
the sprayer.
• Use the PLUS or MINUS keys to adjust
the value.
• Select “Yes” if a flow meter is installed. Select
“No” if a flow meter has not been used.
• Press the PROGRAM key to advance to the
next step.
Figure 4-12: Flow Meter Installed
FLO SEnS
YES
