Page 36
Control Panel Installation 151204
3-26
2.
Remove the 5824 circuit board from the base by pushing outward on the base snap retaining tabs and lifting
the circuit board out.

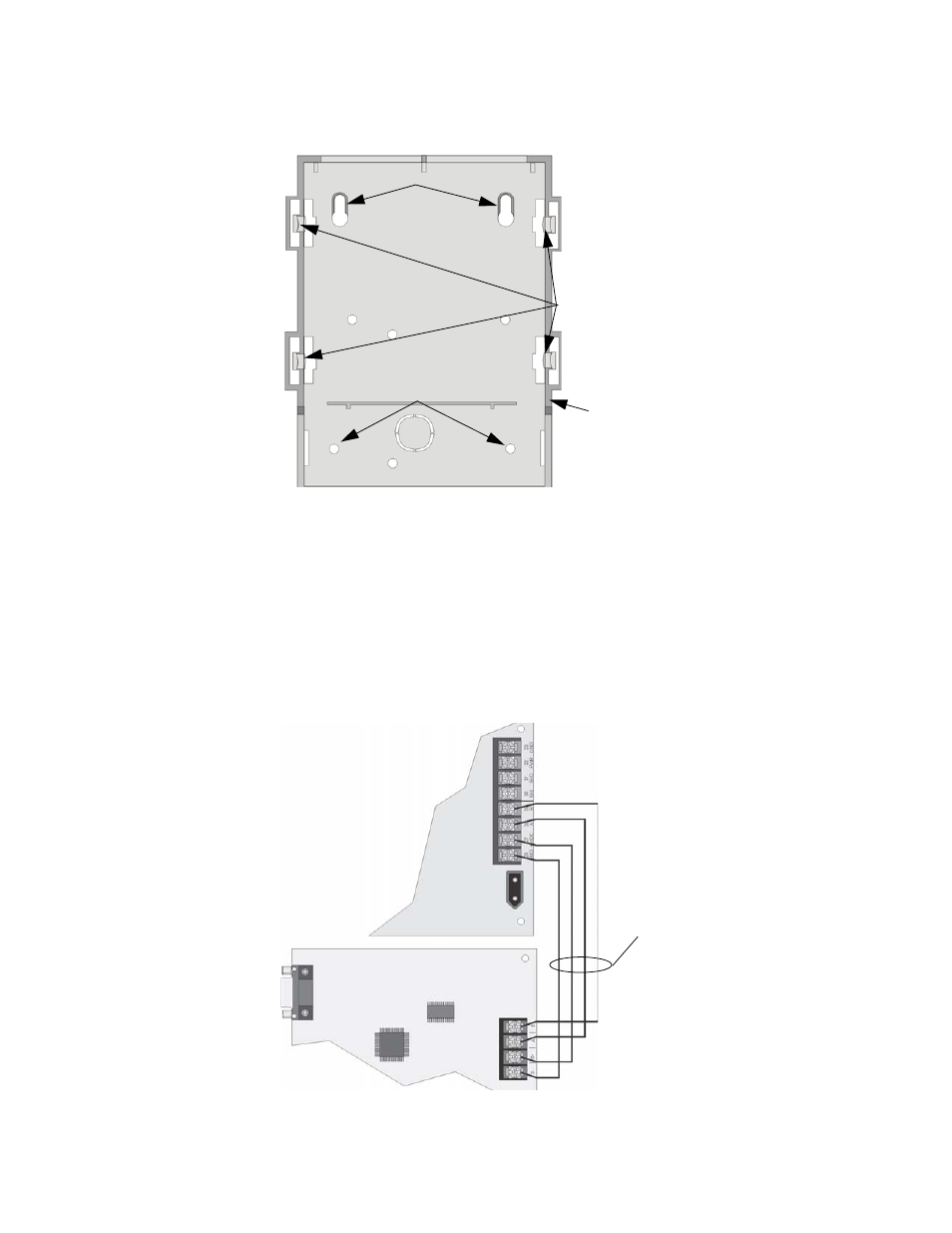

Figure 1: 5824 Circuit Board And Plastic Base
3.
Mount the plastic base.
4.
Replace the circuit board in the plastic base.
Note: It may be necessary to connect the wiring to the circuit board before the board is replaced in the base. See
Section 3.14.5.2.
5.
Connect the 5824 to the 5208.
6.
Set the device ID (see Section 3.14.1). See also Figure 3-25 for ID selector switch location.
3.14.5.2 5824 SBUS Connections
Figure 3-24 illustrates how the 5824 connects to the 5208 control panel.
Figure 3-24 5824 Connections
Snap
Base
Retaining Tabs
Mounting Holes
Mounting Holes
Supervised
Power Limited
5824
Control
Panel
