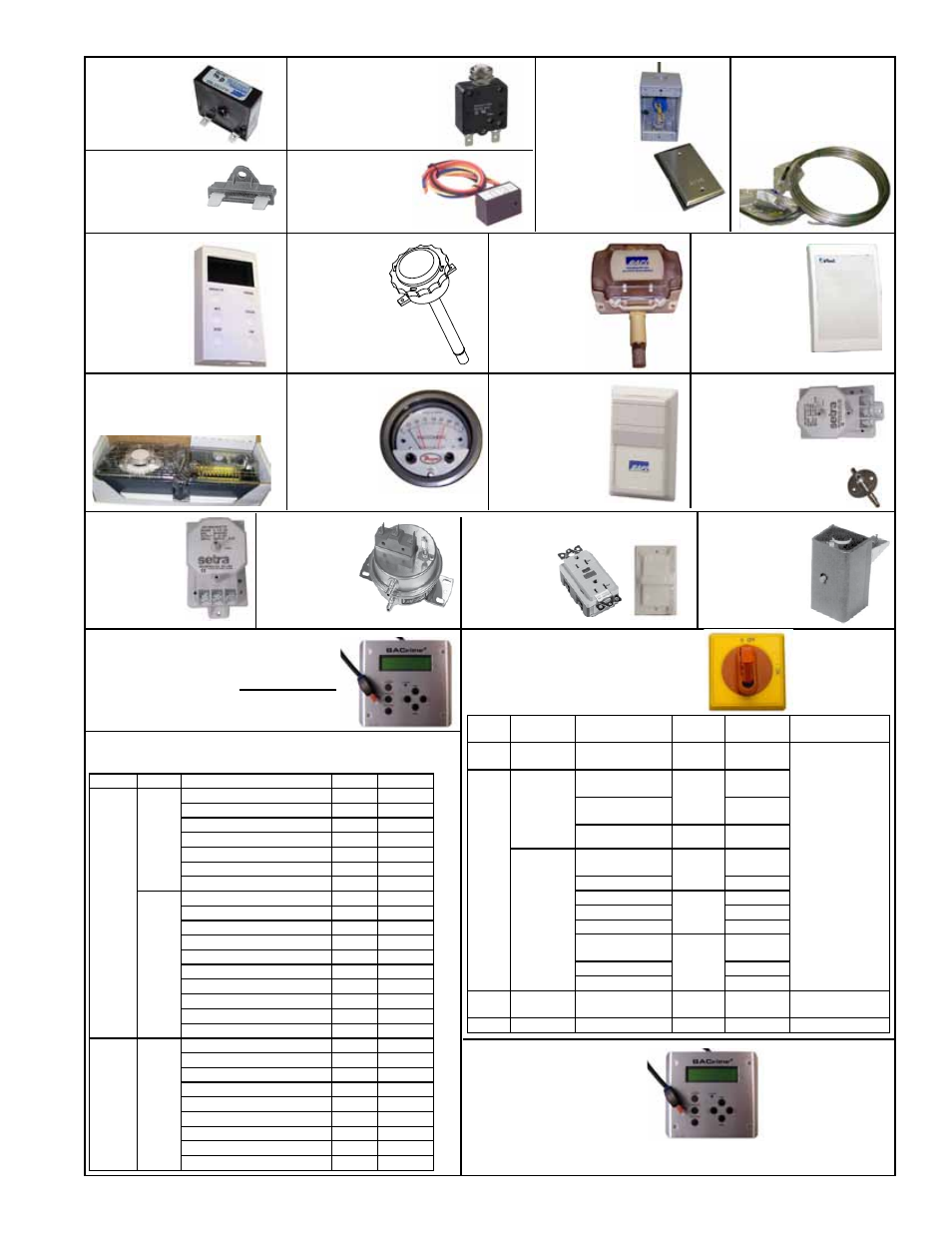

Reznor MAPSIV RECC Parts Manuals - Manual (Page 9)

Form P-MAPS III&IV, PN 262958R5, Page 9
Code 24 -
Time Delay
Relay, P/N
221388
Codes
30 & 33 -
Sensor for
Discharge
or Return
Air, P/N
222753
Code 31 - Dry Bulb
Temperature Sensor
used on GF9, BE9,
&BE10 - P/N 223111
Code 32 -
Space
Temperature
Sensor,
P/N 222756
Code 25 -
Limit Control,
P/N 82414
Code 34 -
Return Air
Humidity
Sensor,
P/N 234907
Code 35 -
Outside Air
Humidity
Sensor,
P/N 222754
Code 36 -
Building
CO2
Sensor,
P/N 234820
Code 37 - Photoelectric
Smoke Detector (in
ductwork), P/N 159553
Code 38 -
Photohelic
Dirty Filter
Sensor,
P/N
255784
Code 39 -
Space
Humidity
Sensor,
P/N 234822
Code 40 -
Duct Static
Pressure
Transducer,
P/N 234818
Sensor Port,
P/N 234821
Code 41 -
Building
Static
Pressure
Transducer,
P/N 234819
Code 42 -
Dirty Filter
Pressure
Switch,
P/N 105507
Code 50 - Convenience Outlet
Receptacle,
P/N 96912
Cover, P/N
209010
Code 51 -
Ductstat
or Firestat
(Return or
Discharge),
P/N 42782
Code 53 - Disconnect
Switch P/N’s in Unit-
Mounted Option BA
Code 54 - Raintight Disconnect Switch
(Option CP) - Requires field installation.
Code 52 - Remote
Display for Digital
Controller, P/N
234835 (Same as
Option RB3)
Cabinet
Size
MAPS®
Modesl
Size Voltage 250A or less
(in BA6)
Dual Emergency
Power (in BA7)
A All Models All
208, 230,
460, 575
207678
N/A
B
RCB/RDB/
RDCB/
RDDB;
RCC/RDC/
RDCC/
RDDC
118, 136,142,
160,162 184
208, 230
207678
186, 210, 200,
222, 224, 236-
207679
All 460, 575 205907
RECB/
REDB;
RECC/
REDC by
Electric
Heat
Section
Size
15, 20, 25, 30, 35,
39, 50 208, 230
207679
60, 75 222422
20, 25, 30, 35, 39
460
205907
50, 60 205908
75, 88 222422
20, 25, 30, 35, 39,
50, 60
575
205907
75 205908
88 207678
C All Models All
208, 230,
460, 575
222422
60A, P/N 205906
250A, P/N 222422
D All Modesl All 460, 575 207679 N/A
Where Voltage Description P/N Same as
Installed
in USA
240
Max
60 amp, 240 volt, non-fusible 161469 CP 30
100 amp, 240 volt, non-fusible 162834 CP 31
200 amp, 240 volt, non-fusible 155007 CP 32
60 amp, 240 volt, fusible 89932 CP 17
100 amp, 240 volt, fusible 90973 CP 18
200 amp, 240 volt, fusible 91076 CP 19
400 amp, 240 volt, fusible 223658 CP 72
600
Max
30 amp, 600 volt, non-fusible 50367 CP 7
60 amp, 600 volt, non-fusible 155012 CP 38
100 amp, 600 volt, non-fusible 155013 CP 39
200 amp, 600 volt, non-fusible 155014 CP 40
400 amp, 600 volt, non-fusible 223660 CP 78
30 amp, 600 volt, fusible 50368 CP 8
60 amp, 600 volt, fusible 90974 CP 20
100 amp, 600 volt, fusible 155010 CP 36
200 amp, 600 volt, fusible 155011 CP 37
400 amp, 600 volt, fusible 223659 CP 76
Installed
in
Canada
600
Max
30 amp, 600 volt, non-fusible 208054 CP 59
60 amp, 600 volt, non-fusible 208056 CP 61
100 amp, 600 volt, non-fusible 208058 CP 63
200 amp, 600 volt, non-fusible 208060 CP 65
30 amp, 600 volt, fusible 208046 CP 42
60 amp, 600 volt, fusible 208048 CP 44
100 amp, 600 volt, fusible 208050 CP 46
200 amp, 600 volt, fusible 208052 CP 48
400 amp, 600 volt, fusible 223661 CP 80
8” probe
Power
Supply,
P/N 256654
Display,
P/N 222189
Code 27 -
PAM4 Relay,
P/N 222482
Code 26 - Thermal
Circuit Breaker,
P/N 262374
Code 55 - Hand Held
Display, Option RB4,
P/N 258452
