Form P-MAPS III&IV, PN 262958R5, Page 26
1/2” Sheetmetal Screws
(Qty 9), P/N 11813
Hood Top, P/N 214411
(edge must be under the cabinet top) 1/2” Sheetmetal
Screws (Qty 8,
4 per side)
P/N 11813
Top Panel
Slope Section,
P/N 214412
1/2” Sheetmetal Screws
(Qty 10, 5 per side)
P/N 11813
Left Side Panel,
P/N 194272
1/2” Sheetmetal
Screws (Qty 4, 2
per side) P/N 11813
3/4” Sheetmetal
Screws (Qty 2,
1 per side)
P/N 99542
Hood Bottom
P/N 214416
Filter Frame Assembly, P/N 214414
- holds (4) 20x25x1 permanent
aluminum filters, P/N 101610
1/2” Sheetmetal Screws
(Qty 4, 2 per side), P/N 11813
1/2” Sheetmetal
Screws (Qty 2)
P/N 11813
Right Side
Panel,
P/N 194273

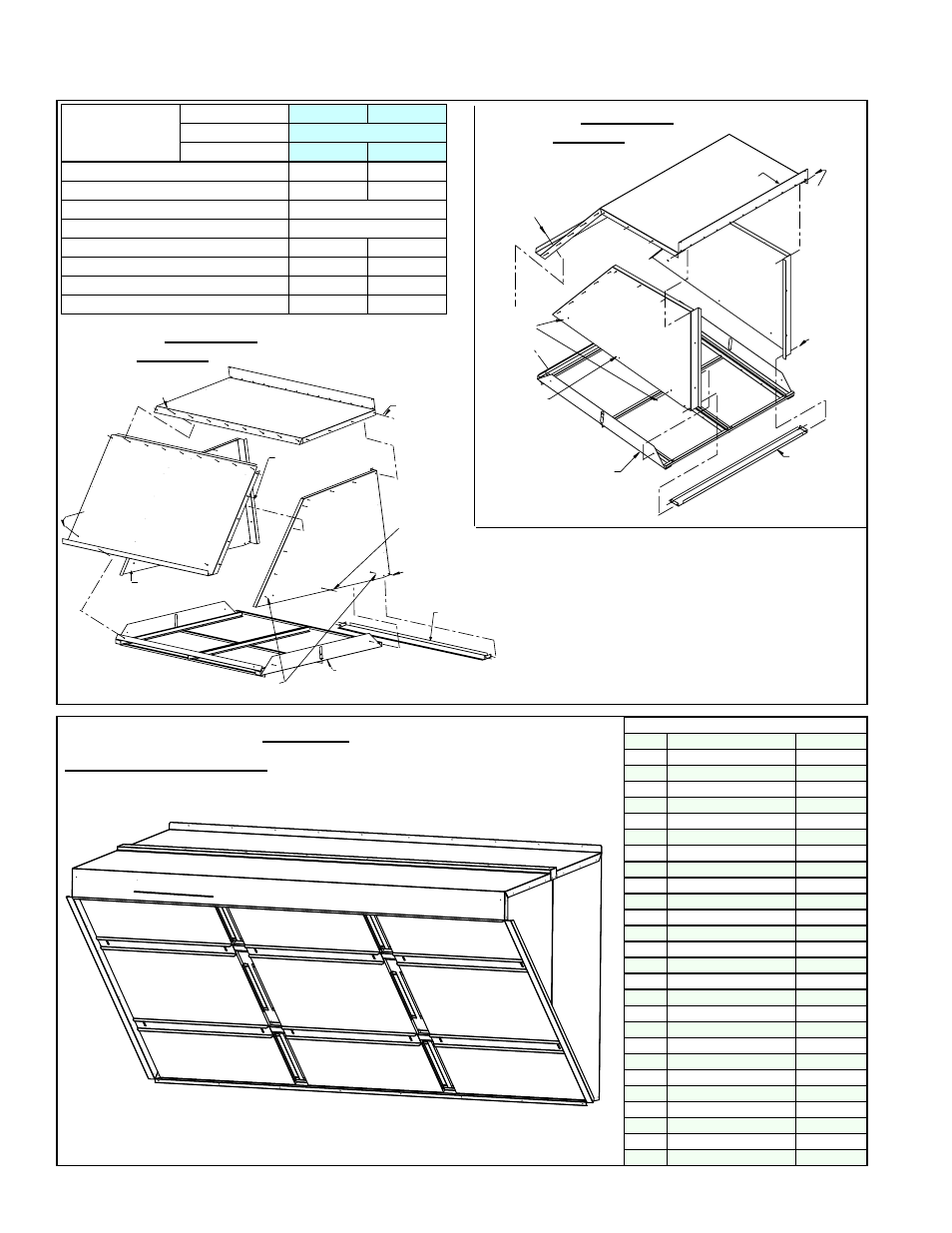

Assembly of Option AS19 Outside Air Hood for
MAPS ® III Cabinet B
Description
Cabinet Size A B
Hood Option AS19
Package P/N 215624 215625
Hood Top (1) 214417 (1) 214411
Hood Top Slope -- (1) 214412
Hood Right Side (1) 194273
Hood Left Side (1) 194272
Hood Bottom (1) 214415 (1) 214416
Filter Rack Assembly (1) 214413 (1) 214414
Permanent Aluminum Filter 18 x 20 x 1 (4) 194903 --
Permanent Aluminum Filter 20 x 25 x 1 -- (4) 101610
Components of Pkg P/N 222657
Qty Description P/N
1 Top (Section 1) 222689
1 Left Side (Section 1) 222697
1 Right Side (Section 1) 222694
1 Bottom 222692
1 Left Side (Section 2) 222696
1 Right Side (Section 2) 222693
1 Top (Section 2) 222690
1 Top Seal 222691
1 Top Filter Support 222701
1 Top Filter Clip 222702
1 Bottom Filter Support 222703
1 Bottom Filter Clip 222704
1 Left Side Gutter 222698
1 Right Side Gutter 222695
2 Vertical Supports 222700
2 Horizontal Supports 222699
12 Clip-on Receptacles 221262
12 Filter Stops 222705
12 Filters, 16x16x1 104102
6 Filters, 16x25x1 101609
6 Filter Retainers 222706
12 Wing Head Screws 205707
12 Nylon Retainers 205709
150 Sheetmetal Screws 11813
20 Self-drilling Screws 37661
1 tube Silicone 53335
(2) P/N 104102,
16x16x1
(2) P/N 104102,
16x16x1
(2) P/N 104102,
16x16x1
(2) P/N 104102,
16x16x1
(2) P/N 104102,
16x16x1
(2) P/N 104102,
16x16x1
(2) P/N 101609,
16x25x1
(2) P/N 101609,
16x25x1
(2) P/N 101609,
16x25x1
Inlet View - Option AS16, MAPSIII Size D
CODE 133 - Outside Air Hood, Option AS16 and Option AS19 by Cabinet Size (cont’d)
Hood components are listed by cabinet size and option code. See pages 3-4 for cross-reference of model/size and cabinet size.
Option AS16 Hood for Cabinet D Pkg P/N 222657
Inlet View of Installed Hood - Components are listed on the right.
Instructions are included in the option package and are on the website
(www.RezSpec.com).
1/2” Sheetmetal
Screws (Qty 2)
P/N 11813
Left Side
Panel,
P/N 194272
3/4”
Sheetmetal
Screws
(Qty 2,
1 per side)
P/N 99542
Filter Frame Assy,
P/N 214413 -
Holds four P/N 194903,
18x20x1 permanent
aluminumfilters.
Hood
Bottom
P/N 214415
1/2”
Sheetmetal
Screws
(Qty 4 -
2 per side)
P/N 11813
Right Side
Panel,
P/N 194273
1/2”
Sheetmetal
Screws
(Qty 18 -
9 per side)
P/N 11813
Hood T
op, P/N 214417
(edge must be
under the cabinet top)
1/2”
Sheetmetal
Screws
(Qty 4,
2 per side)
P/N 11813
Assembly of Option AS19 Outside Air Hood for
MAPS ® III Cabinet A
