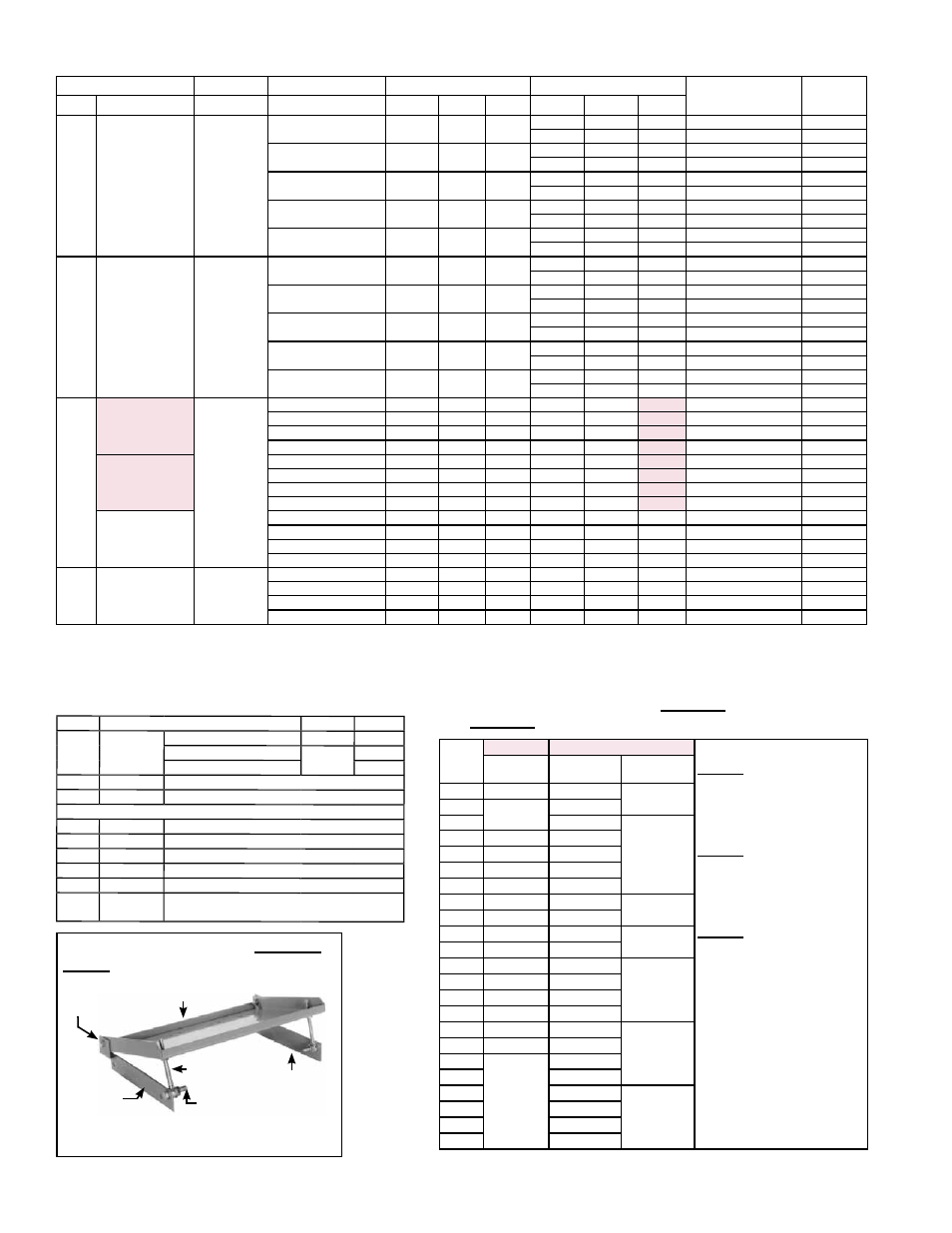

Form P-MAPS III&IV, PN 262958R5, Page 16
Motor Base Assembly for Cabinets
A or B
80
81
83 and 88
85, 86, 87
82
84, 86, 87
Base assembly is either mounted directly on
the blower or on a pedestal beside the blower.
Motor Mounting Components
CODE Component and Location Cabinet P/N
80 Motor
Base
Mounted on a 7” blower A 209153
Mounted on a 9” blower A or B 209154
Mounted on a pedestal 209154
81 Left Side 12576
82 Right Side 209155
Hardware:
83 Rod Bolt (2) 12489
84 Bolt (2) 16248
85 Bolt (2) 16247
86 Nuts (6) 6554
87 Washers (6) 1087
88 Threaded
Inserts
(4) 124260
Blowers or Plenum Fan and Motor Mounting
Motor
Frame
Size
89 - Base 90 - Motor Base Plate Motor Base Hardware:
1/2 inch
(4) Cap Screws, P/N 45548
(4) Flat Washers, P/N 134475
(4) Lockwashers, P/N 45549
(4) Hex Nuts, P/N 45550
3/8 inch
(4) Cap Screws, P/N 32253
(4) Flat Washers, P/N 22761
(4) Lockwashers, P/N 5197
(4) Hex Nuts, P/N 1438
1/4 inch
(4) Cap Screws, P/N 16246
(4) Flat Washers, P/N 176531
(4) Lockwashers, P/N 96854
(4) Hex Nuts, P/N 7328
C or D C Cabinet D Cabinet
48 213587
221315
56
208380
208742
56H
221316
143T 208381 208742
145T 208382 208742
182 208383
184 208384
182T 208383 208742
221315
184T 208384 208742
213 208385
221316
215 208386
213T 208385 220928
221315
215T 208386 None
254U 221137
256U 222429
254T 221137 220928
221316
256T 222429
284U
Special
286U
284T
221315
286T
284TS
286TS
Motor Base and Components for Cabinet C (page 17, top left)
and Cabinet D (page 17, top right)
Motor AK Option Drive AM Option CODE 75 - Motor Pulley CODE 76 - Blower Pulley CODE 77 - Belt
(See Note for P/N’s.)
Serial No.
CODE (See
page 2.) HP Opt AL (Voltage) (See Key, page 12.) P/N Model Bore P/N Model Bore
3 39
AK5 (208/3);
AK6 (230/3);
AK7 (460/3);
AK8 (575/3)
9, 10, 11, 12 106748 1VL40 7/8
101414 BK130 1 “B-section” 3.8 ft UJ
208755 BK130H 1-3/16 “B-section” 3.8 ft SK
13, 14, 15, 16, 17 106748 1VL40 7/8
202654 BK105 1 “B-section” 3.8 ft VJ
208756 BK105H 1-3/16 “B-section” 3.8 ft RK
18, 19, 20, 21, 22 37451 1VM50 7/8
16153 AK104 1 “A-section” 3.8 ft AK
16154 AK104 1-3/16 “A-section” 3.8 ft UK
23, 24, 25, 26, 27,
28, 29
37451 1VM50 7/8
19111 AK84 1 “A-section” 3.8 ft BK
111862 AK84 1-3/16 “A-section” 3.8 ft VK
30, 31, 32, 33, 34,
35, 36
37451 1VM50 7/8
105483 AK69 1 “A-section” 3.8 ft CK
105484 AK71H 1-3/16 “A-section” 3.8 ft WK
5 40
AK5 (208/3);
AK6 (230/3);
AK7 (460/3);
AK8 (575/3)
9, 10, 11, 12 7963 2VP42 1-1/8
30621 2AK124 1 “A-section” 7.6 ft UM
223401 2AK124 1-3/16 “A-section” 7.6 ft VM
13, 14, 15, 16, 17 111681 1VP50 1-1/8
202652 AK124 1 “A-section” 3.8 ft YM
16156 AK124 1-3/16 “A-section” 3.8 ft WM
18, 19, 20, 21, 22 161444 1VP56 1-1/8
202652 AK124 1 “A-section” 3.8 ft YL
16156 AK124 1-3/16 “A-section” 3.8 ft OM
23, 24, 25, 26, 27,
28, 29
111681 1VP50 1-1/8
19111 AK84 1 “A-section” 3.8 ft PM
111862 AK84 1-3/16 “A-section” 3.8 ft QM
30, 31, 32, 33, 34,
35, 36
111681 1VP50 1-1/8
105483 AK69 1 “A-section” 3.8 ft RM
105484 AK71H 1-3/16 “A-section” 3.8 ft SM
7-1/2,
10
41, 42
C-cab only prior
to 7/2012
AK5 (208/3);
AK6 (230/3);
AK7 (460/3);
AK8 (575/3)
13, 14, 15, 16 164294 1VP71 1-3/8 208756 BK105H 1-3/16 BX70 - 92242 XK
17, 18, 19, 20 164294 1VP71 1-3/8 162836 BK90H 1-3/16 BX66 - 92240 YK
21, 22, 23, 24 164294 1VP71 1-3/8 112026 BK75H 1-3/16 BX64 - 114258 ZK
25, 26, 27, 28 164294 1VP71 1-3/8 208791 BK70H 1-3/16 BX63 - 92278 AL
41, 42
C-cab only
beginning 7/2012
13, 14, 15, 16 164294 1VP71 1-3/8 208756 BK105H 1-7/16 BX70 - 92242 AT
17, 18, 19, 20 164294 1VP71 1-3/8 162836 BK90H 1-7/16 BX66 - 92240 AU
21, 22, 23, 24 164294 1VP71 1-3/8 112026 BK75H 1-7/16 BX64 - 114258 AV
25, 26, 27, 28 164294 1VP71 1-3/8 208791 BK70H 1-7/16 BX63 - 92278 AX
41, 42
D-cab only
32” CL
13, 14, 15, 16 164294 1VP71 1-3/8 208756 BK105H 1-7/16 BX88 - 223420 DM
17, 18, 19, 20 164294 1VP71 1-3/8 162836 BK90H 1-7/16 BX86 - 223419 EM
21, 22, 23, 24 164294 1VP71 1-3/8 112026 BK75H 1-7/16 BX83 - 92333 FM
25, 26, 27, 28 164294 1VP71 1-3/8 208791 BK70H 1-7/16 BX83 - 92333 GM
15, 20
43, 44
D-cab only
32” CL
AK5 (208/3);
AK6 (230/3);
AK7 (460/3);
AK8 (575/3)
14, 15, 16, 17 113809 2VP71 1-5/8 89649 2BK100H 1-7/16 (2) BX88 - 223420 HM
18, 19, 20 113809 2VP71 1-5/8 113804 2BK90H 1-7/16 (2) BX86 - 223419 IM
21, 22, 23, 24, 25 113808 2VP75 1-5/8 89648 2BK80H 1-7/16 (2) BX85 - 92317 LM
26, 27, 28, 29, 30 113808 2VP75 1-5/8 110810 2BK70H 1-7/16 (2) BX83 - 92333 JM
Energy Efficient (Premium) Motor Drive Table (cont’d)
