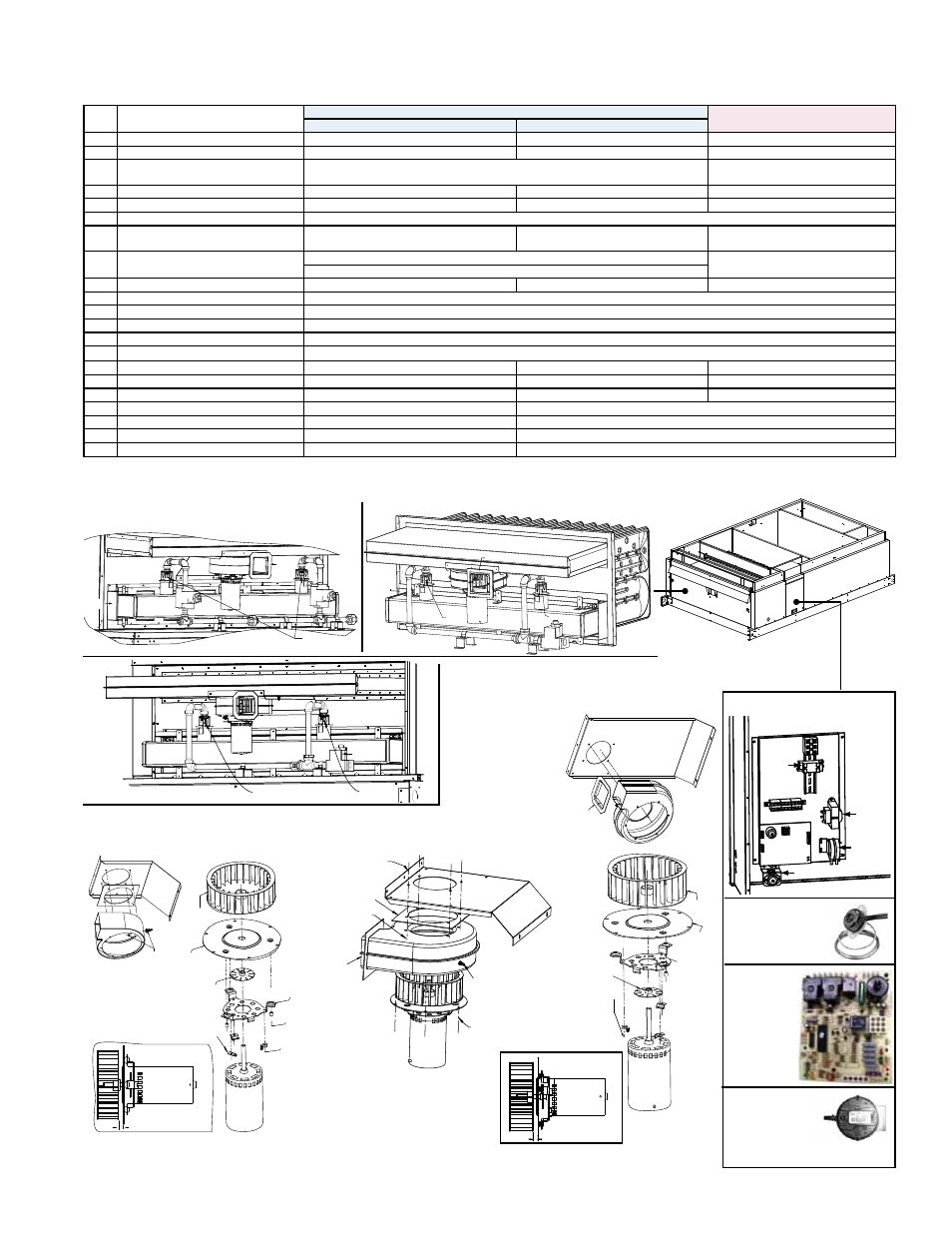

Reznor MAPSIV RECC Parts Manuals - Manual (Page 33)

Form P-MAPS III&IV, PN 262958R5, Page 33
Option JHUP, In-Curb Duct Furnaces - apply to Cabinet B or Cabinet C only
Code Description
JHUP250 (used with Cabinet B with Heat Section Size 250) JHUP300 (used with Cabinet C with
Heat Section Size 700) (Mfgd prior to 4/20/2010) (Mfgd beginning 4/20/2010)
271 Heat Exchanger Assy 409SS - 204518; 316SS - 204523 409SS - 258211; 316SS - 258212 409SS - 257376; 316SS - 257377
272 Collection Box Assy 204533 258823 257359
273 Ht Exch Gasket Kit (Ht Exch Header
& Flue Collection Box Gaskets)
209757 209758
274 Burner Assy (includes 264 A, B, & C) Natural - 256638; Propane - 256667 259758 Natural - 257368
274A Burner Shield Assy 256637 257364
274B Ignitor 209990 (Ignitor Bracket, P/N 209989)
274C Flame Sensor
222771
(Flame Sensor Bracket, P/N 209989)
209973
(Flame Sensor Bracket, P/N 209989)
222771
(Flame Sensor Bracket, P/N 209989)
275 Orifice
Natural - Left 208247; Right 221263
Natural - Left 120158; Right 136202
Propane - Left 196853; Right 196839
276 Gas Valve Natural (2) 196980; Propane (2) 196982 Natural 150839; Propane 150840 Natural Gas 196981
277 Limit Control 148588
278 Circuit Board 195573
279 Pressure Switch 196362
280 Transformer 194536
281 Relay 24V Relay 211411; Relay Socket 211415
282 Venter Assy Support 205747 258198 222123
283 Venter Housing 195634; Gasket 196013 258825; Gasket 254935 257029
284 Venter Discharge Plate 205059 258824 257363
285 Venter Motor & Wheel Assy 209411 (See components below.) 220785 (See components below.)
286 Control Door Panel 216144 257356
287 Heat Section Access Panel 255270 257212
288 A/D Converter 4-stage (sequencer) -- 222755
286
287
265
264
265
266
261
262
275
281
280
279 278
277
JHUP
300
Option JHUP In-Curb
Duct Furnace
Control Panel
275
272
274A 274
276 276 285
283
282 284
271
Burner and Manifold
282
283
284
196829 -
Motor with
Capacitor
(3)194805
Screw,
(3)92851
Isolator,
(3)194803
196006
196035
196829
194910
Capacitor
only,
P/N 195642
272
273
Gasket
196013
Pressure Tap,
P/N 116043
Spacing
7/16” (11.1mm) inside
195666
194910
196035
196006
(3)
194803
(3)
92851
(3)194805
Code 285 - Venter
Motor and Wheel
Assembly
Components
196830
Venter Parts - JHUP 250
prior to 4/20/2010
Venter Parts - JHUP 300
277 - Limit
Control,
P/N 148588
278 -
Circuit
Board,
P/N
195573
279 -
Combustion
Air Pressure
Switch, P/N 196362
Venter Motor
Capacitor,
P/N 195642
(in control
compartment)
275 Right 275
Left
272
271
274
274A
285
283
284
276
282
JHUP 250 prior to 4/20/2010
JHUP 250 beginning 4/20/2010
272
Gasket,
P/n 254935
(3) Nut,
P/N 31522
(4) Screw,
P/N 92851
Pressure Tap
P/N 116043
(3) Screw,
P/N 113275
Venter Motor
and Wheel
Assembly,
CODE 275
(same
components
as JHUP300,
right)
273
Venter Parts - JHUP 250
mfgd beginning 4/20/2010
.438” (11.1mm) inside
Code 285 - Venter Motor
and Wheel Spacing
Gas Heat - applies to Models RDCB and RDDB (cont’d)
