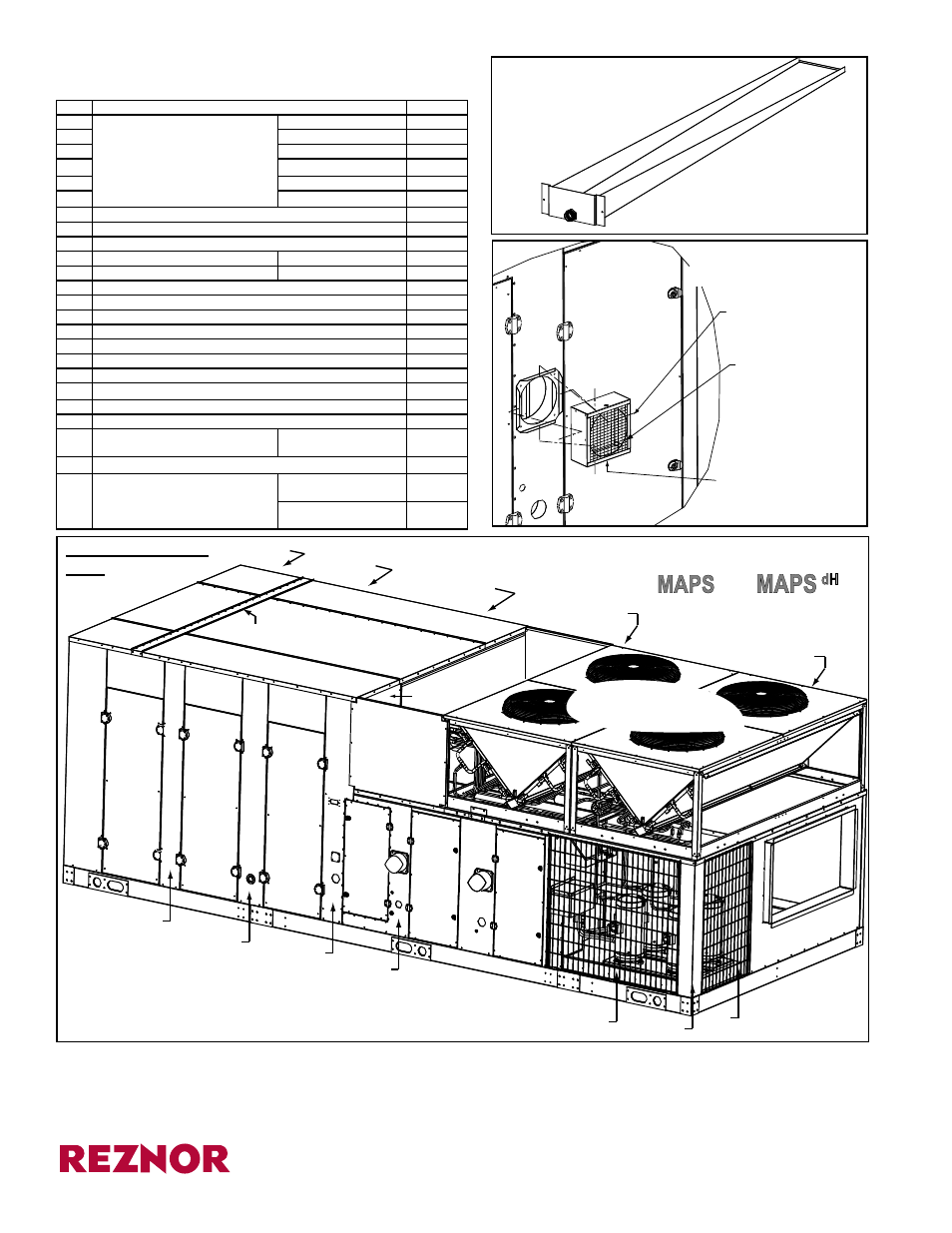

Form P-MAPS III&IV, PN 262958R5, Page 40
375
376
377
379
380
380
383
384
385
386
387
388
389
390
391
392
393
394
395
396
400
402
401
403
404
408
408
408
405
406
407
409
410
411
411
See page 24 for
Condenser Sled P/N’s
Vent Cover Assembly,
P/N 222614
(1 for Sizes 500,
600, 700, 800;
2 for Sizes 1000,
1200, 1400, 1600)
Sheetmetal Screws,
P/N 11813 (4 for each
vent box assembly)
Drain hole MUST be
on the bottom.
Code 413 - Vent Cover
Assembly , P/N 222614
Code 412 - Drain Pan
Assembly, P/N 222500
(removable
for cleaning)
Code Description P/N
390
Top Outer Panels - All Models
and Sizes
Top Rear Right 221819
391 Top Rear Center 221820
392 Top Rear Left 221818
393 Top Front Right 221822
394 Top Front Center 221823
395 Top Front Left 221821
396 Top Splice 221824
397 Inlet Air End Outer Wall - Right 221801
398 Inlet Air End Outer Wall - Left 221802
399 Discharge End Panel Horizontal Discharge 221423
400 Discharge End Panel Vertical Discharge 221422
401 Front Corner Post 221492
402 Compressor Guard End Section 223215
403 Compressor Guard Side Section 223214
404 Rear Corner Outer Cover 221807
405 Filter Post Outer Cover 221806
406 Coil Section Post Outer Cover 221803
407 Control Post Outer Cover 221812
408 Above-the-Door Panels (3) 221810
409 Control Outer Wall 221827
410 Vent Post 221826
411 Condenser Filler Cover (in Opt
AYP2)
Heat Sections 500, 600,
700, 800
(2) 223033
412 Drain Pan Assembly 222500
413 Vent Cover Assembly
Gas Heat Sections 500,
600, 700, 800
222614
Gas Heat Sections
1000, 1200, 1400, 1600 (2) 222614
Cabinet D External
Parts
MAPS ® Logo Labels
®
P/N 234657
® ™
P/N 234659
External Cabinet Parts (cont’d)
D Cabinet (cont’d)
