Form P-MAPS III&IV, PN 262958R5, Page 39
340
341
345
343
350 344
349A
351B
351A
351C
342
352
355
356
357
358
359
353/354
360
361
363
364
340
341
342
351D
340
351F
351E
350
344
344
343
349B
349A
Left
349A
Right 352
357
356
358
359
361
362
360
363
355
353/354
352

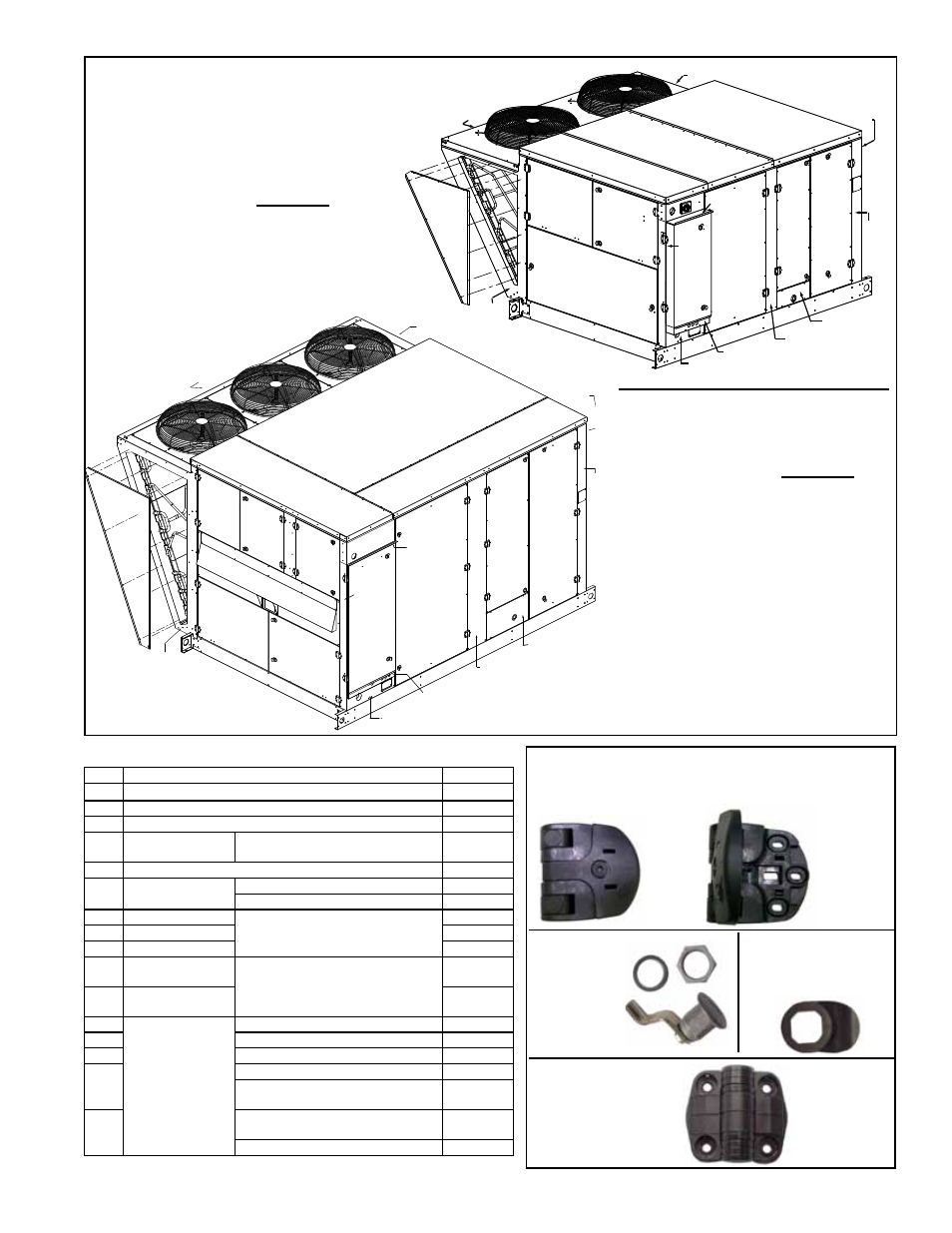

External Cabinet
Parts - Cabinet B
(Electric Heat illustrated)
External Cabinet Parts - Cabinet C
(Gas Heat illustrated)
Cabinet D
A limited number of cabinet
parts are listed. If additional
replacement parts are needed,
contact your Reznor ® Distributor.
Code 381A
- Latch
Assy, P/N
204469
Code 381B - Latch
Pull for Code 381A,
P/N 204470
Code 378 - Door Hinge/Handle, P/N 222433,
allows doors to be opened from either side.
Each door requires four.
Open Closed
Code Description P/N
375 Mixing Box Door Assembly 222430
376 Coil Section Door Assembly 222430
377 Fan/Motor Section Door Assembly 222430
378 Door Handle/
Hinge
Part of Codes 375, 376, & 377 222433
379 Control Door Assembly 222707
380 Heat Section
Door Assembly
Heat Section 500, 600, 700, 800 (1) 222708
Heat Sctns 1000, 1200, 1400, 1600 (2) 222708
381A Door Latch
Part of Codes 379 & 380
222710
381B Door Latch Pull 222711
382 Hinge 158800
383 Vertical Blower
Outer Cover Heat Sections 1000, 1200, 1400,
1600
221825
384 Vertical Blower/
Tubing Cover
221817
385
Non-Control Side
Outer Panels
Mixing Box Corner 221797
386 Coil Section 221796
387 Blower Section 221800
388
Heat Section - 500, 600, 700, 800 221798
Heat Sctns - 1000, 1200, 1400,
1600
221799
389
Corner Wall - Horizontal
Discharge
221426
Outer Wall - Vertical Discharge 221422
Code 382 - Hinge,
P/N 158800
