Form P-MAPS III&IV, PN 262958R5, Page 25
Inlet Air Components
CODE 132 - Inlet Air Filters
Top (Slide edge of top
under cabinet top.)
Right
Side
Filter
Angle
Wing Screw,
P/N 205707,
and Retainer,
P/N 205709
(2 each)
Filter
Clamp
Filter
Bottom
Sheetmetal
Screws,
P/N 11813
Left
Side
Filter
Angle
Center
Support
Filter Spacer
Wing
Screw
Recep-
tacle (2)
Remove and reuse screws
from cabinet to att
ach
this side of hood.
Filter
Filter
Filter
Top, P/N 208628
(Slide edge of top under cabinet top.
)
Top Support,
P/N 208636
Vertical Filter
Supports,
(2) P/N 208632
Sheetmetal
Screws,
P/N 11813 Right Side,
P/N 208629
Left Side,
P/N 208630
Filter Angles
(2) P/N 208635
Filter Spacer
(2) P/N 208633
Filter Clamp
(2) P/N 208634
Bottom, P/N208631
Clip-on
Receptacle
for Wing Screw
(4) P/N 205708
Nylon Retainer for Wing Screw (4) P/N 205709
Wing Head Screw (4) P/N 205707
Top Filter Filler,
P/N 210146
Filter
16x20x1
Filter
16x20x1
Filter
16x20x1
Filter
16x25x1
Filter
16x25x1
Filter
16x25x1
Filter
16x20x1
Filter
16x20x1
Filter
16x20x1
Inlet View

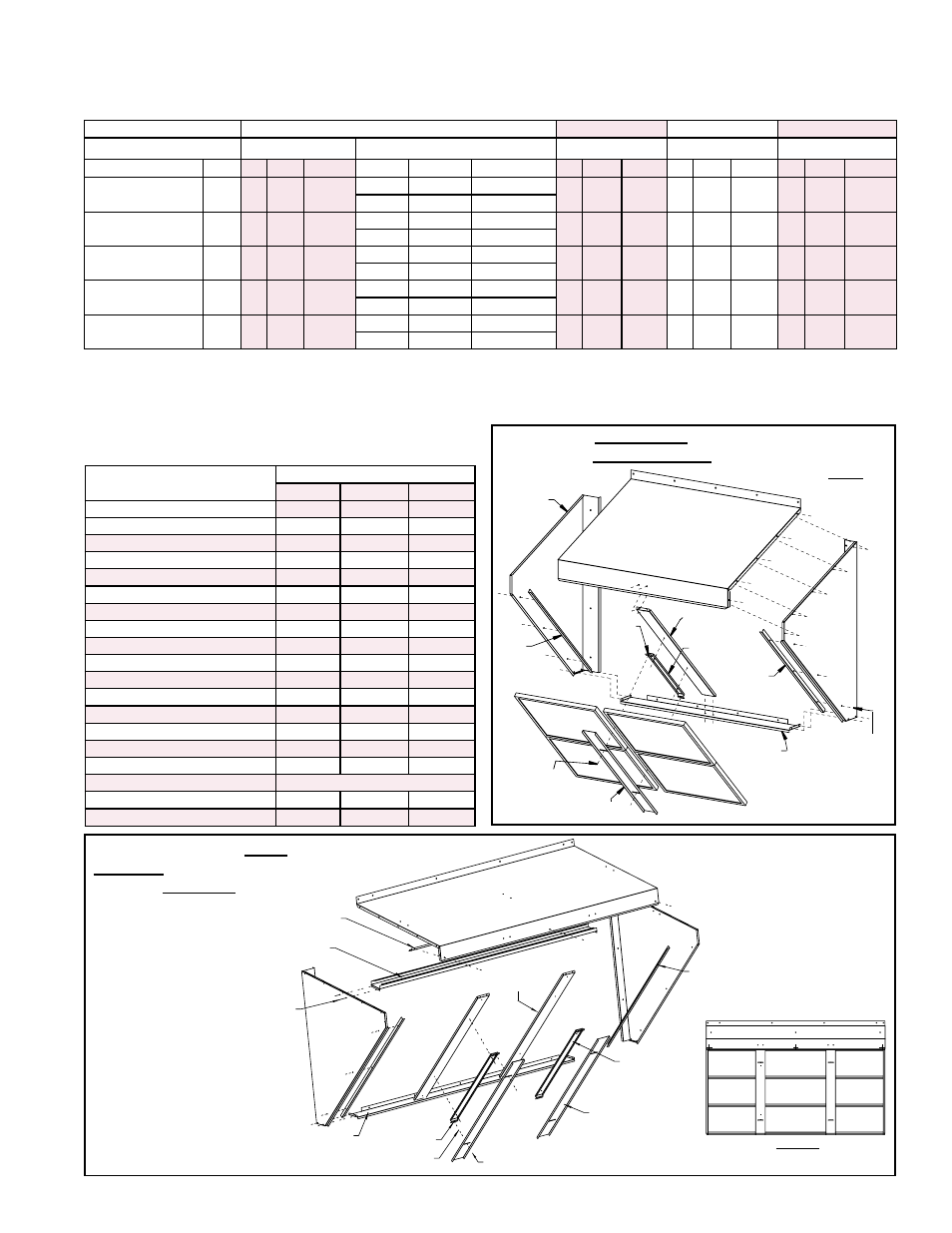

CODE 133 - Outside Air Hood, Option AS16 and Option AS19 by Cabinet Size
Hood components are listed by cabinet size and option code. See pages 3-4 for cross-reference of model/size and cabinet size.
The hood is attached either directly to the MAPS ® unit or, if equipped, to the optional energy recovery module.
Assembly of Option AS16 Outside
Air Hood for Cabinet A and B
Assembly of Option AS16
and AS19 Outside Air
Hood for Cabinet C
NOTE: Painted metal parts may have a protective film.
Remove the film before assembling.
Replacement filters by option code & description. See pages 3-4 for cross-reference by model/size and cabinet size.
Cabinet Size A B C D
Model Sizes 060/078/084/102 090/114/118/120/136/142/144/162 All Cabinet B All Cabinet C All Cabinet D
Filter Description Opt Qty Size P/N Qty Size P/N Qty Size P/N Qty Size P/N Qty Size P/N
2” Pleated
Disposable
AW11 1 20x25
x2
104113
2 16x20x2 104110
4 20x25
x2 104113 6
20x25
x2 104113 --
-- --
2 20x20x2 104111
4” Pleated
Disposable, Merv 8 AW21 1
20x25
x4
205791
2 16x20x4 211127
4 20x25
x4 205791 6
20x25
x4 205791 8
20x24
x4
222480
2 20x20x4 205790
4” Pleated
Disposable, Merv 13 AW24 1
20x25
x4
256663
2 16x20x4 256665
4 20x25
x4 256663 6
20x25
x4 256663 8
20x24
x4
260828
2 20x20x4 256662
2” Permanent
Aluminum
AW9 1 20x25
x2
101623
2 16x20x2 101620
4 20x25
x4 101623 6
20x25
x2 101623 --
-- --
2 20x20x2 101621
4” Permanent
Aluminum
AW20 2 20x25
x2
101623
4 16x20x2 101620
8 20x25
x2 101623 12
20x25
x2 101623 16
20x24
x2
223065
4 20x20x2 101621
Description
Cabinet Size
A B C
Hood Option AS16 AS16 AS16&19
Pkg P/N 205665 205666 208741
Hood Top (1) 204408 (1) 204409 (1) 208628
Hood Right Side (1) 204410 (1) 204410 (1) 208629
Hood Left Side (1) 204411 (1) 204411 (1) 208630
Hood Bottom (1) 204412 (1) 204413 (1) 208631
Filter Angle (2) 204414 (2) 204414 (2) 208635
Filter Spacer (1) 204415 (1) 204416 (2) 208633
Filter Clamp (1) 204417 (1) 204418 (2) 208634
Top Support -- -- (1) 208636
Top Filter Filler -- -- (1) 210146
Vertical Fltr Support -- -- (1) 208632
Hood Cntr Support (1) 204419 (1) 204420 --
Wing Head Screw 12-12-103-11 (2) 205707 (2) 205707 (4) 205707
Clip-On Receptacle 12-11050-27 (2) 221262 (2) 221262 (4) 221262
Nylon Retainer, 12-11064-42 (2) 205709 (2) 205709 (4) 205709
S/M Screw #10-16 x1/2 Ab Stalgd Required qty of P/N 11813
Permanent Alum Fltr 16x20x1 (4) 101607 -- (6) 101607
Permanent Alum Fltr 16x25x1 -- (4) 101609 (3) 101609
NOTE: For
AS19 see
page 26.
