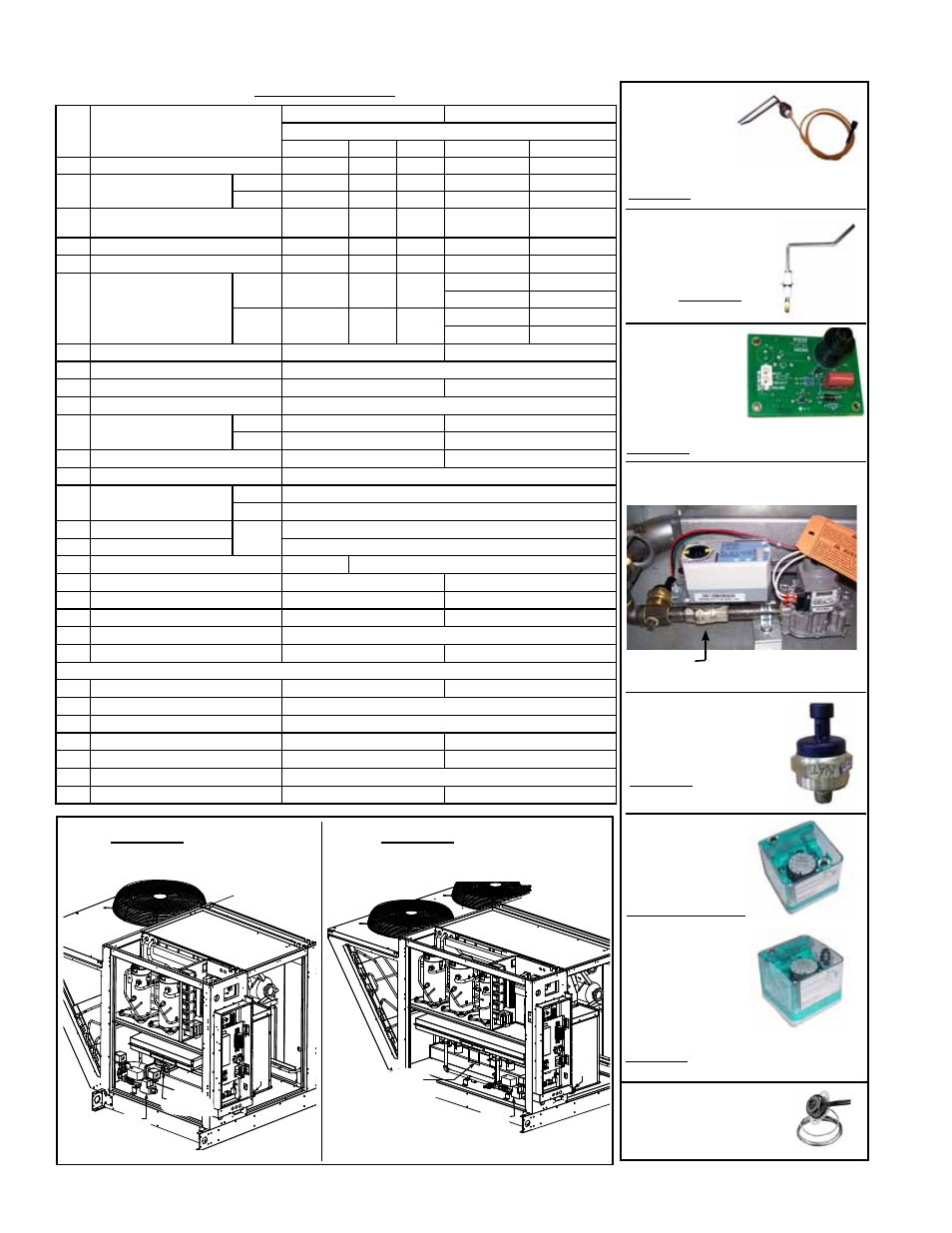

Form P-MAPS III&IV, PN 262958R5, Page 30
Gas Heat - applies to Models RDCB and RDDB
Code Description
Cabinet A Cabinet B
Gas Heat Section Sizes
100 150 200 250 300
211 Flue Collection Box Assy 258820 258821 258822 258823 258824
212 Heat Exchanger Assy
409SS 258205 258207 258209 258211 257376
316SS 258206 258208 258210 258212 257377
213 Gasket Kit (Heat Exchanger Header
& Flue Collection Box Gaskets)
209754 209755 209756 209757 209758
214 Burner Shield 258199 258200 258201 255672 257364
215 Burner Assy (includes 208 & 209) 258202 258203 258204 255673 257368
216 Burner Orifice
Natural
Gas
205430 131581 136202
Left-208247 Left-120158
Right-221263 Right-136202
Propane 120141 196898 196900
Left-196853 Left-205720
Right-196839 Right-120153
217 Burner Orifice Locknut 165702 (2)165702
218 Ignitor 209339
219 Flame Sensor 222771 209973
220 Ignition Board (on the burner) 257975
221 Gas Valve
Natural 260604 150839
Propane 260606 150840
222 Ball Valve 255786 258321
223 Ball Valve Actuator 222862
224 Transducer
Natural 257001
Propane 258725
225 Low Gas Pressure Switch Option
BP4
204375
226 High Gas Pressure Switch 204297
227 High Temperature Limit 258855, 22” 148588, 60”
228 Venter Assembly Support 258197 258198
229 Venter Housing 205920 258825
230 Venter Housing Gasket 196012 254935
231 Static Pressure Tap 116043
232 Venter Motor & Wheel Assy 258247 220785
Components of Code 232:
232A Venter Wheel 120545 195666
232B Venter Motor Clip (3) 194805
232C Isolator Bushing (3) 194803
232D Venter Motor Plate 194806 194910
232E Fan 195766 196035
232F Venter Mounting Bracket 196006
232G Venter Motor 258314 196829
Gas Heat Components - Cabinets A and B
Code 219 - Flame Sensor,
A Cab - P/N 222771
B Cab - P/N 209973
Code 220 -
Ignition Board
(on the burner),
P/N 257975
Code 221 - Single-
Stage Gas Valve
Codes 222 and 223 - Ball Valve
and Ball Valve Actuator
Code 224 -
Transducer
Code 225 -
Low Gas
Pressure
Switch,
P/N 204375
Code 226 -
High Gas
Pressure
Switch
(manual reset),
P/N 204297
NOTE: Same ignitor is used on
Cabinet C, Code 251, page 32.
NOTE: Sensor is
used on Cabinet C,
Code 252, page 32.
NOTE: Same board is used on
Cabinet C, Code 253, page 32.
NOTE: Same switches are used on
Cabinet C, Codes 259 and 260, page
32.
NOTE: Natural gas
transducer used on
Cabinet C; see Code
256, page 32
Code 227 - High
Temperature Limit,
100 - P/N 258855
150-300 - P/N 148588
210
215
Manifold
Assembly
217
Venter
Assembly
A Cabinet Heat Section
Sizes 100, 150, and 200
B Cabinet Heat Section
Sizes 250 and 300
Manifold
Assembly
210
215
Venter
Assembly
227
222
223
Code 218 -
Ignitor,
P/N 209339
(Bracket, P/N 209989)
(Bracket,
P/N
209989)
