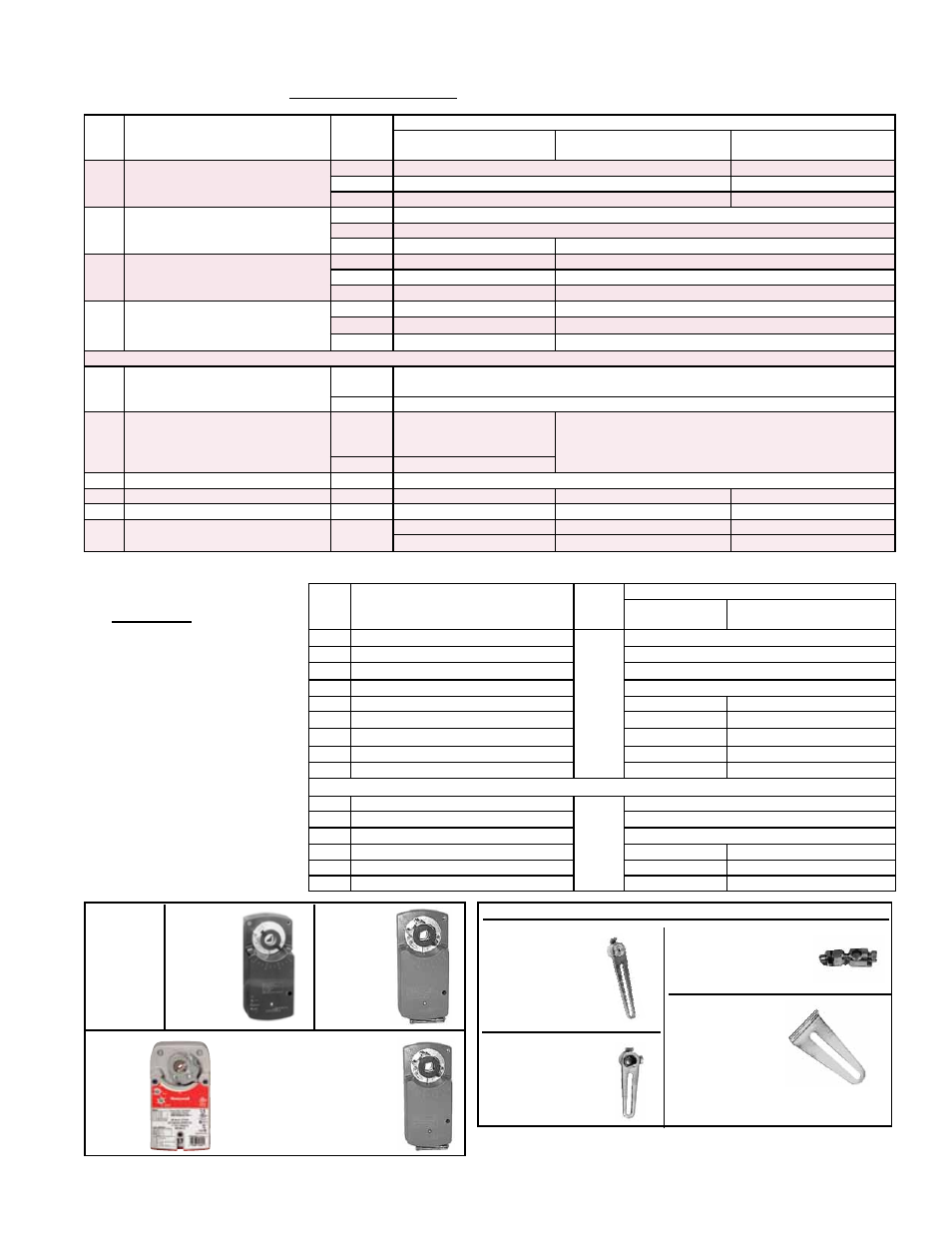

Form P-MAPS III&IV, PN 262958R5, Page 27
CODE Description
Cabinet
Size
By Inlet Air Arrangement Option Code
AR8, AR2D, AR2L* (outside
air on/off damper)
AR2G or AR25 (outside &
return air modulating dmprs)
AR2K* (outside & exhaust/
return 3-position dampers)
135 Outside Air Damper Frame Assembly
(includes Code 135A)
A 205051 257166
B 205052 257165
C 256114 256114
135A Outside Air Damper
A 205066, 24” x 20”
B 205068, 36” X 20”
C 208369 w/extension 254742 208368
136
Return Air Damper Frame Assy
(does not include dampers; see
Code 137)
A -- 205053
B -- 205054
C -- 208110
137 Return Air Damper
A -- 205067, 23.5” X 12.38”
B -- 205069, 38.5” X 12.38”
C -- 208369, 48.875” X 17.25”
Damper Motor and Linkage
138
Damper Motor - On MAPS ® Sizes
A&B, visually check motor being
replaced and order the same motor.
A, B
263940, M/H MS7505A2130/U, on MAPS ® Sizes A&B mfgd beginning 3/12;
211417, J/C M9206-GGB-RN01, on MAPS ® Sizes A&B mfgd prior to 3/12
C 204271, #MS7510A2206
139
Motor Bracket (not illustrated) - If
a new bracket is required for A or
B Size, order bracket for Code 138
motor type being used.
A, B
263765, bracket for M/H
motor; 261240, bracket for
J/C motor
223368
C 261240
140 Damper Arm A, B, C 12635
141 Damper Ball and Socket A, B, C -- 12636 --
142 Crankarm A, B, C -- 194200 --
143 Damper Rod A, B, C
-- 171774, 24” --
-- 194201, 24” --
Damper components are listed by cabinet size and option code. See pages 3-4 for cross-reference by model/size and cabinet size.
Dampers and Damper
Damper Components
for Cabinet D
CODE Description
Cabinet
Size
By Inlet Air Arrangement Option Code
AR8 (outside air
on/off damper)
AR25 (outside & return air
modulating dampers)
145 Outside Air Damper Frame Top
D
(1) 222463
146 Outside Air Damper Frame Bottom (1) 221552
147 Outside Air Damper Frame Sides (2) 221551
148 Outside Air Damper (1) 222456, 72” x 36”
149 Return Air Damper Frame (long sides) -- (2) 221550
150 Return Air Dmpr Frame (non-motor end) -- (1) 221549
151 Return air Damper Frame (motor end) (1) 221561
152 Return Air Damper Frame Clamps -- (3) 222562
153 Return Air Damper -- (1) 222457, 22” x 20”
Damper Motor and Linkage - D Cabinet
154 Motor #MS7510A2206
D
(1) 204271
155 Motor Bracket (not illustrated) (1) 223368
156 Damper Actuator Shaft, 4” (1) 214299
157 Damper Arm -- (2) 66278
158 Ball and Socket -- (2) 12636
159 Damper Rod -- (1) 179176, 33”
CODE 140,
Damper Arm,
P/N 12635
CODE 141 and
158, Ball and
Socket, P/N 12636
Damper Linkage (See application by AR Option above.) CODE
138 or
154 -
Damper
Motor
Motor,
P/N
204271
Motor,
P/N
159892
Effective 3/2011, Motor,
P/N 211417 (right) has
been replaced by P/N
263940. If ordering a field
replacement, select and
order the same motor as
was removed.
CODE 142,
Crankarm,
P/N 194200
Damper Components for Cabinets A, B, and C
CODE 156,
Damper Arm,
P/N 66278
*Damper Options AR2K and AR2L are on an optional energy recovery module; see page 28.
Motor,
P/N
263940
