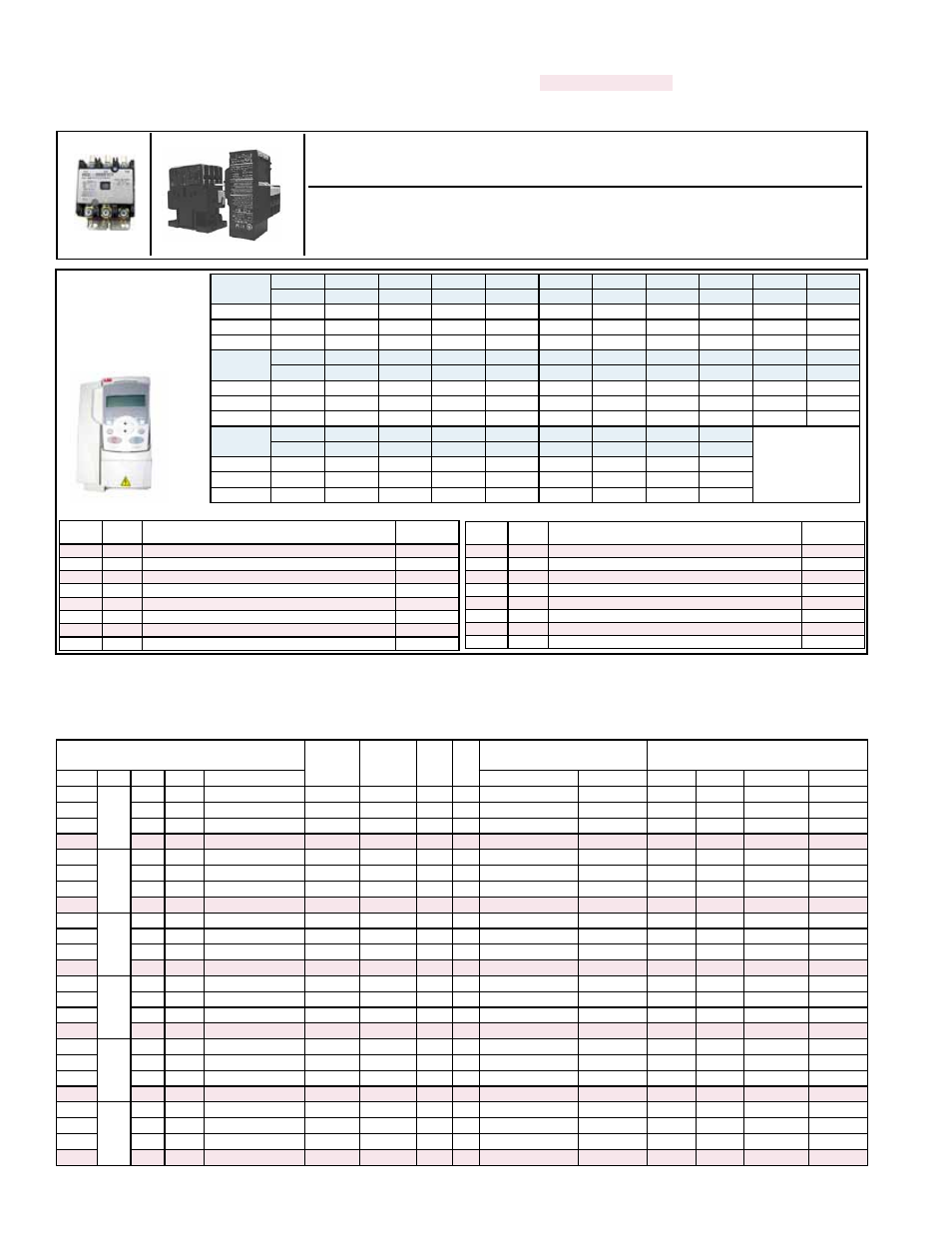

Form P-MAPS III&IV, PN 262958R5, Page 10
Motor, Contactor, Starter, and VFD for Unit Blower, Energy Recovery, or Power Exhaust
CODE 71 - Replacement Contactor (Option AN2, EN2, or SN2)
Motor contactor, P/N 216386 (replaces 119625), 24v coil, Mfr # HCC-3XQ01CY, for the
system is located in the high voltage electrical compartment (See location, page 5 or 6).
CODE 72 A&B - Replacement Starter & Overloads (Opt AN10, EN10, SN10)
Motor starter is located in the high voltage electrical compartment (See P/N’s by motor
type and HP below and location on page 5 or 6.)
CODE 71 CODE 72A and 72B
Starter Overload
Motors are listed by type and horsepower. Highlighted motors do not have internal overload
protection and must be used with the motor starter and overload listed unless the unit is
equipped with a variable frequency drive. .
CODE 70 - Replacement
Motors
Contactor
Motor Options AL, EL, and SL NOTES: Tables below apply to all blower/fan motor options. Option AL is the motor for the MAPS ®
blower. Option EL is the motor for the exhaust fan on an Option ER1 energy recovery module or an Option PE power exhaust.
Option SL is the motor for the supply fan on an Option ER1 energy recovery module. Contactor Options AN2, EN2, & SN2 and
starters Options AN10, EN10 & SN10 are the same for their respective motor option (AL, EL, or SL).
CODE 70 - Motor Frame
Size
Reznor ®
P/N
Volt ph
Code 72A - Starter
(AN10, EN10, SN10)
Code 72B - Starter Overload
Type Opt HP fla Mfr’s No. Mfr’s No. P/N min max GE # P/N
Open
AL4
EL4
1/2 2.5 AO-H880 LA56 159183 208 3 CL00A310T-1 151275 1.80 2.70 RTA1-J 151189
Open 1/2 3.0 AO-H880 LA56 159183 240 3 CL00A310T-1 151275 2.50 4.10 RTA1-K 151190
Open 1/2 1.5 AO-H880 LA56 159183 480 3 CL00A310T-1 151275 1.30 1.90 RTA1-H 151188
Open 1/2 0.9 AOS - H991 H56 202089 575 3 CL00A310T-1 151275 0.65 1.10 RTA1-F 151186
Open
AL5
EL5
3/4 2.9 AO-312P696 D56 36951 208 3 CL00A310T-1 151275 2.50 4.10 RTA1-K 151190
Open 3/4 2.6 AO-312P696 D56 36951 240 3 CL00A310T-1 151275 2.50 4.10 RTA1-K 151190
Open 3/4 1.3 AO-312P696 D56 36951 480 3 CL00A310T-1 151275 1.00 1.50 RTA1-G 151187
Open 3/4 1.0 AOS - H992 H56 202090 575 3 CL00A310T-1 151275 0.65 1.10 RTA1-F 151186
Open
AL6
EL6
SL6
1 4.0 AOS-H882L 56H 36580 208 3 CL00A310T-1 151275 2.50 4.10 RTA1-K 151190
Open 1 3.7 AOS-H882L 56H 36580 240 3 CL00A310T-1 151275 2.50 4.10 RTA1-K 151190
Open 1 2.0 AOS-H882L 56H 36580 480 3 CL00A310T-1 151275 1.80 2.70 RTA1-J 151189
Open 1 1.4 AO-H959 JA56 158175 575 3 CL00A310T-1 151275 1.00 1.50 RTA1-G 151187
Open
AL7
EL7
SL7
1.5 5.6 AO-H884L UA56 115859 208 3 CL00A310T-1 151275 4.00 6.30 RTA1-L 151191
Open 1.5 5.0 AO-H884L UA56 115859 240 3 CL00A310T-1 151275 4.00 6.30 RTA1-L 151191
Open 1.5 2.8 AO-H884L UA56 115859 480 3 CL00A310T-1 151275 2.50 4.10 RTA1-K 151190
Open 1.5 2.0 AOS H960 LA56H 158162 575 3 CL00A310T-1 151275 1.8 2.70 RTA1-J 151189
Open
AL8
EL8
SL8
2 7.0 AO-H886 56HZ 159327 208 3 CL00A310T-1 151275 5.50 8.50 RTA1-M 151192
Open 2 6.6 AO-H886 56HZ 159327 240 3 CL00A310T-1 151275 5.50 8.50 RTA1-M 151192
Open 2 3.5 AO-H886 56HZ 159327 480 3 CL00A310T-1 151275 2.50 4.10 RTA1-K 151190
Open 2 2.6 H965V1 L56 158176 575 3 CL00A310T-1 151275 1.80 2.70 RTA1-J 151189
Open
AL9
EL9
SL9
3 9.0 AO-H845 P56HZ 159185 208 3 CL00A310T-1 151275 8.00 12.00 RTA1-N 151193
Open 3 8.6 AO-H845 P56HZ 159185 240 3 CL00A310T-1 151275 8.00 12.00 RTA1-N 151193
Open 3 4.3 AO-H845 P56HZ 159185 480 3 CL00A310T-1 151275 4.00 6.30 RTA1-L 151191
Open 3 3.6 AO-H954 N56HZ 120019 575 3 CL00A310T-1 151275 2.50 4.10 RTA1-K 151190
CODE 73 - Variable
Frequency Drive
(Options VFD, EFD,
& SFD) - P/N by
voltage and HP
VOLTAGE
OPTION
AL4 AL5 AL6 AL7 AL8 AL9 AL10 AL11 AL12 AL15 AL16
1/2 HP 3/4 HP 1 HP 1.5 HP 2 HP 3 HP 5 HP 7.5 HP 10 HP 15 HP 20 HP
AK5/AK6 221605 221606 221607 221608 221609 221610 221611 221621 221622 221623 221624
AK7 221612 221613 221614 221615 221616 221617 221618 221619 221620 221627 221628
AK8 N/A N/A N/A N/A 221855 221856 221857 221858 221859 221860 N/A
VOLTAGE
OPTION
AL21 AL5 AL23 AL24 AL25 AL26 AL27 AL32 AL33 AL34 AL35
1/2 HP 3/4 HP 1 HP 1.5 HP 2 HP 3 HP 5 HP 7.5 HP 10 HP 15 HP 20 HP
AK5/AK6 221605 221606 221607 221608 221609 221610 221611 221621 221622 221623 221624
AK7 221612 221613 221614 221615 221616 221617 221618 221619 221620 221627 221628
AK8 N/A N/A N/A N/A 221855 221856 221857 221858 221859 221860 N/A
VOLTAGE
OPTION
AL36 AL37 AL38 AL39 AL40 AL41 AL42 AL43 AL44
1 HP 1.5 HP 2 HP 3 HP 5 HP 7.5 HP 10 HP 15 HP 20 HP
AK5/AK6 221607 221608 221609 221610 221611 221621 221622 221623 221624
AK7 221614 221615 221616 221617 221618 221619 221620 221627 221628
AK8 N/A N/A 221855 221856 221857 221858 221859 221860 N/A
VFD P/N
(above) Frame Drive Description
Drive
Reactor P/N
221605 R0 ABB ACS355-03U-02A4-2+J404 1/2 hp 208-240 Volt 3 ph 221598
221606 R0 ABB ACS355-03U-03A5-2+J404 3/4 hp 208-240 Volt 3 ph 221598
221607 R1 ABB ACS355-03U-04A7-2+J404 1 hp 208-240 Volt 3 ph 221594
221608 R1 ABB ACS355-03U-06A7-2+J404 1-1/2 hp 208-240 Volt 3 ph 221595
221609 R1 ABB ACS355-03U-07A5-2+J404 2 hp 208-240 Volt 3 ph 221596
221610 R2 ABB ACS355-03U-09A8-2+J404 3 hp 208-240 Volt 3 ph 221597
221611 R2 ABB ACS355-03U-17A6-2+J404 5 hp 208-240 Volt 3 ph 221599
221612 R0 ABB ACS355-03U-01A2-4+J404 1/2 hp 480 Volt 3 ph 221590
VFD P/N
(above) Frame Drive Description
Drive
Reactor P/N
221613 R0 ABB ACS355-03U-01A9-4+J404 3/4 hp 480 Volt 3 ph 221591
221614 R0 ABB ACS355-03U-02A4-4+J404 1 hp 480 Volt 3 ph 221592
221615 R1 ABB ACS355-03U-03A3-4+J404 1-1/2 hp 480 Volt 3 ph 221593
221616 R1 ABB ACS355-03U-04A1-4+J404 2 hp 480 Volt 3 ph 221585
221617 R1 ABB ACS355-03U-05A6-4+J404 3 hp 480 Volt 3 ph 221586
221618 R1 ABB ACS355-03U-08A8-4+J404 5 hp 480 Volt 3 ph 221587
221619 R3 ABB ACS355-03U-12A5-4+J404 7-1/2 hp 480 Volt 3 ph 221588
221620 R3 ABB ACS355-03U-15A6-4+J404 10 hp 480 Volt 3 ph 221589
Code 73A - Drive Reactor by Drive Listed Above (If drive is not listed in chart below, drive reactor is not required.)
