Reznor MAPSIV RECC Parts Manuals - Manual (Page 24)

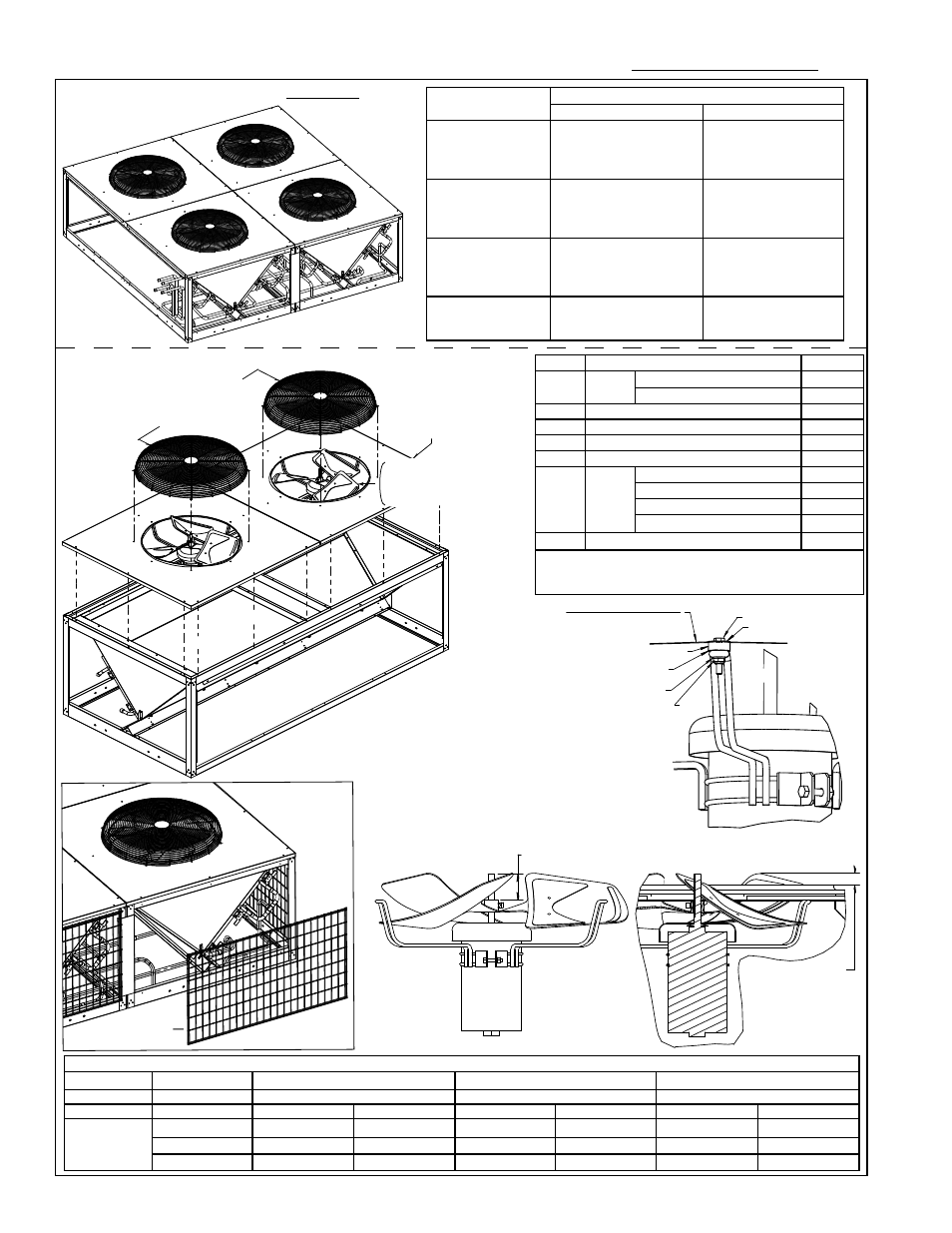

Form P-MAPS III&IV, PN 262958R5, Page 24
Code 125 -
Condenser Top
126 -
Fan
Guard
121 -
Condenser Coil
123 - Fan Blade
124 - Fan/Motor Support
122 - Fan Motor, 1HP
2-1/2” (63.5mm) Fan and Motor Assembly
showing Fan Blade Position
Cross-section of Installed Fan and Motor
Assembly showing Cabinet Top
1.76” (44.7mm)
Top of Fan Blade
to Top of the
Cabinet Top Panel
Condenser Sled
Components
Code Description P/N
122 Motor,
1HP
208-230/460/3 208974
575/3 208975
123 Fan Blade 222465
124 Fan/Motor Support 157107
125 Condenser Section Top 223303
126 Fan Guard, 26” 217135
131
Hail
Guard,
Option
AZ11
*30t with 0 or 1 heat sctn 255665
*30t with 2 heat sections 255666
*40-60t with 0 or 1 ht sctn 255667
*40-60t with 2 heat sctns 255668
131A Hail Guard Section 223216
* See Model/Size by ton on page 23. RDCB/RDDB with
1 heat section are Sizes 400, 500, 600, 700; Sizes 1000,
1200, 1400, 1600 have 2 heat sections.
Code 121 - Condenser Coil (location of P/N’s listed on page 23)
RCB/RDCB 360 480 600 720
RDB/RDDB 418/444/484 538/564/602 658/684/722 804/842
Bank (only one) Left Right Left Right Left Right
P/N,
tonnage,
Circuit
234963, 5t, C 223173, 10t, A 220935, 15t, C 223173, 10t, A 220935, 15t, C 220935, 15t, C 220935, 15t, D
223173, 10t, A 220935, 15t, D -- 220935, 15t, D 223173, 10t, B 223160, 15t, A 223160, 15t, B
220935, 15t, D -- -- -- -- -- --
Condenser Sled Assembly for Cabinet D
Model and Size
Code 130 - Condenser Sled Assy P/N’s
208-230/460/3 575
RCB/RDCB 360
RDB/RDDB 418
RDB/RDDB 444
RDB/RDDB 484
254168 255109
RCB/RDCB 480
RDB/RDDB 538
RDB/RDDB 564
RDB/RDDB 602
222571 222574
RCB/RDCB 600
RDB/RDDB 658
RDB/RDDB 684
RDB/RDDB 722
222572 222575
RCB /RDCB720
RDB/RDDB 804
RDB/RDDB 842
222573 222576
Code 131A
R-410A Cooling and Dehumidifying (Reheat) Components for MAPS ® III Cabinet Size D (cont’d)
Screw, P/N 102033
Fender Washer,
P/N 194156
Condenser Top (D-Cab)
Corner Support (A, B or C Cab)
P/N 207760 - 4 Req’d
Motor
Support
Rubber Washer
(Isolator), P/N 268291
Fender Washer,
P/N 194156
Flat Washer,
P/N 1087
Nut,
P/N 217226
Vibration
Isolation
Hardware on
Fan Support
