Form P-MAPS III&IV, PN 262958R5, Page 34
Code Description
Cabinet D
Heat Section Sizes
500 600 700 800 1000 1200 1400 1600
300 Flue Collection Box with Drain 222398 222399 222400 222401 (2) 222398 (2) 222399 (2) 222400 (2) 222401
301
Heat Exchanger Header
Panel(s)
modulating heat section 221267 221268 221269 221270 221271 221272 221273 221274
single-stage heat section -- -- -- -- 221275 221276 221277 221278
302
Heat Exchanger 3-tube
Module with Gaskets
409SS (5) 222460 (6) 222460 (7) 222460 (8) 222460 (10) 222460 (12) 222460 (14) 222460 (16) 222460
316SS (5) 222461 (6) 222461 (7) 222461 (8) 222461 (10) 222461 (12) 222461 (14) 222461 (16) 222461
302A Heat Exchanger Module Gasket only (2 gaskets per module) 221637
303 Burner Shield with Drain 222394 222395 222396 222397 (2) 222394 (2) 222395 (2) 222396 (2) 222397
304 Burner Shield End Assembly 223124 (2) 223124
305 Burner Assembly only 222758 222759 222760 222761 (2) 222758 (2) 222759 (2) 222760 (2) 222761
306 Burner Slider 221349 221350 221351 221352 (2) 221349 (2) 221350 (2) 221351 (2) 221352
307 Burner Orifice Natural Gas 222883 222884 222885 222886 (2) 222883 (2) 222884 (2) 222885 (2) 222886
308 Ignitor 209339 (2) 209339
309 Flame Sensor 222771 (2) 222771
310 Burner Ignition Board 257975
311 Manual Shutoff Valve 159725 (2) 159725
312 Gas Valve Natural Gas 159743 (2) 159743
313A Ball Valve 222861
313B Ball Valve Actuator 222862
314 Gas Manifold Pressure Switch 211130
315 Low Gas Pressure Switch 204375
316 High Gas Pressure Switch 204297 (2) 204297
317 High Temperature Limit Control with 60” Capillary 148588
318 Venter Housing only 257602 (2) 257602
319 Venter Adapter 223022 (2) 223022
320 Static Pressure Tap 116043 (2) 116043
321 Venter Motor & Wheel
Assy
modulating heat section 222857 222858 222857 222858
322 single-stage heat section -- -- 223387 223388
Components of Venter Motor & Wheel Assy on Sizes 500, 600, 700, 800 and modulating heat section on Sizes 1000, 1200, 1400, and 1600:
321A Venter Wheel only
221172 222822 221172 222822
321B Venter Motor Plate Gasket 222856 222856
321C Venter Motor Plate 223456 223456
321D Venter Motor with Capacitor 257461
Components of Venter Motor & Wheel Assy on single-stage heat section on Sizes 1000, 1200, 1400, and 1600::
322A Venter Wheel only
-- 221172 222822
322B Venter Motor Plate Gasket -- 222856
322C Venter Motor Plate -- 223456
322D Venter Motor with Capacitor -- 222443 (Replacement capacitor only, P/N 259476)
319 -
Venter Adapter
318 -
Venter Housing
317 - Limit
Control 304 - Burner Shield End
321/322 -
Venter Motor
& Wheel Assy
1st Heat
Section
2nd Heat
Section
Manifold
Location

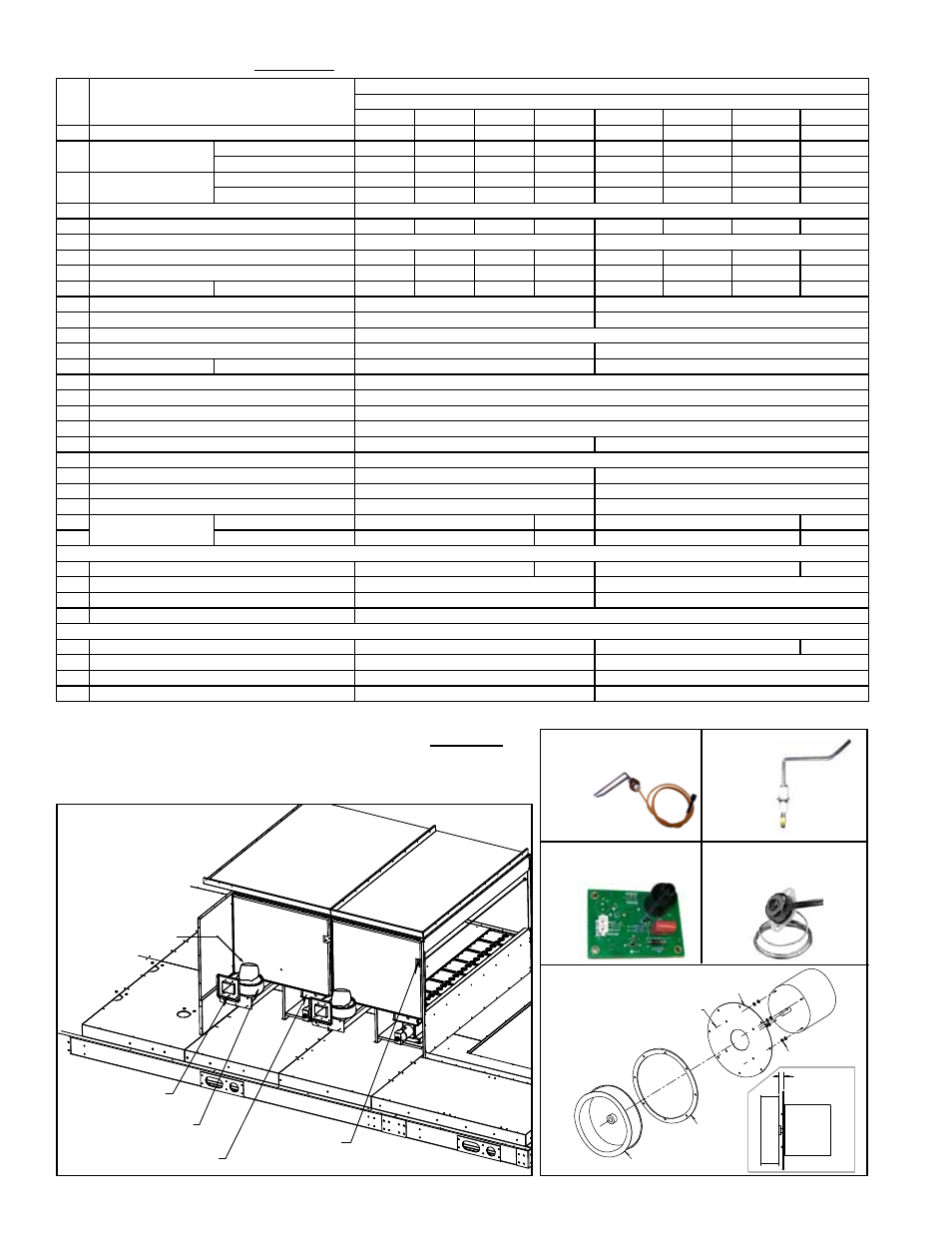

Gas Heat Component Locations and Illustrations - Cabinet D
Cabinet D Gas Heat Section control boards are in the gas heat sections, but the
components are identified on pages 6 and 7 with other electrical components.
Illustrations are on pages 6-9.
Gas Heat Components - Cabinet D
.501” (12.7mm)
from motor
plate to wheel
321A
322A
321B
322B
321D
322D
321D
322D
321C; 322C
(8) Spacer,
P/N 223662
(4) Nut,
P/N 221179
Two Heat Sections
(Sizes 1000, 1200,
1400, 1600)
Code 308 - Ignitor,
P/N 209339
Code 309 -
Flame
Sensor,
P/N
222771
Code 310 - Ignition
Board, P/N 257975
Code 317 - Limit
Control, P/N 148588
Codes 321/322 -
Venter Motor &
Wheel
Assembly
Bracket,
P/N 209989
Bracket,
P/N
209989
