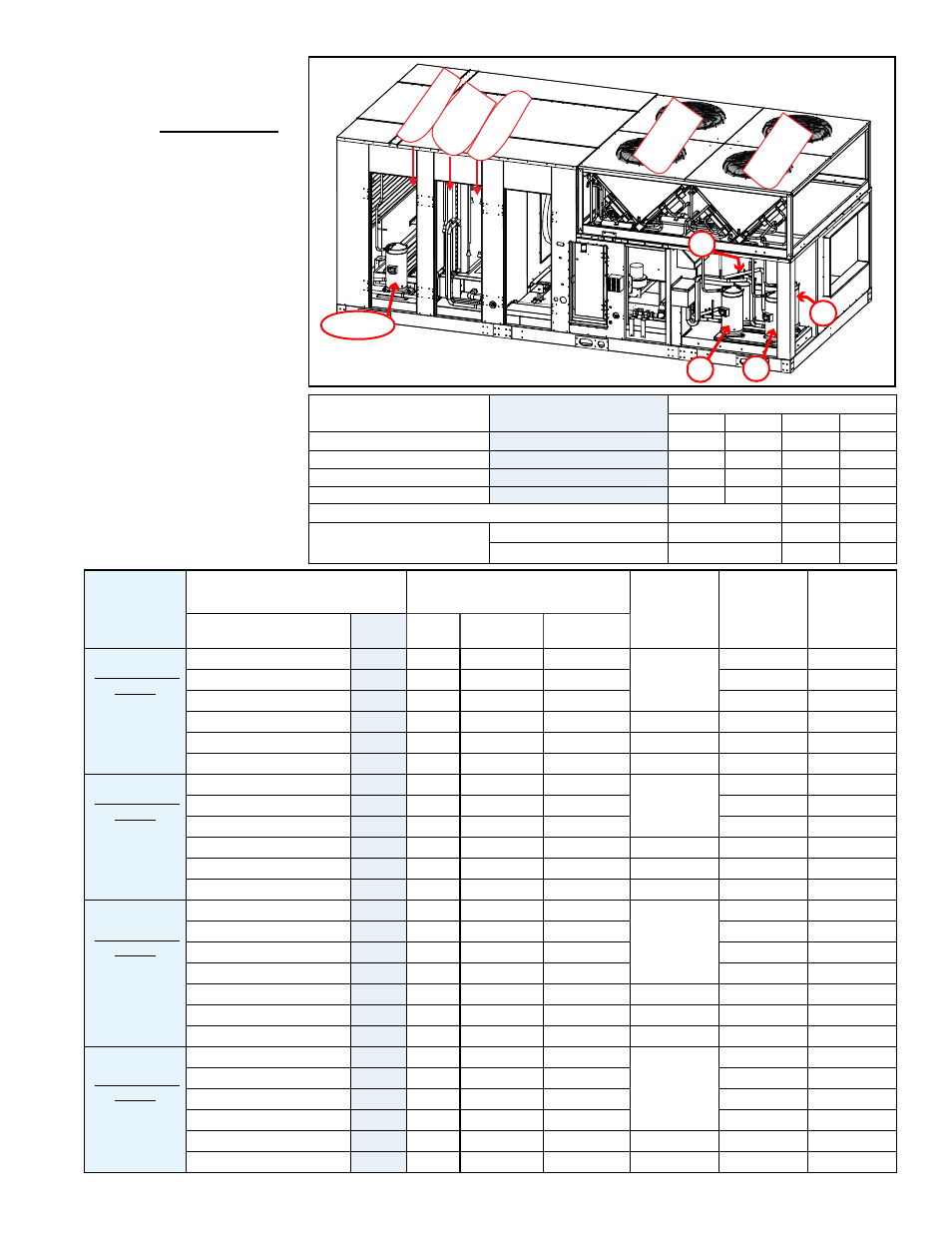

Form P-MAPS III&IV, PN 262958R5, Page 23
R-410A Cooling and
Dehumidifying (Reheat)
Components for
MAPS ® III Cabinet Size D
See illustrations top of
page 18.
MAPS ® III
Cabinet D
Models
Code 110 - Compressor by
Circuit (See P/N listed above.)
Code 112 - Thermostatic
Expansion Valve by Circuit
Code 120 -
Evaporator
Coil
Code 121 -
Condenser
Coil by
Circuit
Code 113 -
Filter Drier
by Circuit
Circuit Tonnage P/N Sporlan No.
Connection
Sizes
30 ton Cooling
Models
RCB/RDCB 360
RDB/RDDB 418
RDB/RDDB 444
RDB/RDDB 484
A 10 220556 BBIZE-8-GA 5/8x7/8x1/4
223212
223173 221009
C 5 234987 BBIZE-4-GA 1/2x7/8x1/4 234963 177379
D 15 220558 BBIZE-15-GA 7/8x1-1/8x1/4 220935 221010
DH or E (RDB/RDDB 418) 5 234987 BBIZE-4-GA 1/2x7/8x1/4 235118 235117 177379
DH or E (RDB/RDDB 444) 7 220555 BBIZE-6-GA 5/8x7/8x1/4 235116 235117 216408
DH or E (RDB/RDDB 484) 10 220556 BBIZE-8-GA 5/8x7/8x1/4 220932 220929 221009
40 ton Cooling
Models
RCB/RDCB 480
RDB/RDDB 538
RDB/RDDB 564
RDB/RDDB 602
A 10 220556 BBIZE-8-GA 5/8x7/8x1/4
220930
223173 221009
C 15 220558 BBIZE-15-GA 7/8x1-1/8x1/4 220935 221010
D 15 220558 BBIZE-15-GA 7/8x1-1/8x1/4 220935 221010
DH or E (RDB/RDDB 538) 5 234987 BBIZE-4-GA 1/2x7/8x1/4 235118 235117 177379
DH or E (RDB/RDDB 564) 7 220555 BBIZE-6-GA 5/8x7/8x1/4 235116 235117 216408
DH or E (RDB/RDDB 602) 10 220556 BBIZE-8-GA 5/8x7/8x1/4 220932 220929 221009
50 ton Cooling
Models
RCB/RDCB 600
RDB/RDDB 658
RDB/RDDB 684
RDB/RDDB 722
A 10 220556 BBIZE-8-GA 5/8x7/8x1/4
223350
223173 221009
B 10 220556 BBIZE-8-GA 5/8x7/8x1/4 223173 221009
C 15 220558 BBIZE-15-GA 7/8x1-1/8x1/4 220935 221010
D 15 220558 BBIZE-15-GA 7/8x1-1/8x1/4 220935 221010
DH or E (RDB/RDDB 658) 5 234987 BBIZE-4-GA 1/2x7/8x1/4 235118 235117 177379
DH or E (RDB/RDDB 684) 7 220555 BBIZE-6-GA 5/8x7/8x1/4 235116 235117 216408
DH or E (RDB/RDDB 722) 10 220556 BBIZE-8-GA 5/8x7/8x1/4 220932 220929 221009
60 ton Cooling
Models
RCB/RDCB 720
RDB/RDDB 804
RDB/RDDB 842
A 15 220558 BBIZE-15-GA 7/8x1-1/8x1/4
223350
223160 221010
B 15 220558 BBIZE-15-GA 7/8x1-1/8x1/4 223160 221010
C 15 220558 BBIZE-15-GA 7/8x1-1/8x1/4 220935 221010
D 15 220558 BBIZE-15-GA 7/8x1-1/8x1/4 220935 221010
DH or E (RDB/RDDB 804) 7 220555 BBIZE-6-GA 5/8x7/8x1/4 235116 235117 216408
DH or E (RDB/RDDB 842) 10 220556 BBIZE-8-GA 5/8x7/8x1/4 220932 220929 221009
Compressor Model
ARI Tonnage (Use to identify
compressor below.)
Code 110 - Compressor P/N
208V 230V 460V 575V
ZP57K3E 5 216686 216686 216687 216688
ZP83KCE 7 216689 216689 216690 216691
ZP120KCE 10 216695 216695 216696 216697
ZP182KCE 15 216454 216454 216455 216456
Code 111 - Wiring Harness (1 per compressor) 223028 223029 223030
Code 117 - Crankcase Heater
(1 per compressor)
5 ton compressor 216398 216400 216401
7, 10, 15 ton compressors 216402 216404 216405
Reheat compressor in
Models RDB and RDDB
A C
B
DH or E
D
Condenser
Bank B & C
Condenser
Bank
A & D Evaporator
Coil
DH Evap Coil
Reheat Coil
Compressors are
identified by Circuit.
