Form P-MAPS III&IV, PN 262958R5, Page 29
NOTE: Replacement parts information for these options is incomplete. If replacement parts not listed are required,
contact your Reznor ® Distributor or the factory service department. Be prepared to provide complete Model No.,
Serial No., Option Code, and rating plate information.
Code 191 - Energy Recovery Module Components - Cabinets A, B, and C with Option ER 11,
20, 28, 36, 46, and 62 - for energy recovery module prior to 3/2011
Economizer modules are listed by cabinet size and option code. See pages 3-4 for cross-reference of model/size and cabinet size.
Power Exhaust (Option PE) Components
Power exhaust components are listed by cabinet size and option code. See pages 3-4 for cross-reference of model/size and cabinet
size. If replacement parts not listed here are required for a power exhaust module, contact your Reznor ® Representative or the factory.
Sheetmetal
Screws,
P/N 11813
200
205
201
202
204
207
203
208

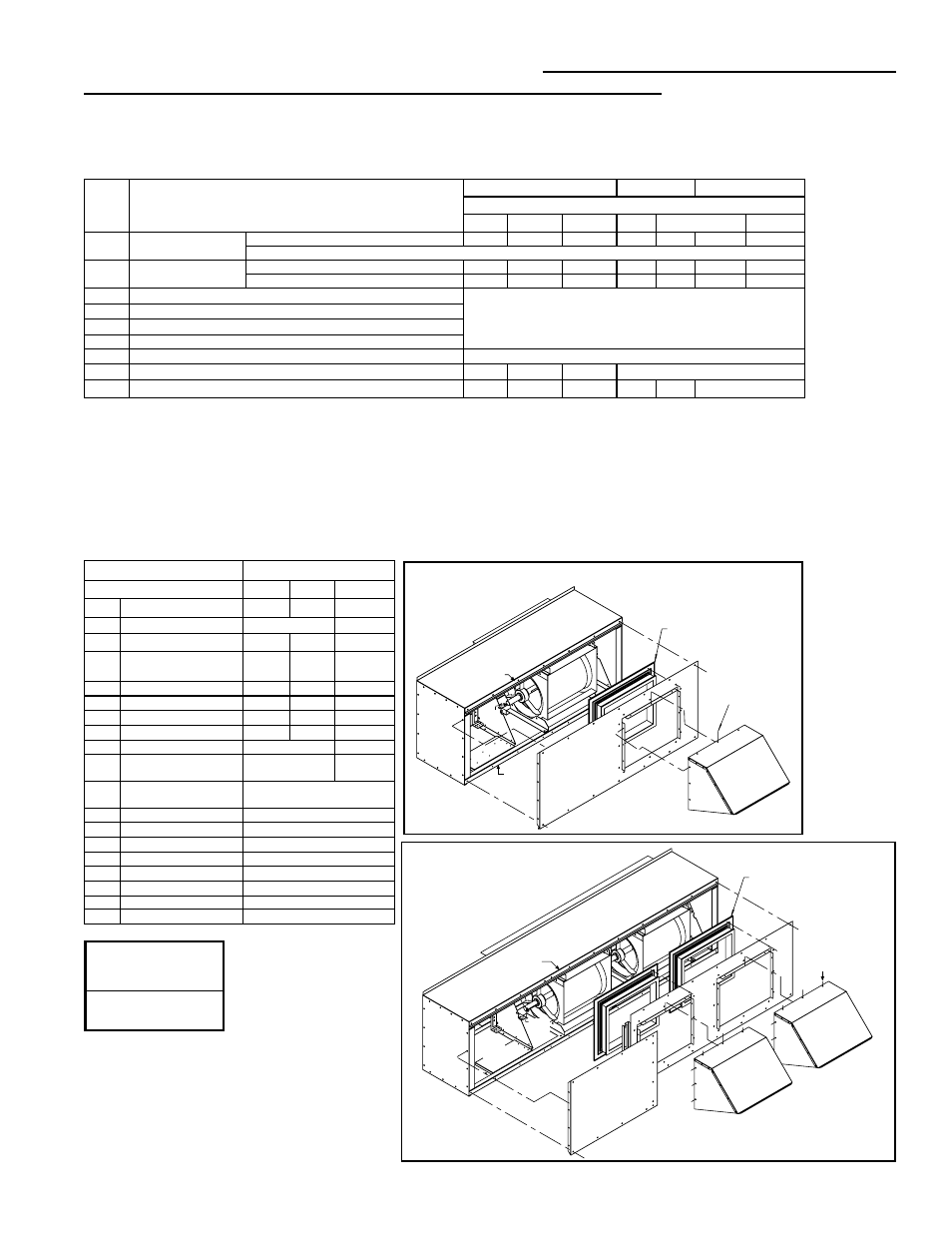

Power Exhaust Components for Cabinet A or B
CODE Description
Cabinet A Cabinet B Cabinet C
Energy Recovery Option
ER11 ER20 ER28 ER36 ER46 ER62
191A Supply Fan Motor
For ERW1 and ERW2 1/2 HP 1HP 1-1/2 HP 2 HP 3 HP 3 HP 5 HP
Contact distributor; see NOTE above.
191B Exhaust Fan Motor
for ERW1 1/2 HP 1HP 1-1/2 HP 2 HP 3 HP 3 HP 5 HP
for ERW2 1/2 HP 1-1/2 HP 3 HP 3 HP 5 HP 5 HP (2) 5 HP
192 Intake Damper (Option ARD3)
Contact distributor; see NOTE above.
193 Low Ambient Froststat (Option BE6)
194 Controller for Stop-Start-Jog (Option BH6)
195 Differential Pressure Gauge (Option BW4)
196 6-Pin Male Plug 1-480704-0 209170
194 15-Pin Female Plug 1-480711-0 -- -- -- 209171
198 “C” Cabinet Adapter for Option AR2A -- -- -- -- -- 216761
NOTE: Above parts are shown for replacement only. Optional energy recovery modules must be ordered with the system. System cabinet with
Option AR2C must be ordered to accommodate the module.
Description Cabinet Size
(Qty not shown is 1.) A B C
Code Option PE1 PE2 PE3
200 Hood Assembly 209224 (2) 209224
201 Power Exhaust Front 209246 209255 209214
202 Power Exhaust Wrapper
(top & sides)
209245 209254 209213
203 Power Exhaust Bottom 209237 209250 209102
204 Top Support Front 209243 209252 209109
205 Backdraft Damper 209219 (2) 209219
206 Motor Cover Plate -- -- 209215
207 Blower, 9x10 209239 (2) 209239
208 Blower Shaft, 1” 209247, 19-5/16” 209248,
41-1/4”
209 Motor Mounting
Assemblyy
209216
(includes Codes 209A-H)
209A Washers 5/16 Sae Flat (10) 1087
209B Nut Hex 5/16 18 Keps (10) 6554
209C Rod Bolt 5/16-18 (2) 12489
209D Cap Screw 5/16x3/4 (6) 16247
209E Screw Cap 5/16x1-1/2 (2) 16248
209F Motor Mounting Plate (1) 12578
209G Left Support (1) 12576
209H Right Support (1) 12577
205
202
204
203
200
200
201
206
Sheetmetal
Screws,
P/N 11813
207
207
208
Power Exhaust
Components for
Cabinet C
Motor, Contactor or
Starter - See pages
10-12.
Drive Parts - See
pages 12-16.
