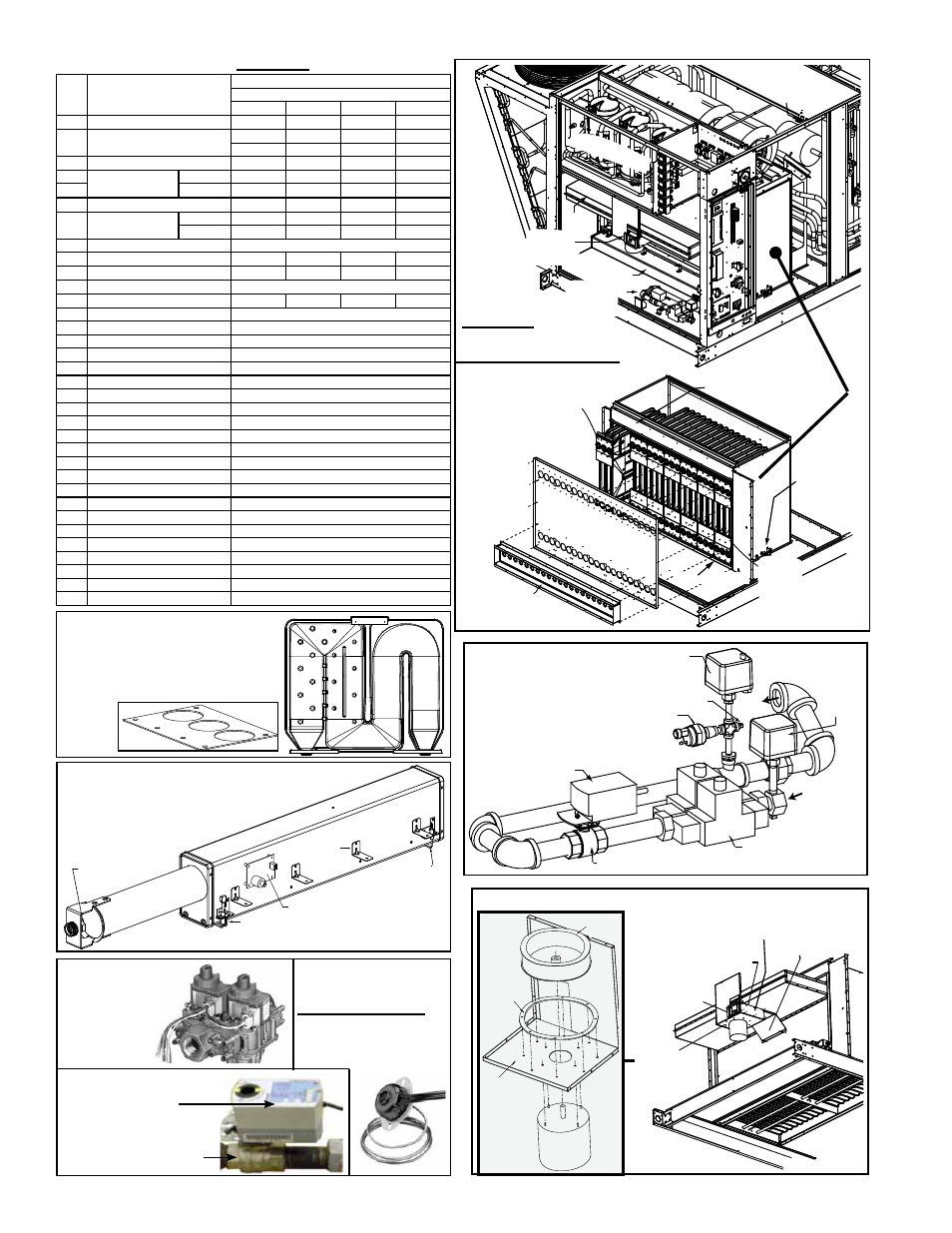

Form P-MAPS III&IV, PN 262958R5, Page 32

239 - Orifice

240 - Orifice

Locknut

241 - Ignitor

(Bracket,

P/N 209989)

243 - Ignition Board

242 -

Flame Sensor

(Bracket,

P/N 209989)

238 - Burner

Support

241

247

Compressors

Blowers

257

Venter

Assy

Manifold

Assy

245 - Heat

Exchanger

Tube Module

(see left)

243B - Header Gasket

(Top & Bottom)

257 - High

Temperature

Limit

246 - Burner

Shield Assy

242 - Header

Panel

243A -

Header

Gasket

(Sides)

244 - Gasket

260 - Optional High Gas

Pressure Switch

259 -

Optional

Low Gas

Pressure

Switch

254 - Dual, Single-

Stage Gas Valve

256 - Transducer

From Gas

Supply

To

Burner

Manifold Pressure Tap

255B - Ball

Valve Actuator

255A - Ball Valve

265 - Venter

Outlet Plate

264 - Venter Side

Support (2)

261 - Venter

Assy Support

266 - Venter

Motor and

Wheel Assy

262 - Venter Housing

(inside, not visible)

Gas Heat Components - Cabinet C

Code Description

Cabinet C

Heat Section Size

400

500

600

700

241 Flue Collection Box Assy

254826

254827

254828

263272

241A Flue Collection Box

Gaskets only

(3)

256623 (3)256624 (6)256625 (2)256626

(1)

259380 (1)259381 (1)259382 (2)259383

242 Ht Exchanger Header Panel

254841

254842

254843

254844

243A Heat Exchanger

Header Gasket

Sides (2)

208139 (2)208139 (2)208139 (2)208139

243B

Top/Btm (2)

256630 (4)256631 (4)256632 (4)256633

244 Gasket (btwn header/ht exch) (1)259380 (1)259381 (1)259382 (2)259386
245
Heat Exchanger

Section w/245A

409SS (4)

256619 (5)256619 (6)256619 (7)256619

316SS (4

)256620 (5)256620 (6)256620 (7)256620

245A Ht Exchr Section Gskt only

(2 gaskets per module)

221637

246 Burner Shield

254768

254769

254770

254771

247 Burner Assembly only

257345

257346

257347

257348

248 Burner Supports

(8)

196598

249 Burner Orifice

257343

257344

222884

222885

250 Burner Orifice Locknut

165702

251 Ignitor

209339 (See Code 218 illustration, page 30.)

252 Flame Sensor

222771 (See Code 219 illustration, page 30.)

253 Ignition Board

257975 (See Code 220 illustration, page 30.)

254 Gas Valve

159743

255A Ball Valve

222861

255B Ball Valve Actuator

222862

256 Transducer

257001 (See Code 224 illustration, page 30.)

257 High Temperature Limit, 60”

148588

258 Reverse Flow Limit, 66”

151790

259 Low Gas Pressure Switch

204375 (See Code 225 illustration, page 30.)

260 High Gas Pressure Switch

204297 (See Code 226 illustration, page 30.)

261 Venter Assembly Support

254830

262 Venter Housing

257602

263 Static Pressure Tap

116043

264 Venter Side Support

(2)

254831

265 Venter Outlet Plate

258253

266 Venter Motor & Wheel Assy

254847 (includes 266A-D)

266A Venter wheel only

221172

266B Venter Motor Plate

254832

266C Venter Motor Plate Gasket

222856

266D Venter Motor w/Capacitor

257461

Cabinet C

Gas Heat Section

245 - Heat Exchanger Tube

Section (3 tubes)

245A Gasket only for Heat

Exchanger Tube Module, P/N

221637

247 - C Cabinet Burner Assembly

(burner only does not include other

parts illustrated)

Manifold

Assembly

Components

- C Cabinet

Venter Assembly Parts - C Cabinet

266D

266C

266A

266B

Code 254 -

Dual, Single-

Stage Gas

Valve,

P/N 159743

Code 255B - Ball

Valve Actuator,

P/N 222862 on

Code 255A - Ball

Valve, P/N 222861

Code 258 - Reverse

Flow Limit, 66”,

P/N 151790

Code 257 - High

Temperature Limit,

60”, P/N 148588
